12. Alignment menu
2. To remove the internal pattern, use the ▲ or ▼ key to select Hide pattern and press ENTER.
Image 12-42

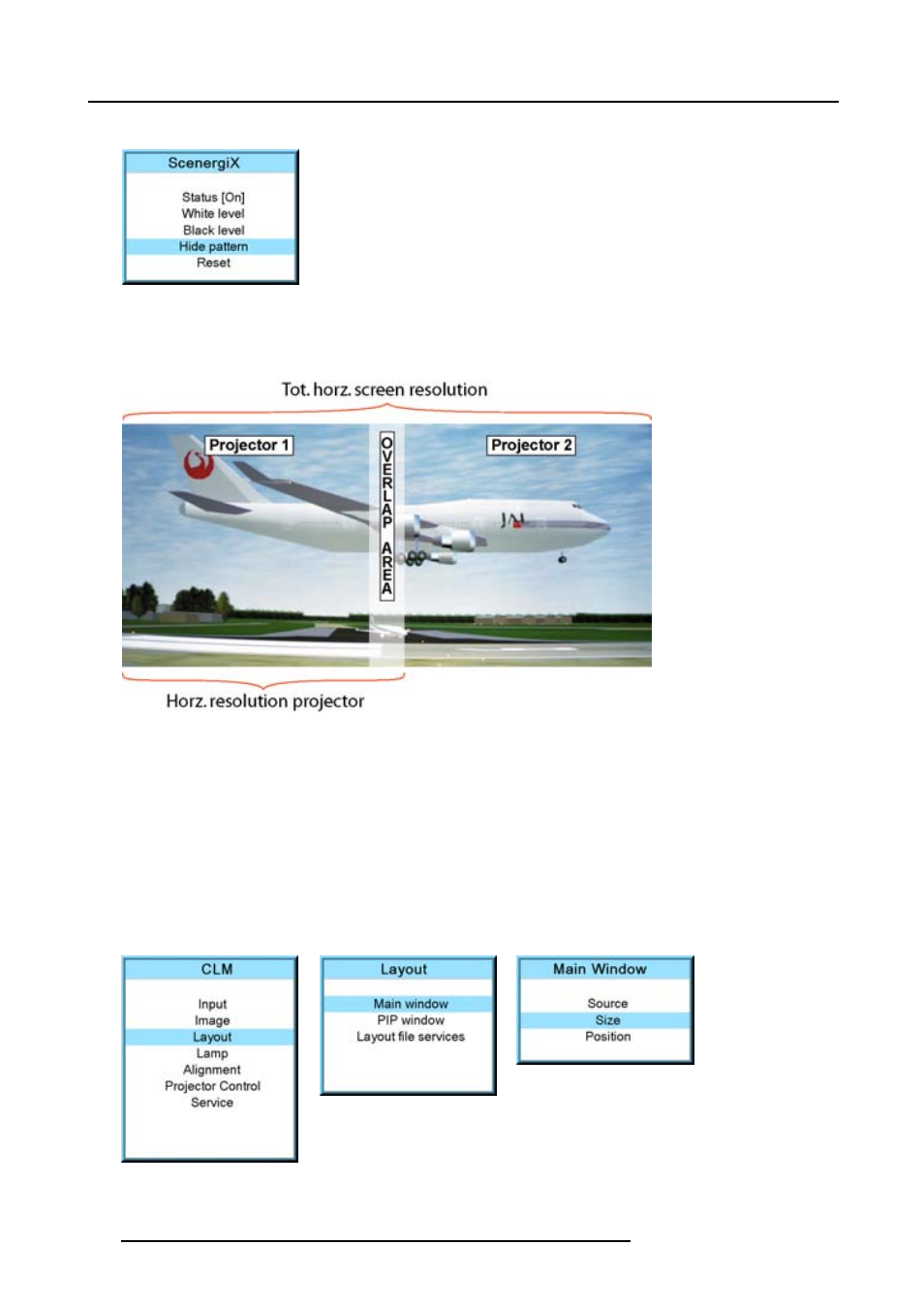

12.11.5 ScenergiX overlap zone (horizontal ScenergiX)
Definitions
Image 12-43
ScenergiX set up
Overlap : number of pixels that overlap
Horizontal resolution of 1 projector
Total horizontal screen resolution : [(horizontal resolution of 1 projector) x 2] minus overlap.
Horizontal Resolution source : number of active pixels of the source.
How to set for the first projector
1. Go to Layout → Main window → Size
2. Enter the value for the Width as follow: Total horizontal screen resolution / 2 - 0.5 x overlap zone.
3. Position remains the same.
Image 12-44
Image 12-45
Image 12-46
