4. Stacking CLM projectors
4. STACKING CLM PROJECTORS
Stacking of CLM projectors is only possible with optional touring kit. See "Mounting optional Carry handle",
page 211 for more information.
Overview
• Stacking CLM projectors
• Aligning stacked CLM projectors
4.1 Stacking CLM projectors
Preparations
Install first a carry handle on the upper projector.
Install at minimum the 3 locking points on the lower projector or install a complete carry handle kit.
How to stack CLM projectors
1. Place the projectors on top of each other. Ensure that all three interlocking pins (A) match with their corresponding interlocking
sockets (B).
Tip:
In case of stacking projectors for a ceiling mount configuration, first turn the projectors upside down before placing the
projectors on top of each other.
B
A

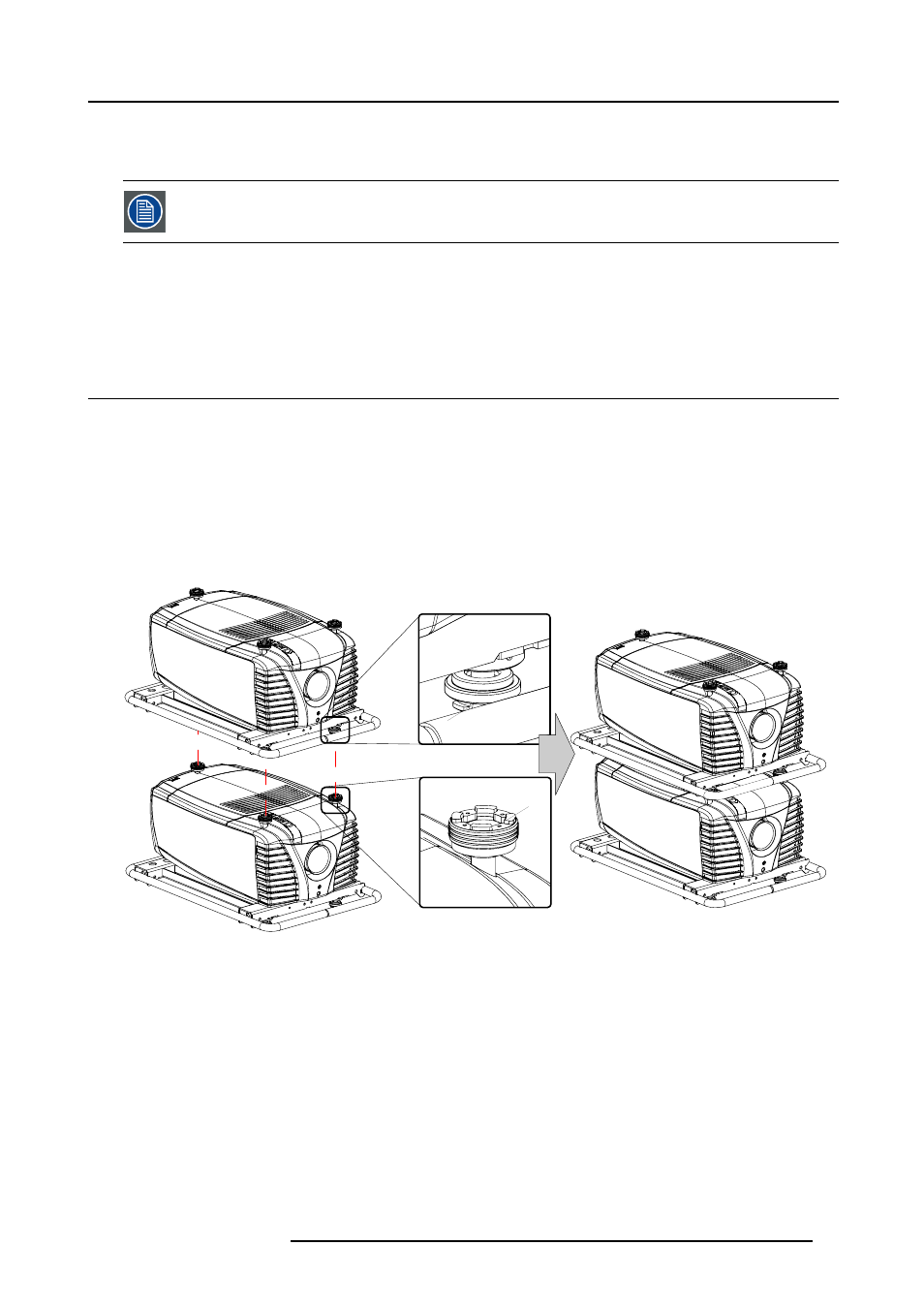

Image 4-1
Stacking projectors
2. Attach the two projectors together by closing all three interlocking adapters as illustrated.
R59770057 CLM HD8 15/03/2010 31
