D. Specifications
• Diagnostic LED’s on front panel:
-
Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
D.3 Specifications CLM HDSDI – SDI input

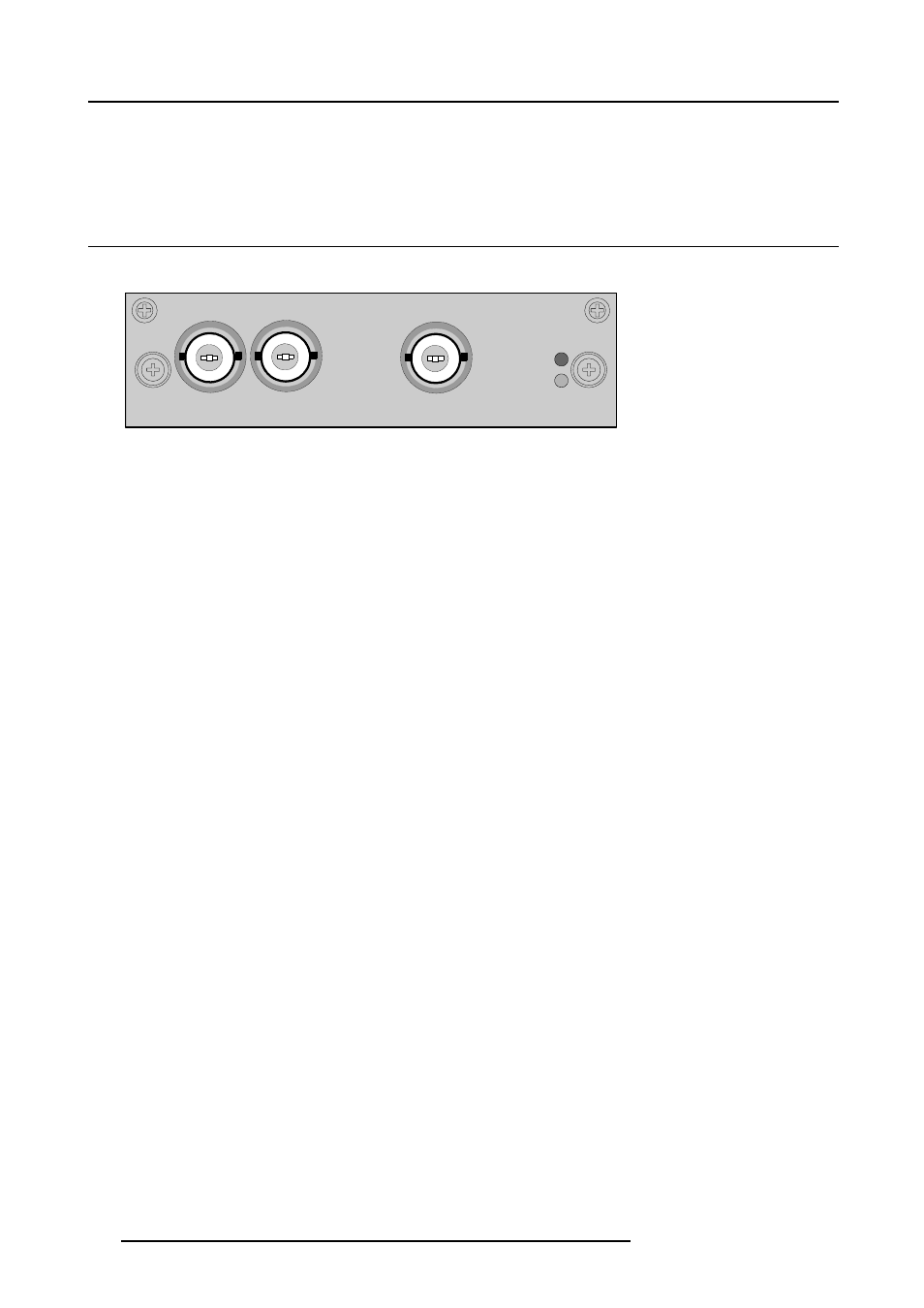

Input front view HDSDI – SDI input
HDSDI - SDI input
Input 1 Input 2 Loop output
Sync OK
Sel
Image D-2
Specifications
• SD SMPTE 259M-C and HD SMPTE 292M input data
• 2 inputs (BNC), 1 active loop-through output (BNC) of selected input
• Automatic selection of active input with manual override
• 10 bit digital output
• Diagnostic LED’s on front panel:
-
Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
• SDI: 270 Mbit/s transmission (SMPTE 259M-C).
• SDI: 525/625 interlaced.
• Coax (75 Ohm).
• Supported HDSDI standards:
-
Progressive:
o 1280x720/60/1:1/ (SMPTE 296M)
o 1280x720/59.94/1:1/ (SMPTE 296M)
o 1920x1080/30/1:1/ (SMPTE 274M)
o 1920x1080/29.97/1:1/ (SMPTE 274M)
o 1920x1080/25/1:1/ (SMPTE 274M)
o 1920x1080/24/1:1/ (SMPTE 274M)
o 1920x1080/23.98/1:1/ (SMPTE 274M)
- Interlaced:
o 1920x1035/60/2:1/ (SMPTE 260M)
o 1920x1035/59.94/2:1/ (SMPTE 260M)
o 1920x1080/60/2:1/ (SMPTE 274M)
o 1920x1080/59.94/2:1/ (SMPTE 274M)
o 1920x1080/50/2:1/ (SMPTE 274M)
o 1920/1080/50/2:1 (1250)/ (SMPTE 295M)
o 1920x1080/24/Segmented/ (SMPTE 274M)
o 1920x1080//23.98/Segmented/ (SMPTE 274M)
