14. Service menu

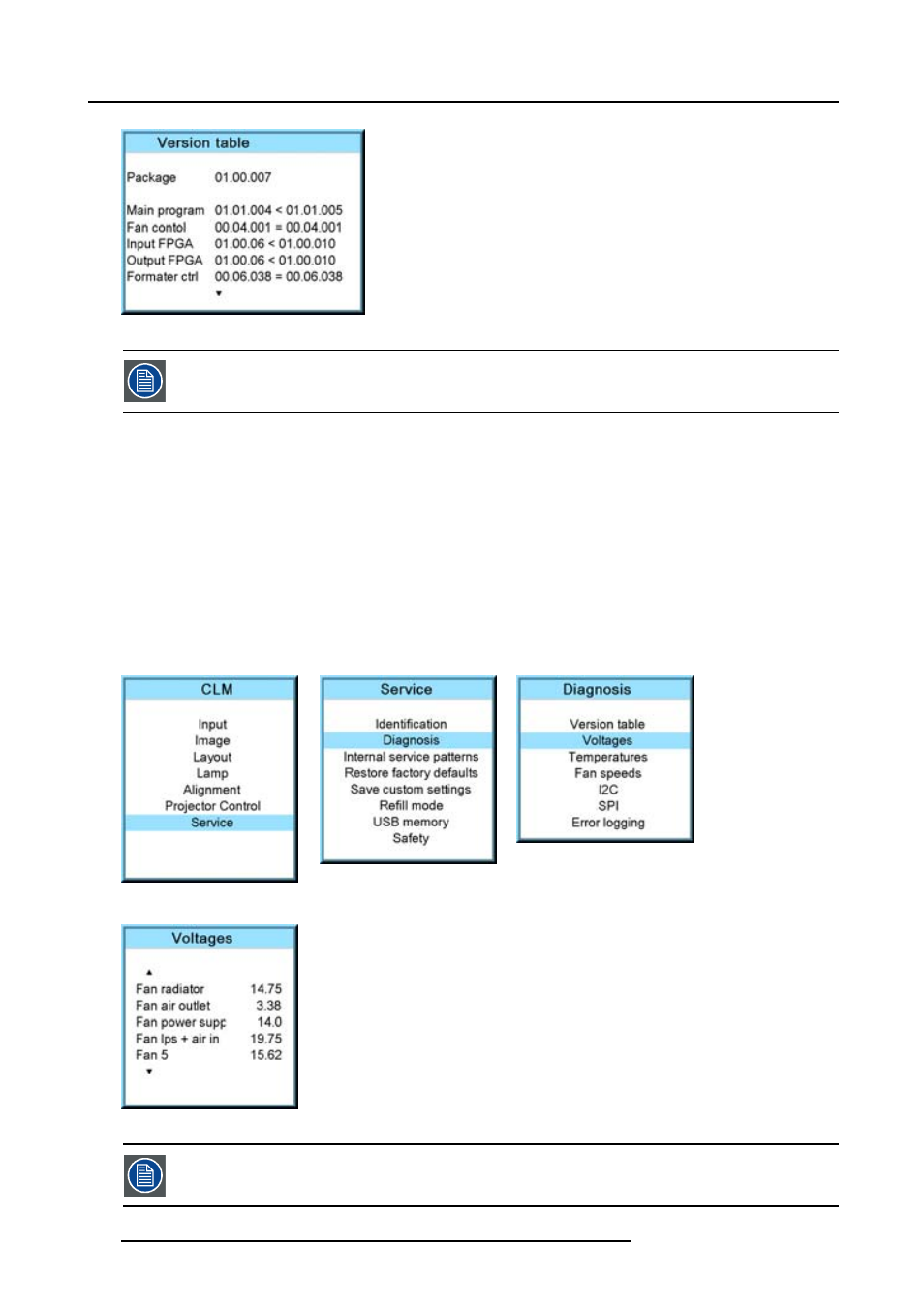

Image 14-11
Use the ▲ or ▼ item in the menu to select the previous or next page with information.
14.3.3 Voltages
How to display an overview?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Service and press ENTER.
The service window opens.
3. Use the ▲ or ▼ key to select Diagnosis and press ENTER.
The diagnosis screen will be displayed.
4. Use the ▲ or ▼ key to select Voltages and press ENTER.
The Voltage overview menu will be displayed.
Image 14-12
Image 14-13
Image 14-14
Image 14-15
Use the ▲ or ▼ item in the menu to select the previous or next page with information.
156 R59770057 CLM HD8 15/03/2010
