10. Layout menu

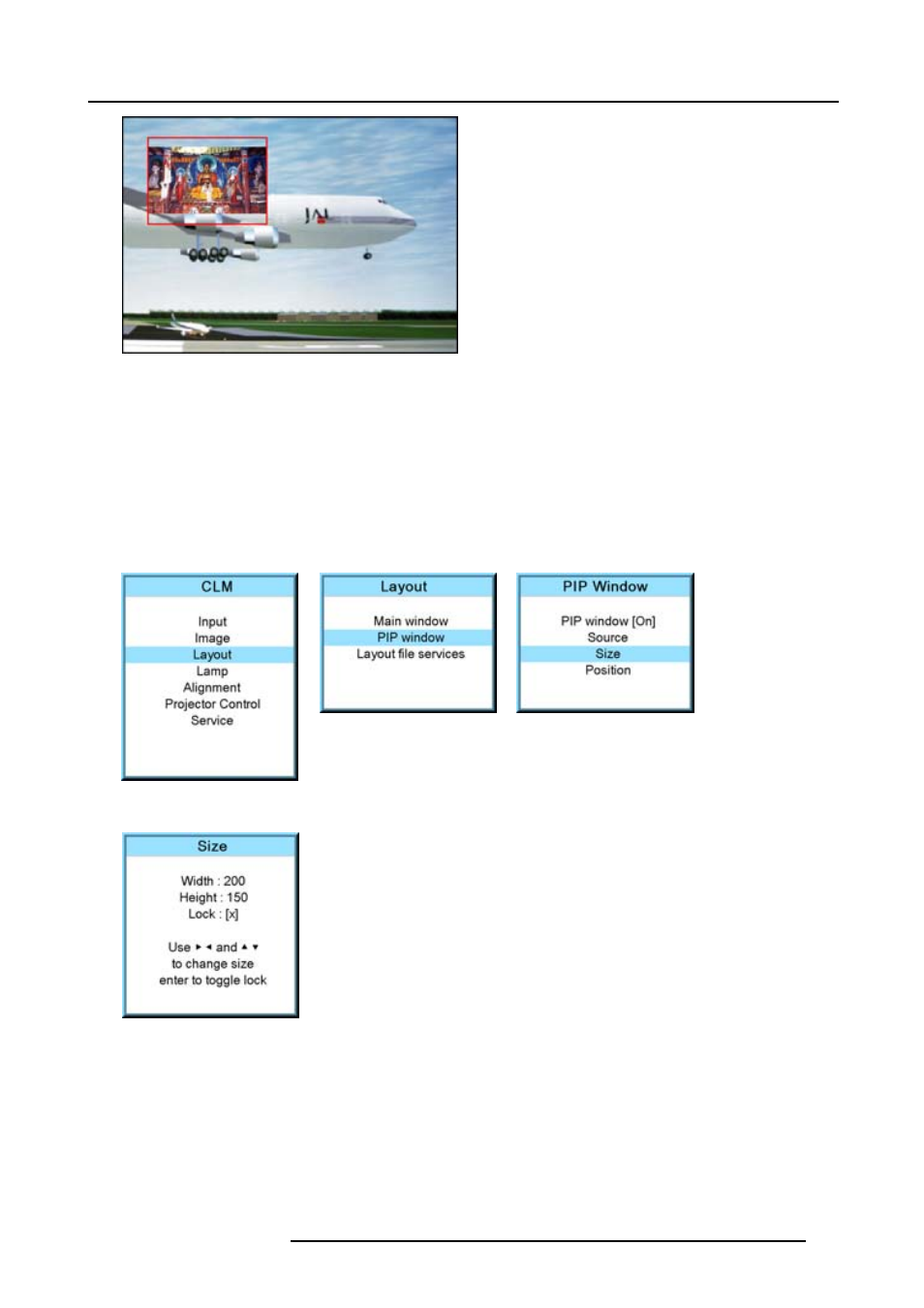

Image 10-33
Size PIP window remark
How to change the size with respect to the aspect ratio?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Window and press ENTER.
3. Use the ▲ or ▼ key to select PIP Window and press ENTER.
The main window opens.
4. Use the ▲ or ▼ key to select Size and press ENTER.
The size adjustment window opens.
Image 10-34
Image 10-35 Image 10-36
5. Toggle with ENTER till Lock is set to [x]].
Image 10-37
[ ] = no lock between height and width.
[x] = width and height are locked.
6. Use the ▲ ▼ or ◄ ►key to adjust the size with respect to the aspect ratio.
When the desired size is reached, press EXIT.
