An269 – Cirrus Logic AN269 User Manual
Page 62
62
AN269REV1
AN269

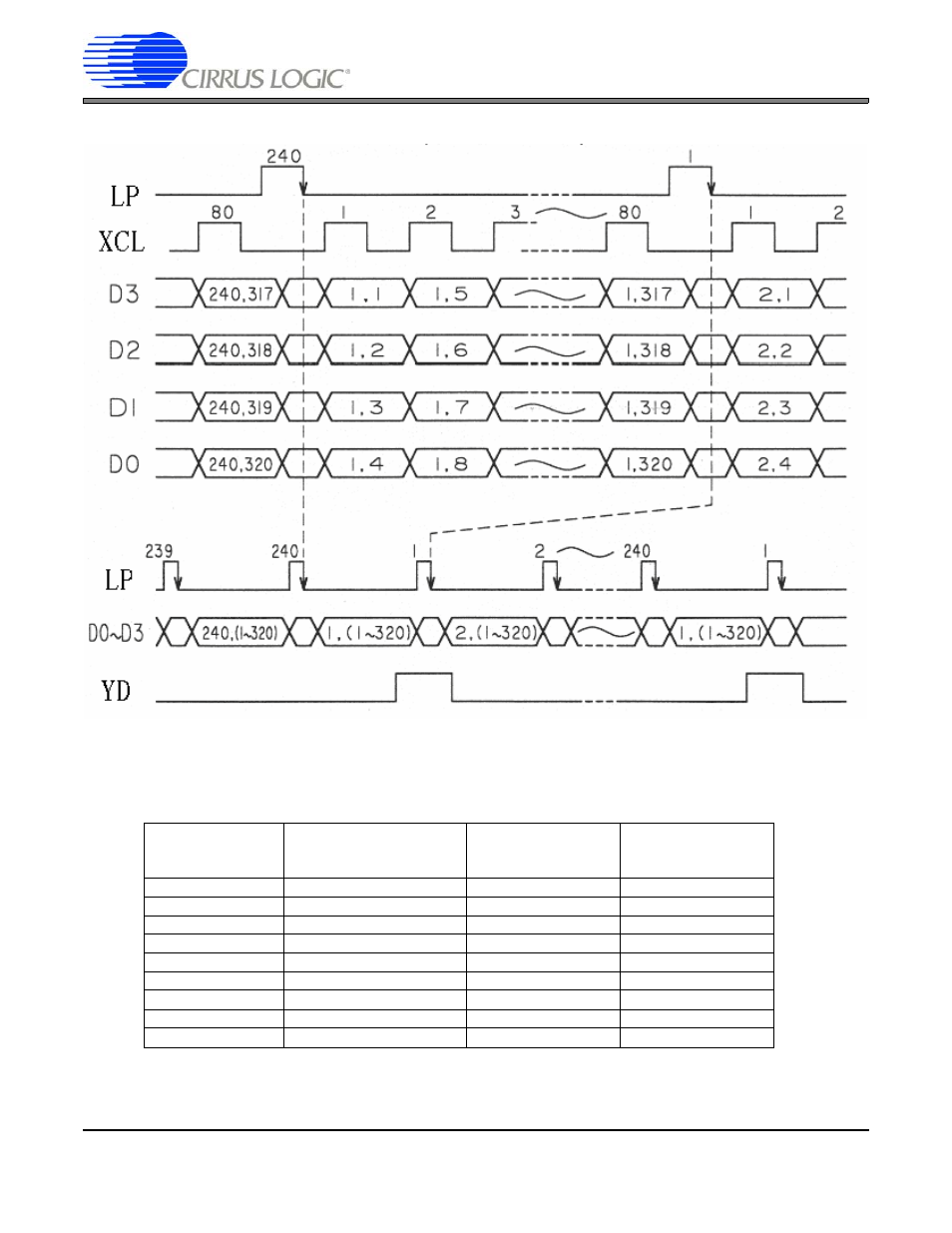

Figure 24. HOSIDEN HLAM6323 Signal Timing in an EP93xx System
(PIXMODE = 0x1401 - 4 Bits per Pixel)
Table 20. EP93xx to HOSIDEN HLAM6323 Connections
EP93XX Pin
Name
EP93xx Raster Signal
Name
STN LCD
Pin Name
HLM6323
Pin Number
VCSYN Frame
signal
YD
1
HSYN
Line signal
LP
11
PCLK CLK XCL 10
P[1] B0 D0 6
P[2] B1 D1 5
P[3] B2 D2 4
P[4] B3 D3 3
BLANK /DOFF
13
P[17] AC
M 7
