- 18 -

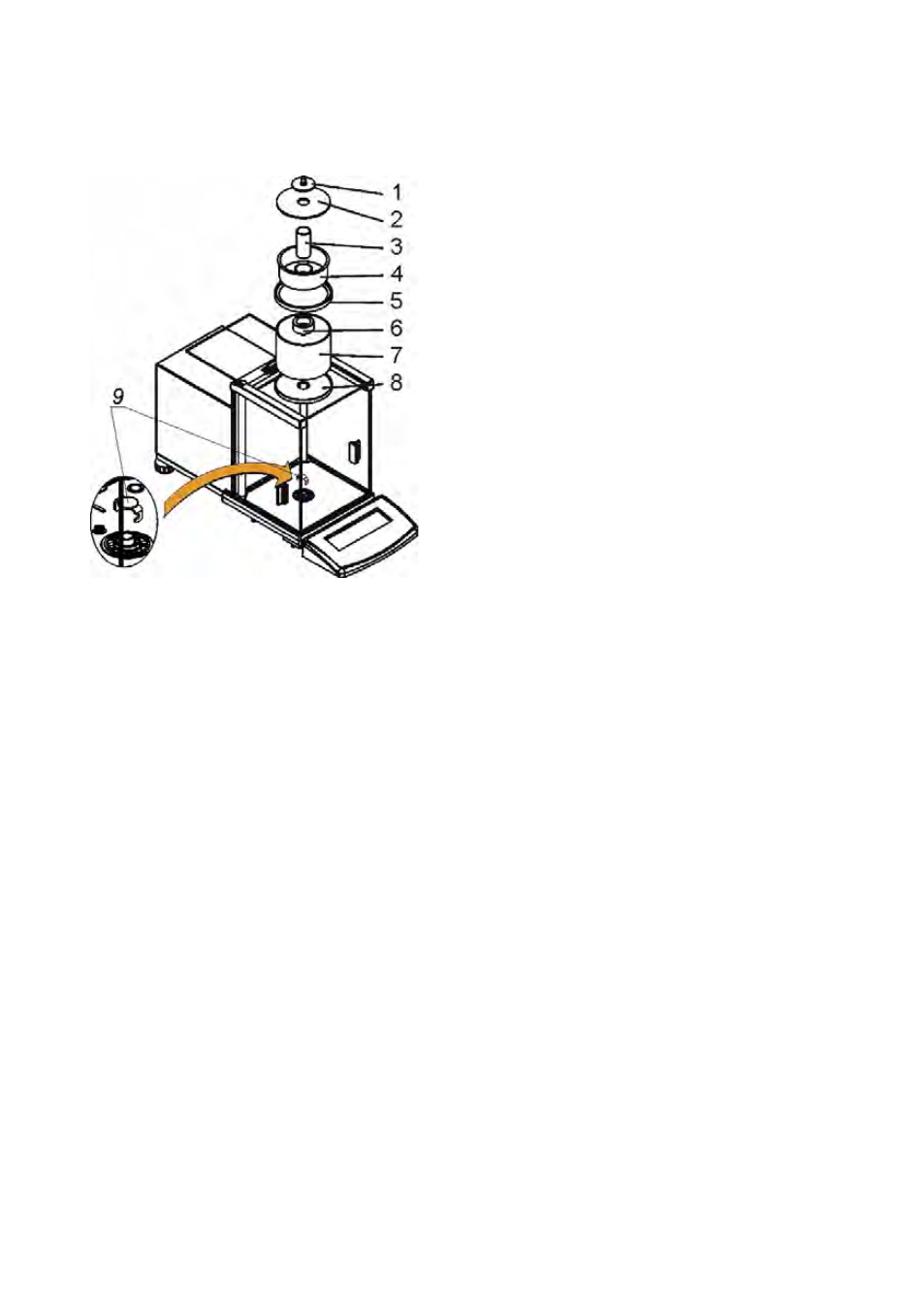

Upon balance installation onto its
workstation Remove the transport
protection (9) – press the safety catch
gently and turn it accordingly to
instruction, next remove the safety catch.
Please retain the safety catch should the
device be transported in the future. Next:
-
open side doors of the weighing
chamber,
-
inside the weighing chamber place
bottom ring (8), next
-
put glass ring (7) onto it,
-
place weighing pan (6) inside the glass
ring, next
-
put top ring (5) onto the glass ring,
-
place evaporation ring (4) onto the top
ring,
-
inside place calibration vessel (3),
-
onto the top ring place glass cover
plate (2), next
-
put glass lid (1) (option).
