- 155 -
for
• Exit the balance manu
CAUTION:

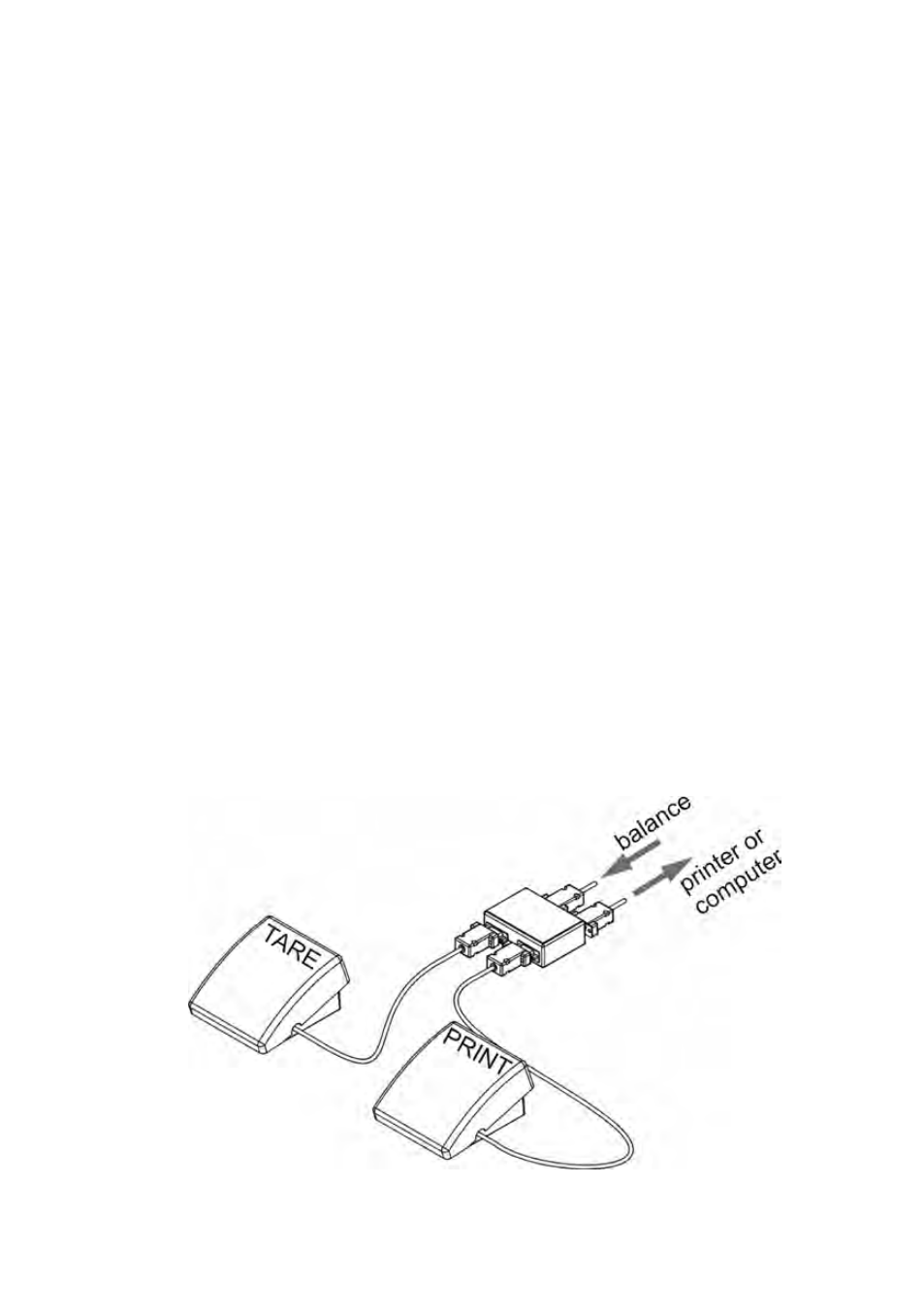

The balance program enables cooperation with one or both buttons. If you
need to connect both external buttons, connect a socket outlet adapter to
COM 2 port, and connect buttons TARE and PRINT to the adapter.
Connect the printer or terminal to COM 1 or to the socket outlet adapter
(determine the PRINTER-BALANCE transfer perametres). Every time you
press TARE and PRINT external button, the balance will react like for
TARE and PRINT buttons on the balance keyboard.
If you need to use only one button, connect it directly to COM 2 port or use
the socket outlet adapter.
CAUTION:
In order to ensure the proper cooperation, you need to remember:
• To connect additional buttons to COM 2 port,
• To connect the buttons to appropriate sockets of the socket outlet
adapter if you are using it (see descriptions on the socket outlet
adapter),
• To activate the buttons in the balance parametres (see description
above),
• To disconnect other external devices (additional display or bar
code reader) on COM2 port (for these devices it should be
),
• To set up the port for on value if the printer
is connected to the socket outlet adapter (CPU socket).
