Configuring the VS-162V Video Matrix Switcher
16
7.3.1 Configuring a 32x16 Switcher
A 32x16 switcher consists of two VS-162V units (MACHINE ADDRESS #
1 and MACHINE ADDRESS # 7), as shown in
Figure 8 . To make this
configuration, as shown in Figure 9 :
1. Set the MACHINE # on both VS-162V units to #1 (see section 8.2 ).
2. Set the MACHINE ADDRESS # on one VS-162V unit to 1 and on the
other VS-162V unit to 7 (refer to Figure 8 ).
3. Set DIP 6 OFF on both VS-162V units.
4. Using T-connectors, connect OUTPUTS 1 to 16 on both VS-162V units.
OUTPUTS 1 to 16 become the SYSTEM OUTPUTS 1 to 16, while the
inputs on the MACHINE ADDRESS # 1 are system inputs 1 to 16, and the
inputs on the MACHINE ADDRESS # 7 are system inputs 17 to 32.
The two VS-162V units form a 32x16 switcher.

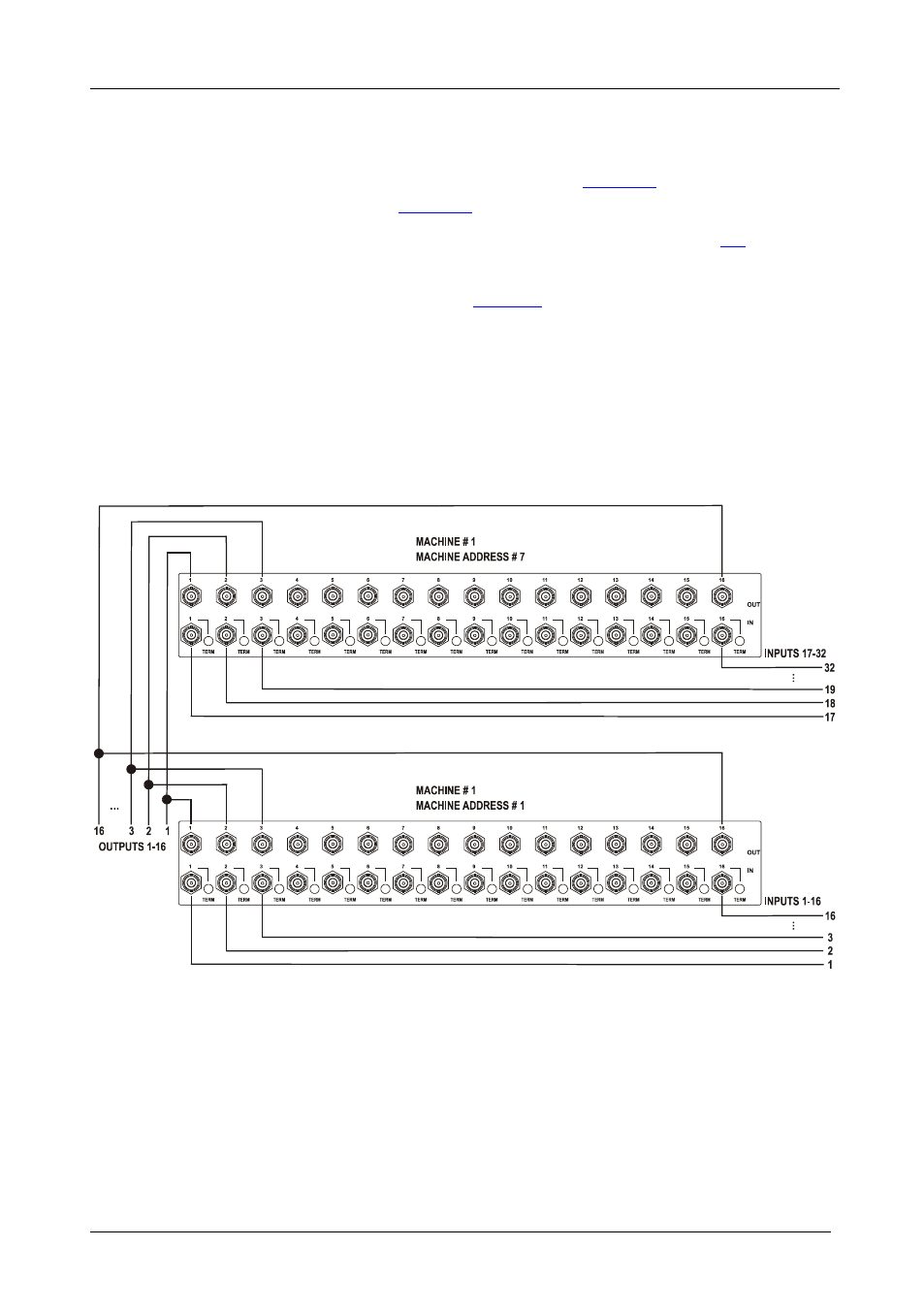

Figure 9: Configuring a 32x16 Switcher
