KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring the VS-162V Video Matrix Switcher

14

7.2.2 Configuring a 3-Unit 16x16 YUV/RGB Switcher

To configure a 16x16 YUV video matrix switcher, combine

1

Figure 7

three

VS-162V switchers, as shown in

:

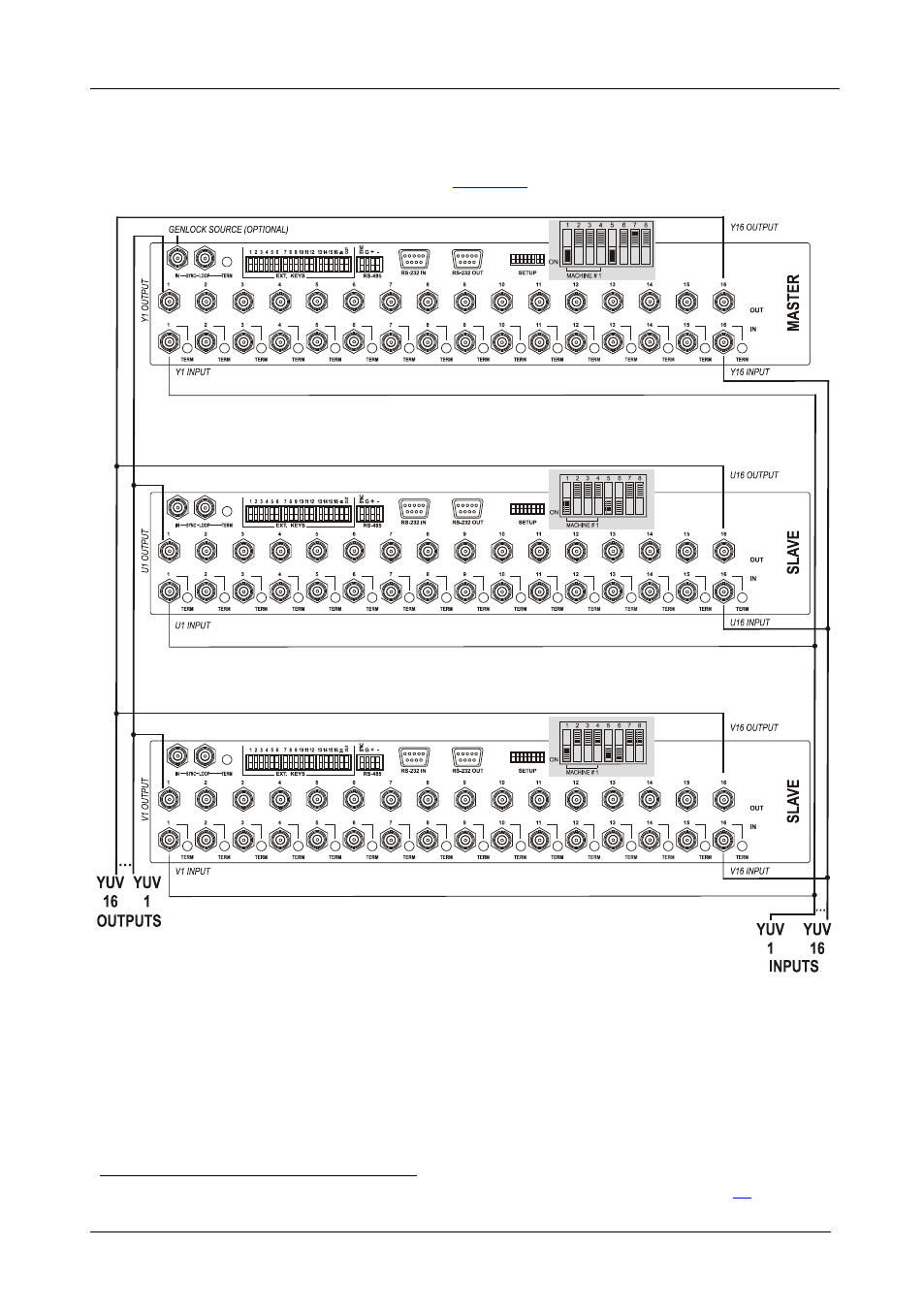

Figure 7: Configuring a 16x16 YUV (RGB) Switcher with 3 VS-162V Units




1 For a description of how to connect the RS-485 connectors between the VS-162V switchers, refer to section

9.2
