Installing and Operating a Single VS-162V - Overview
9
9
6 Installing and Operating a Single VS-162V - Overview
To install the VS-162V, connect the following
1
• Power cord
to the rear panel, as
required:
• Video input and output cables
• Control interface cables between switcher units, or PC (or other
controller), as described in section 9
• Set the DIP-switches, as described in section
8
• Set the system variables using the MENU function, as described
in section 11
By default, the VS-162V is setup for operation as a single machine.
This means that it is:
• A 16x16 composite video switcher
• Switched during the vertical interval of the external reference
In particular, be sure that the DIP-switches are set as shown in Figure 2 (for
more information, see section 8 ):

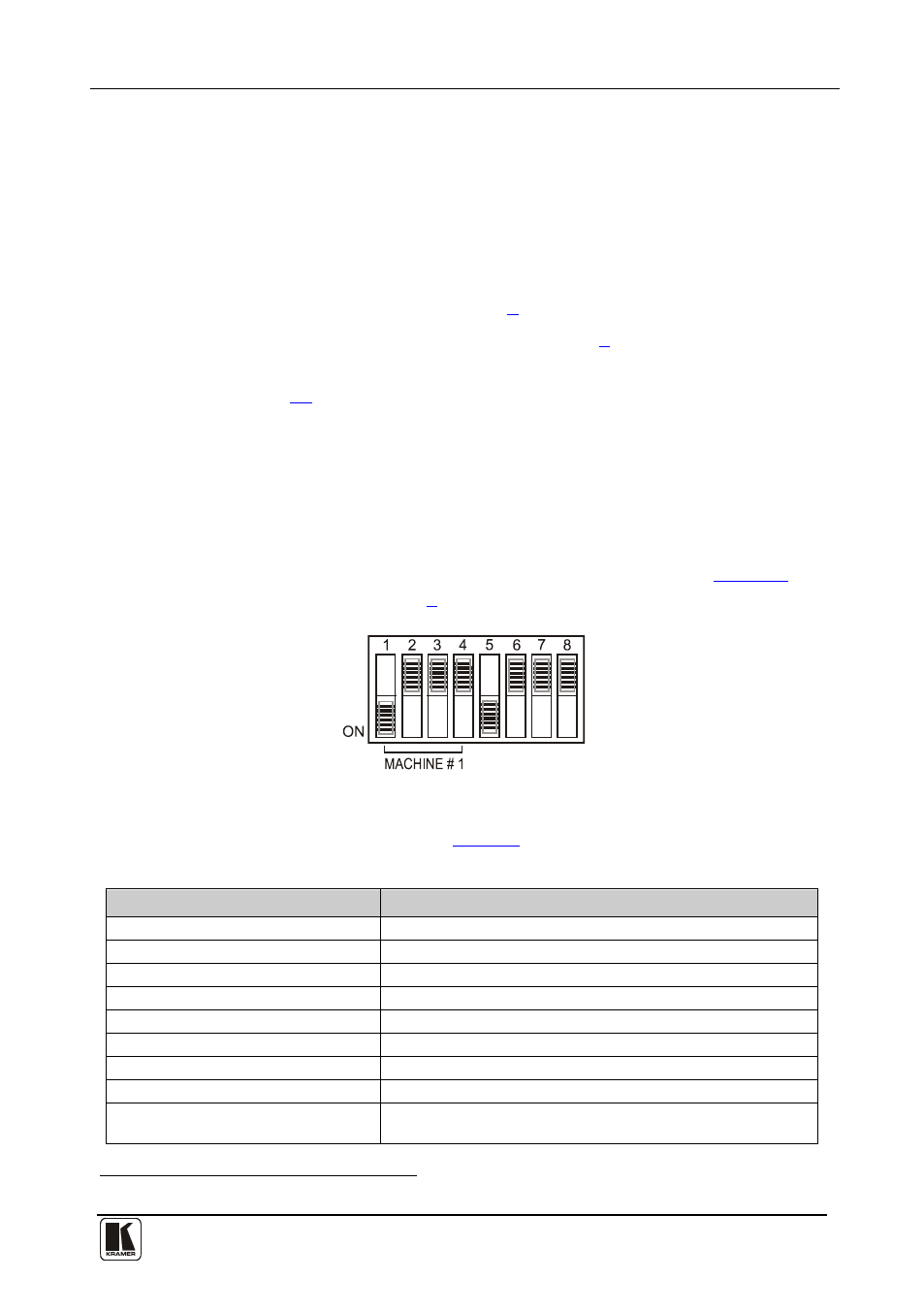

Figure 2: DIP-Switch Setup on a Single Machine
To operate a single machine, see Table 2 .
Table 2: Quick Reference Operating Guide for a Single Machine
To perform this command: Press:
Connect an input with an output OUT #; IN #
Reset a specific output OUT #; OFF
Reset all outputs ALL; OFF
Connect all outputs to a specific input ALL; IN #
Store a setup STO; OUT #; TAKE
Recall a setup RCL; OUT #; TAKE
Lock front panel MENU; TAKE
Unlock front panel TAKE; TAKE
Change default setup Press the Menu button several times until you reach the
appropriate Menu setup command and follow the instructions
1 Switch OFF the power on each device before connecting it to your VS-162V
