Configuring the VS-162V Video Matrix Switcher
12
7.1.3 Configuring a 5x5 YUV/RGB Switcher
To configure a single VS-162V switcher as a 5x5 video matrix switcher for
YUV (or RGB), group the inputs and outputs
1
Figure 5
into sets of 3, as shown in
. The YUV channel is also appropriate for RG
S
B. In this case,
connect Gs for Y, R for V and B for U.

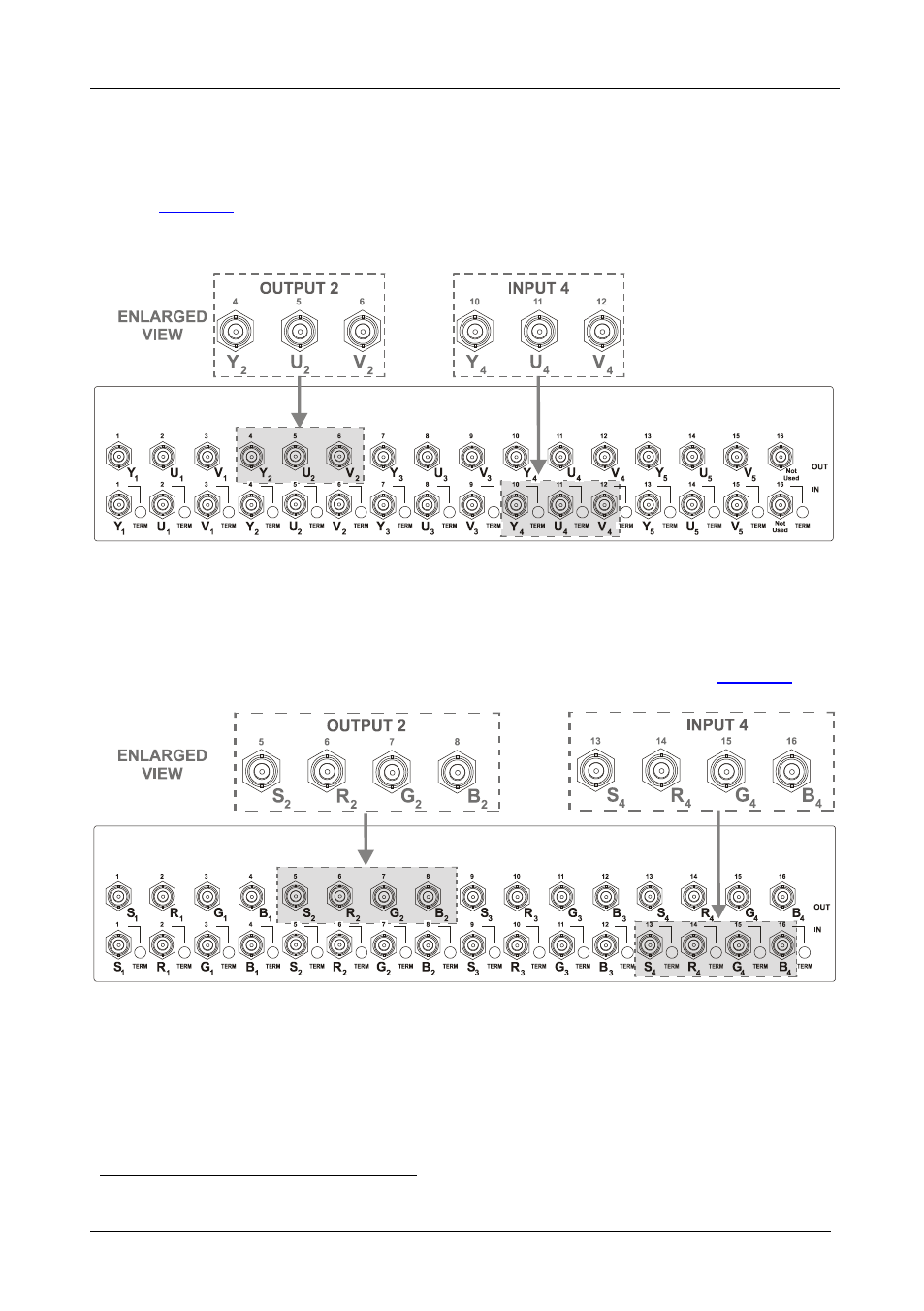

Figure 5: Configuring the VS-162V for YUV (RGB)
7.1.4 Configuring a 4x4 RGBS Switcher
To configure a single VS-162V switcher as a 4x4 video matrix switcher for
RGBS, group the inputs and outputs into sets of 4, as shown in
Figure 6 :
Figure 6: Configuring the VS-162V for RGBS
1 Input 16 and output 16 are not used
