AT-S106 Management Software Web Browser User’s Guide
43
Timeout Value
Specifies the length of time, in seconds, the switch waits for a
response before assuming that a ping has failed. The default is 3
seconds.
Number of Ping Requests
Specifies the number of ping requests you want the switch to perform.
The default is 10.
4. Click Start.
5. To view the ping results, click Show Ping Results.
A sample Ping Test Results Page is displayed. See Figure 14.

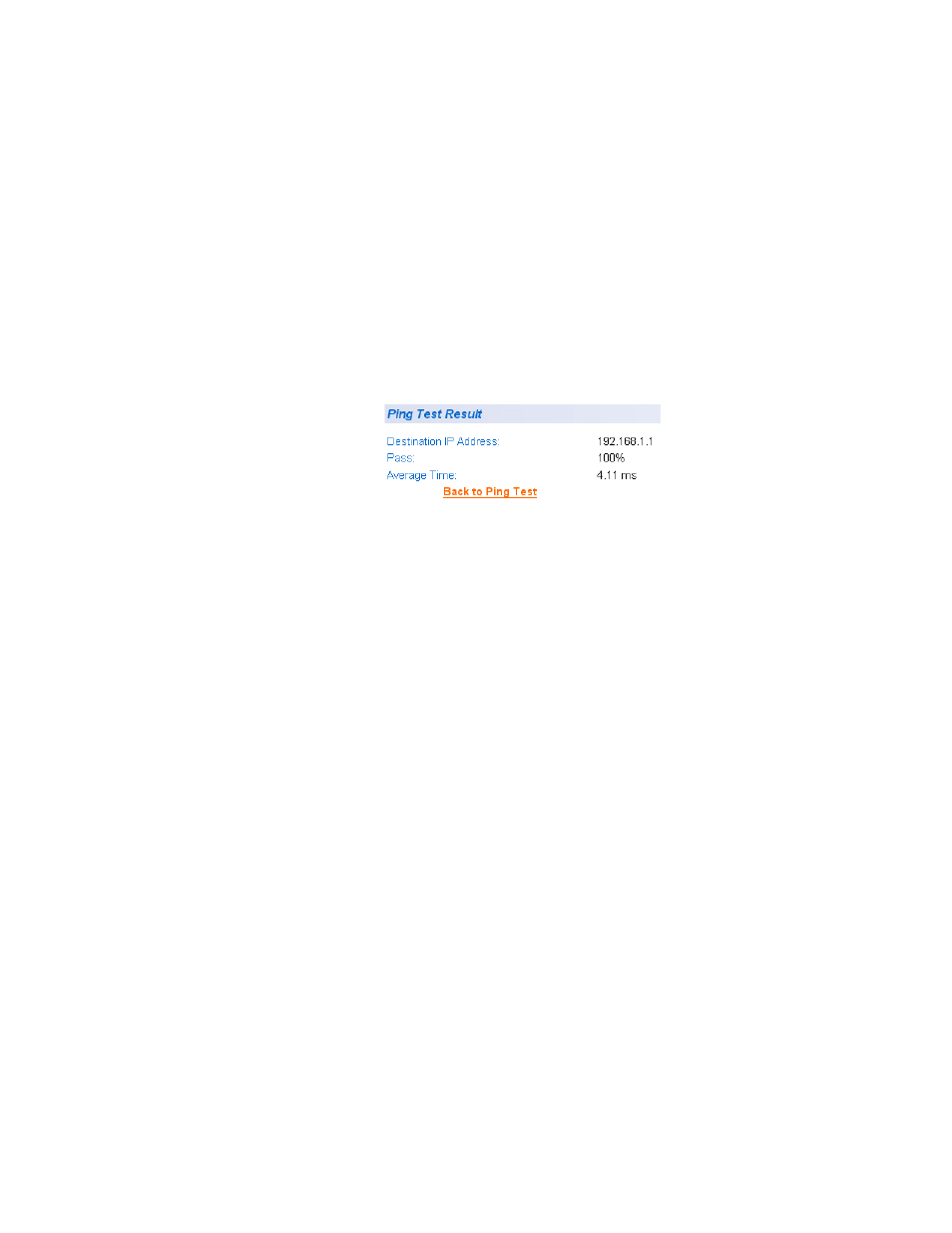

Figure 14. Ping Test Results Page
The following information is provided:
Destination IP Address
Indicates the IP address of the unit that receives the ping.
Pass
Indicates the percentage of times the ping passed.
Average Time
Indicates the time, in milliseconds, the ping was received.
6. Click Back to Ping Test to return to the Ping Test Configuration Page.
