AT-S106 Management Software Web Browser User’s Guide
133
Configuring Port Mirroring
To set up port mirroring, do the following procedure:
1. Select the Bridge folder.
The Bridge folder expands.
2. From the Bridge folder, select Mirroring.
The Mirroring Page is displayed. See Figure 41.

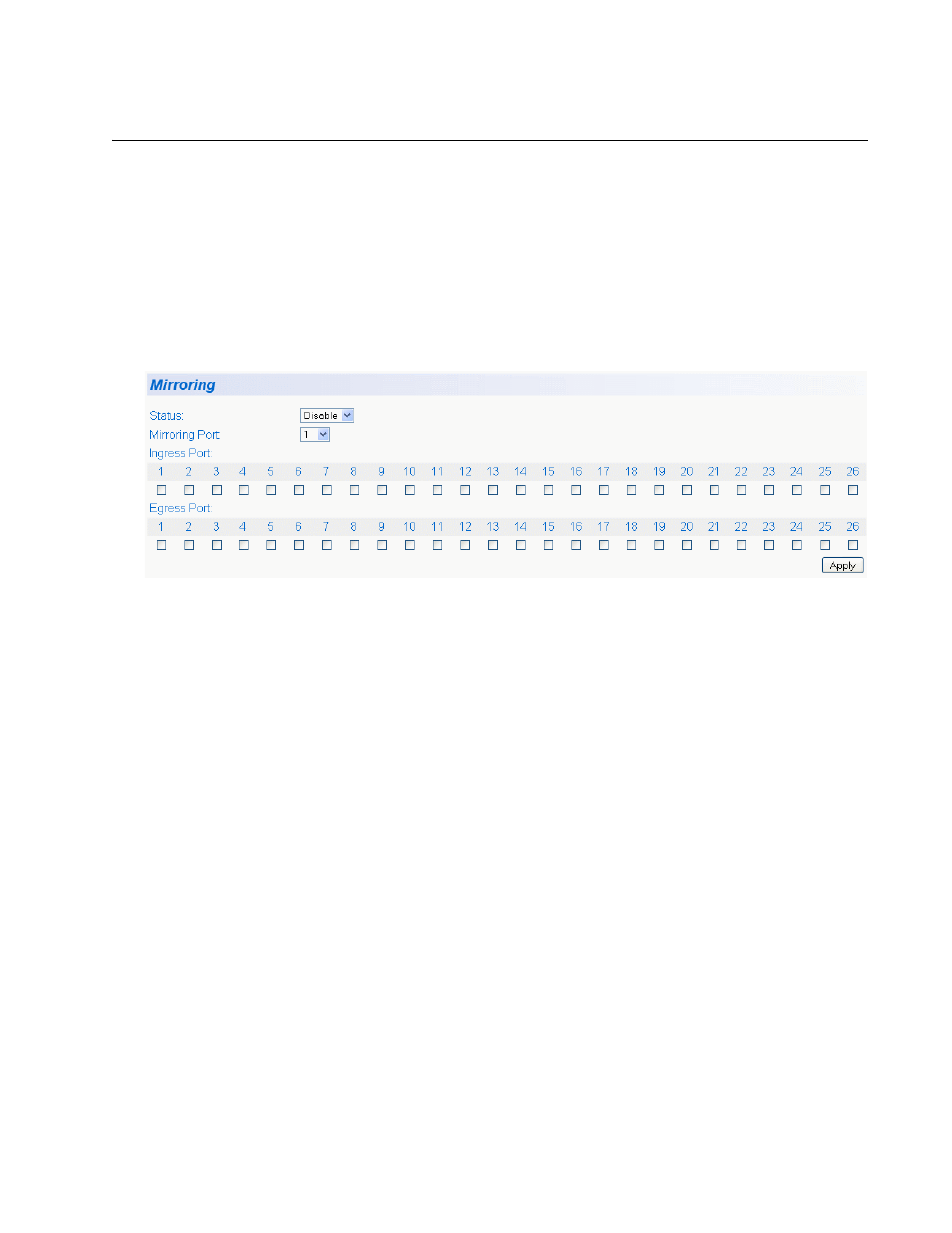

Figure 41. Mirroring Page
3. Click Mirroring Port and from the pull-down menu select the port
where the data analyzer is connected.
4. For the mirrored port, select the port whose ingress, egress, or both
ingress and egress traffic you want to monitor.
A check in a box indicates the Ingress or Egress Port has been
selected.
5. Click Apply on the right-hand side of the page.
Port mirroring is immediately enabled on the switch. You can now
connect a data analyzer to the mirroring port to monitor the traffic on
the other port.
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
