Allied Telesis AT-S106 - Manual (Page 179)

AT-S106 Management Software Web Browser User’s Guide
179
Configuring the RADIUS Client
To configure the RADIUS client, do the following procedure:
1. From the main menu on the left side of the page, select the Security
folder.
The Security folder expands.
2. From the Security folder, select RADIUS.
The RADIUS Page is displayed. See Figure 56.

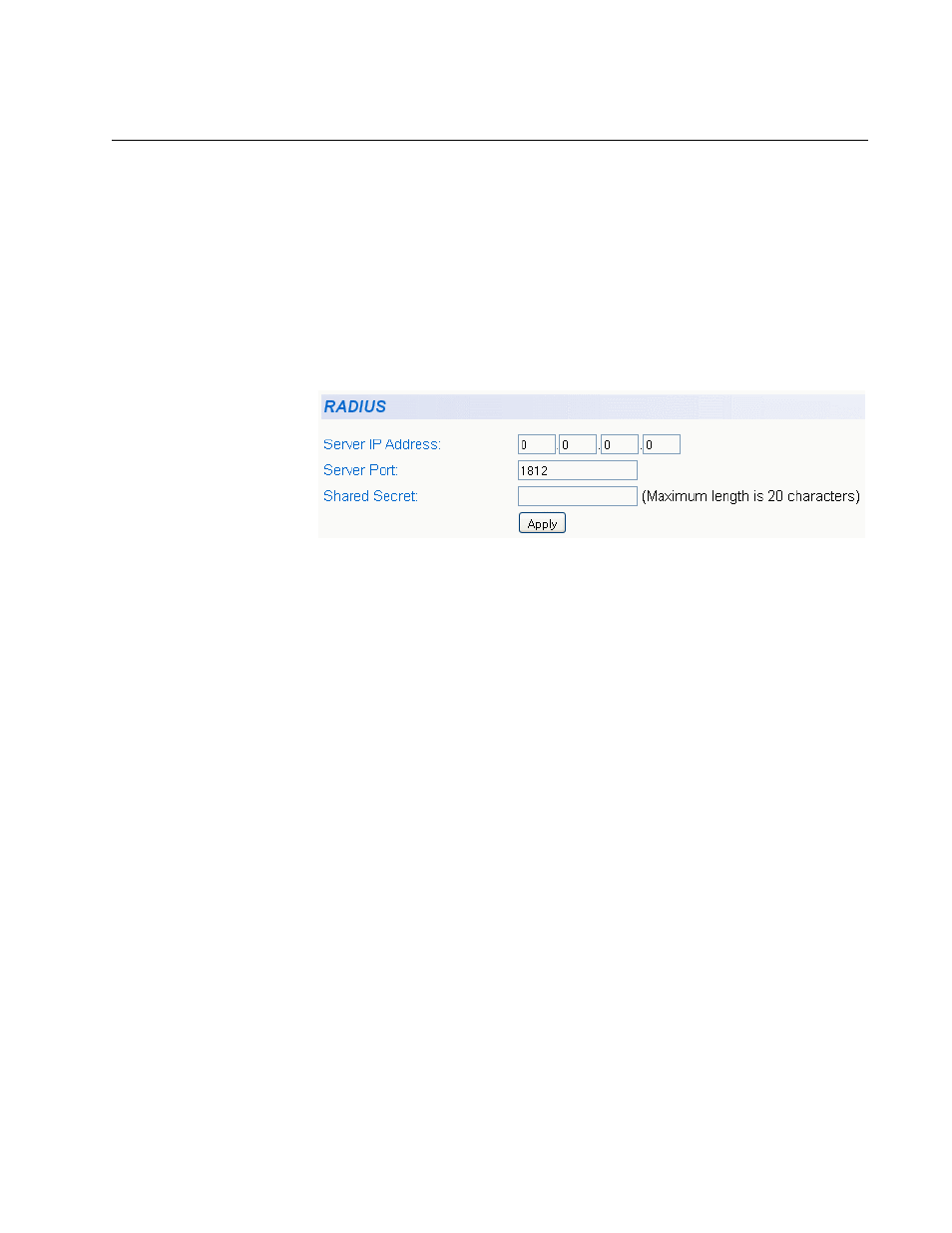

Figure 56. RADIUS Page
3. To enter the RADIUS server’s IP address, enter the address in the
Server IP Address field.
4. To select the port number that you want to assign to UDP, type the port
number in the Server Port field.
You may only assign one port number to this parameter. The default
value is 1812.
5. To specify the server’s encryption key, click the Shared Secret field
and enter the encryption key.
6. Click Apply to save your changes.
7. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
