Chapter 12: Static Multicast MAC Address

138

Setting a Static Multicast Address

This procedure explains how to set the static multicast feature for each
port on the AT-GS950/48 Gigabit Ethernet Smart Switch.

To add a static MAC address to the switch, do the following procedure:

1. From the main menu on the left side of the page, select the Bridge

folder.

2. From the Bridge folder, select Static Multicast.

The Static Multicast Address Table Page is displayed. See Figure 42.

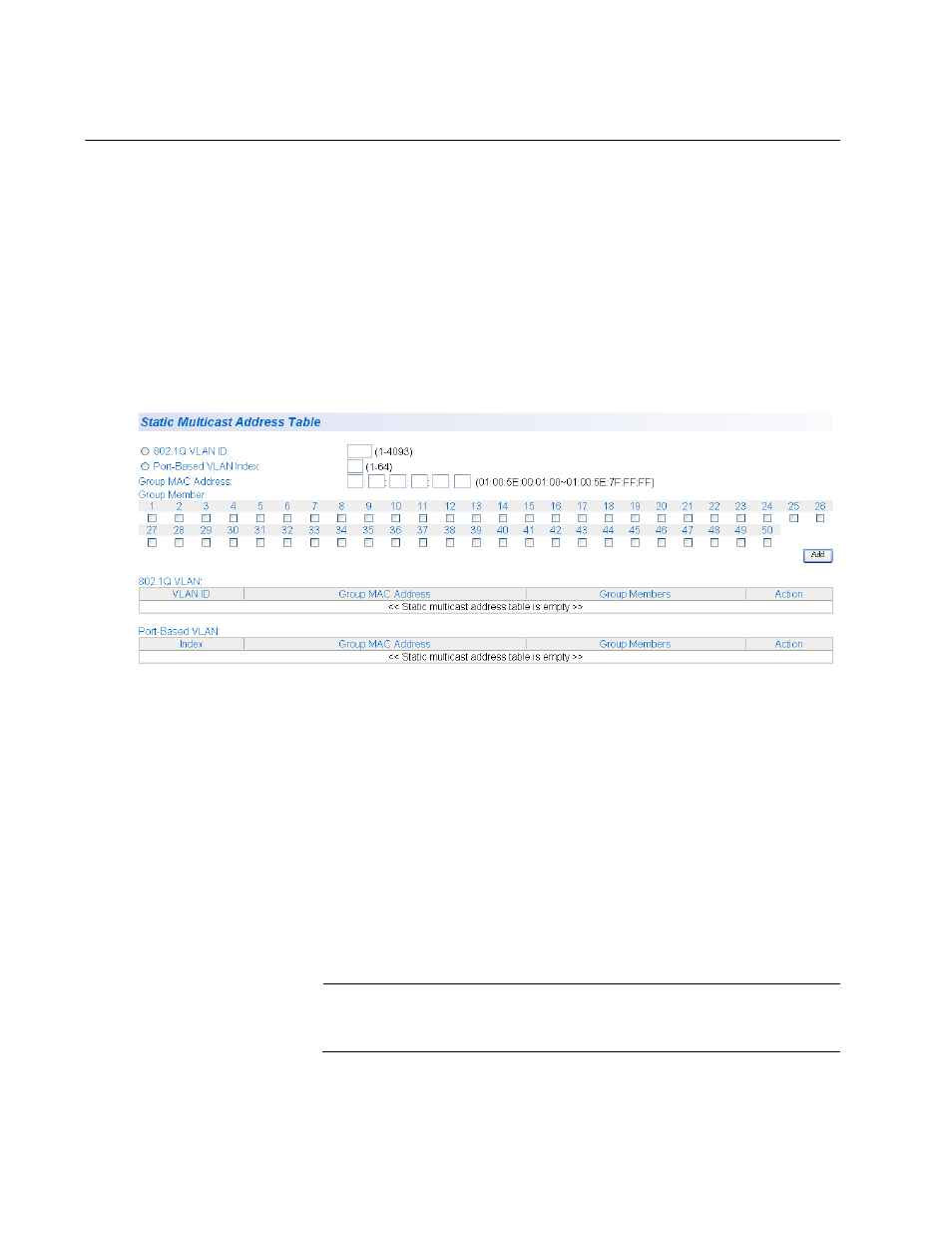

Figure 42. Static Multicast Address Table Page

Before continuing, you must create an 802.1Q VLAN ID(s) or a Port-
Based VLAN Index(es). For information about defining these
parameters, go to:

3. Select either the 802.1Q VLAN ID or Port-Based VLAN Index radio

button and enter the respective VLAN ID (1-4093) or VLAN Index (1 -
65).

Note

An error message will be generated if you enter a VLAN ID or VLAN
Index which has not been defined.
