Chapter 14: 802.1x Port-based Network Access Control
176
Displaying the Port Access Control Status
To display the Port Access Control Status, do the following procedure:
1. Select the Security folder from the main menu on the left side of the
page.
The Security folder expands.
2. From the Security folder, select Port Access Control Status.

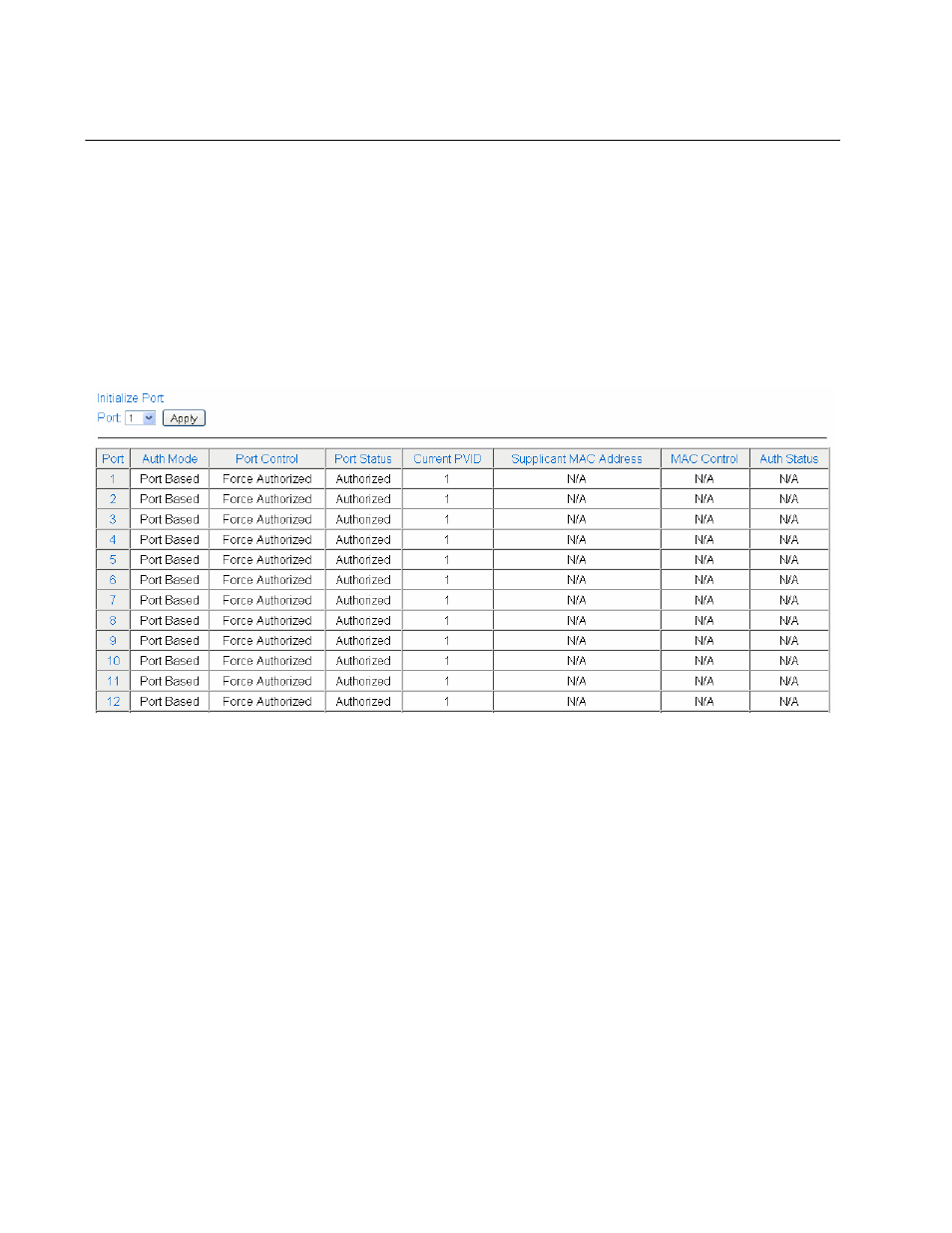

The Port Access Control Status Page is displayed. See Figure 54.
Figure 55. 802.1x Access Control Configuration Page
3. To initialize a port, click Port and select the port you want to initialize
from the pull-down menu.
