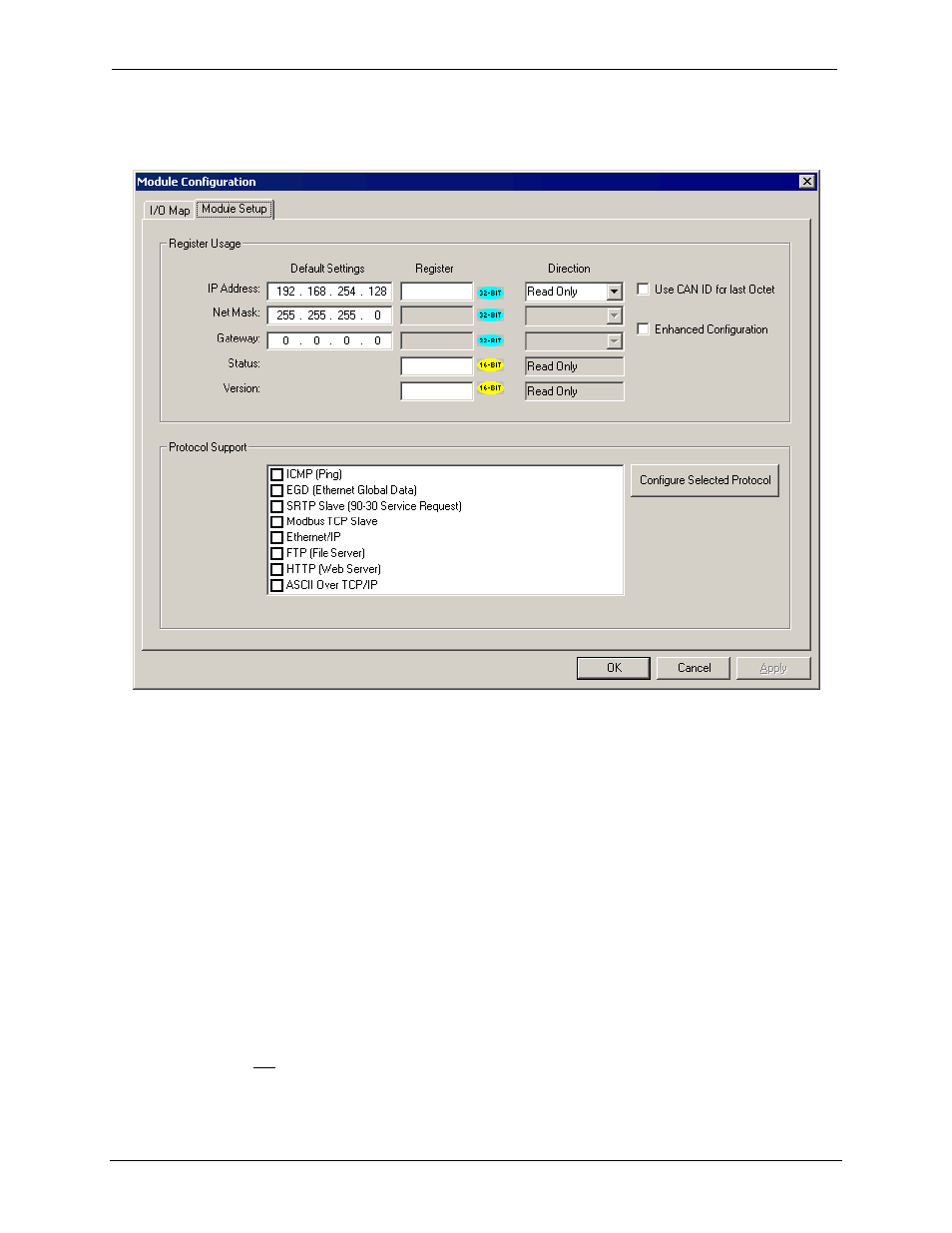

In Module configuration dialog go to IP Address field enter unused IP Address and configure unused
registers in Register field & then click OK. Screen shot for the same as follows:
Download the configuration to Controller. Connect LAN cable to the Controller in default LAN Port.
From Cscape go to Tools -> Editor Options -> Communication Port -> configure. Select Ethernet and
enter IP address which is configured in the file. Select mode as Nx/Rx Series mode from drop down list.
The controller should get connected to Cscape. If communications are successful, the target indicator
should show the mode of the controller Target: yy(R) as shown in the status section above.
13.4
Models supported
Cscape 9.0 and beyond supports all the options offered in the RX-371. For the latest version of Cscape or
compatibility information,
contact Technical Support .
13.5 Configuration
An overview of configuration:
1.) Start the configuration by selecting the Controller | Hardware Configure menu item.
2.) If the RX-371 is connected to the PC press the Auto Config System button to automatically
detect the Base model, I/O and any communication options.
3.) If the RX is not connected press the Config button to the right side top end of the screen. This
allows the base CPU to be selected.
4.) Select RX-371 from the type drop down box.
