Message/EMail
Configuration Messages can contain text and register data values, which approved
group members can read from the controller's data registers at runtime.
• Enter the subject of the email communication.
• Enter the body of email.
• In order to edit/add register data values, click F2 = Insert Field

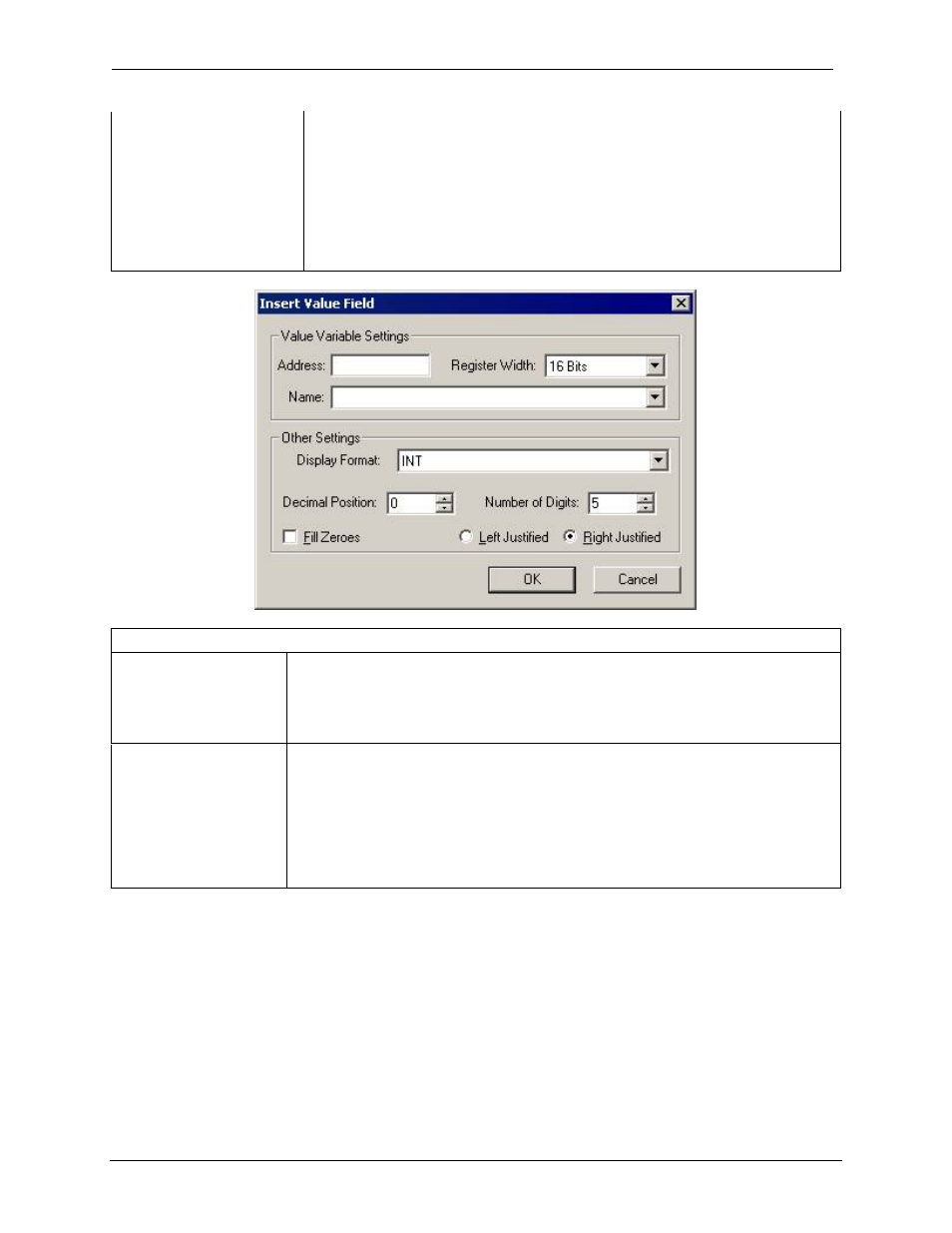

button and configure the Insert Value Field screen shown below:
Insert Value Field
Value Variable
Settings Enter a register reference where the data embedded in the email to send will
be stored. An I/O name can be entered or selected in the Name field. Select
Register Width also.
Up to 32 register value fields can be added to an email message.
Other Settings Select the Display Format from the dropdown. In the Decimal Position field,
enter the position of the decimal point. Enter the number of digits in the
Number of Digits.
Example: xx.xx shows that the decimal is in the 3rd position and the total
number of digits (including the decimal) is 5.
Click the Fill Zeroes box and the Left Justified or Right Justified box if
desired.
• Click
F3 = Insert Char button or press F3 to place a character to be place in email body.
