CH.9 MAN0924-01-EN
February 8, 2010 Page 40 of 124 # 1018
Selecting a Different Controller
To select a different controller, ensure that the CPU Slots tab is pressed. Then, click on the slot or the
Config button. The Configure Controller screen appears.

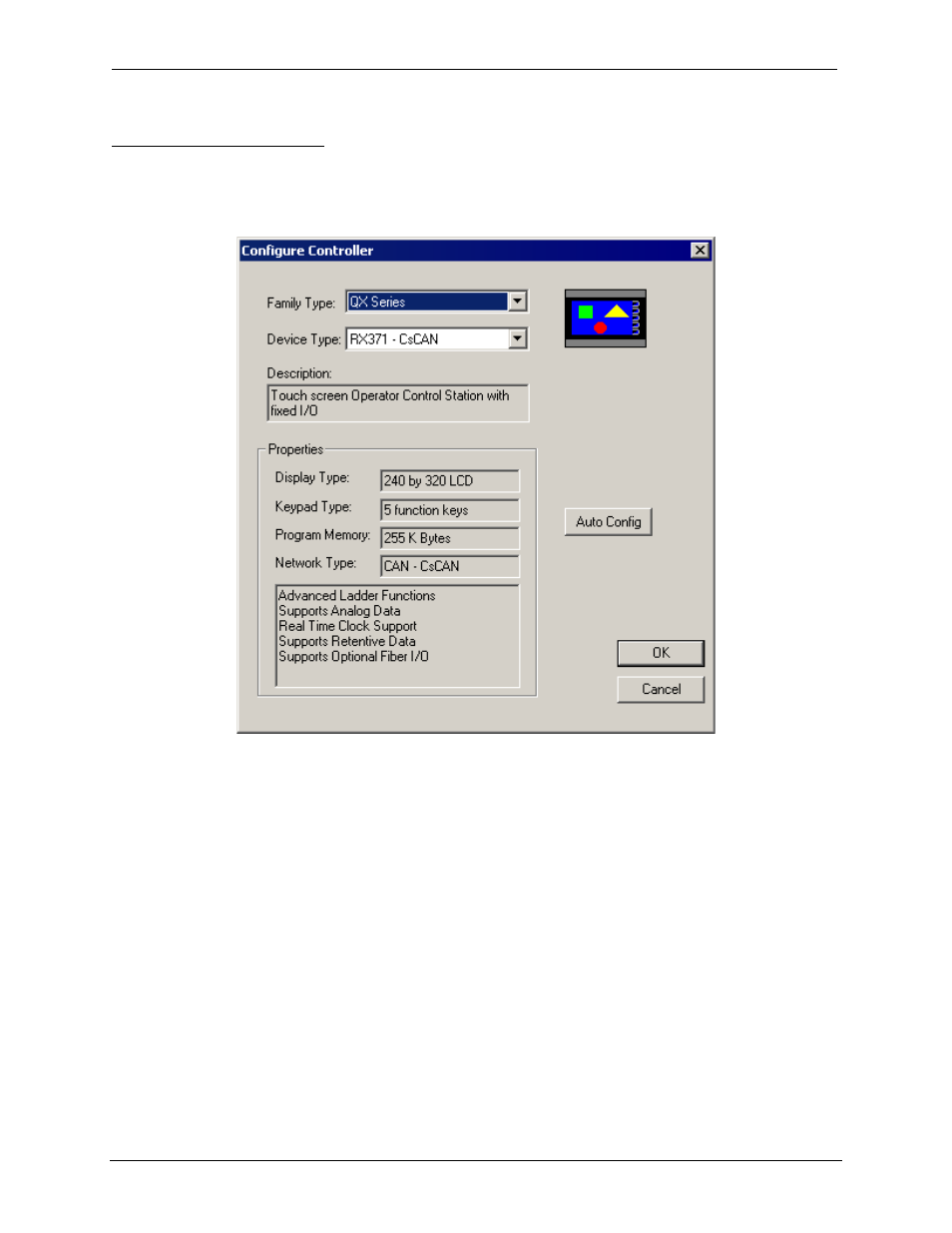

Figure 9.2: Selecting a Controller
To select a different controller, click on the Family Type list box and select the controller series. Then
click on select Device Type list box and scroll down to select the desired controller. Then press OK. If
satisfied with the controller now selected, press Base # tab at the top of the screen. Then, go to Step 3.
Note: The Auto Config button can be pressed prior to selecting the desired controller. By pressing the
button, the settings are deleted from any controller that is physically connected to the PC.
