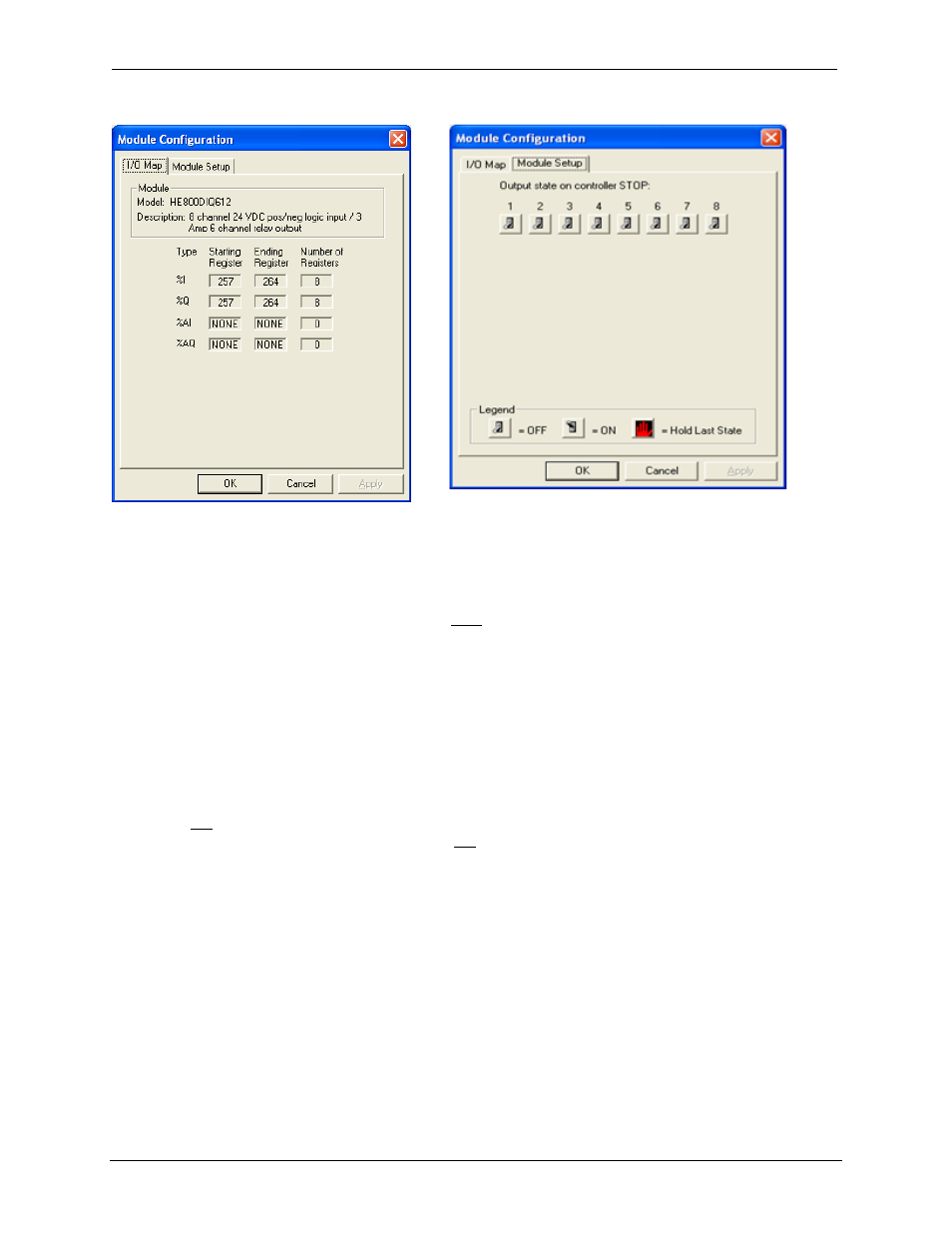

Figure 9.7: I/O Map & Module Setup Tabs
a.
I/O Map Tab
The I/O Map describes the I/O registers assigned to a specific I/O module. Although there are no user-
defined parameters, the I/O Map can be viewed after the SmartStack module is configured to review the
registers.
• Model number
provides the part number.
• Description
Describes the number of input and output channels and other key
Characteristics of the module.
• Type:
Displays the register types assigned to the module.
• Starting Location: Denotes the starting location of the register type.
• Ending Location:
Denotes the ending location of the register type.
• Number:
Indicates the number of a particular register type.
Note: Do not confuse the described number of input and output channels with the numbers found in the
Type column (i.e., %I and %Q). The numbers do not necessarily match.
b.
Module Setup
Module Setup for the I/O Selected in the above example (DIQ611) shows the output state on the
controller.
