CH. 7 MAN0924-01-EN
February 8, 2010 Page 32 of 124 # 1018

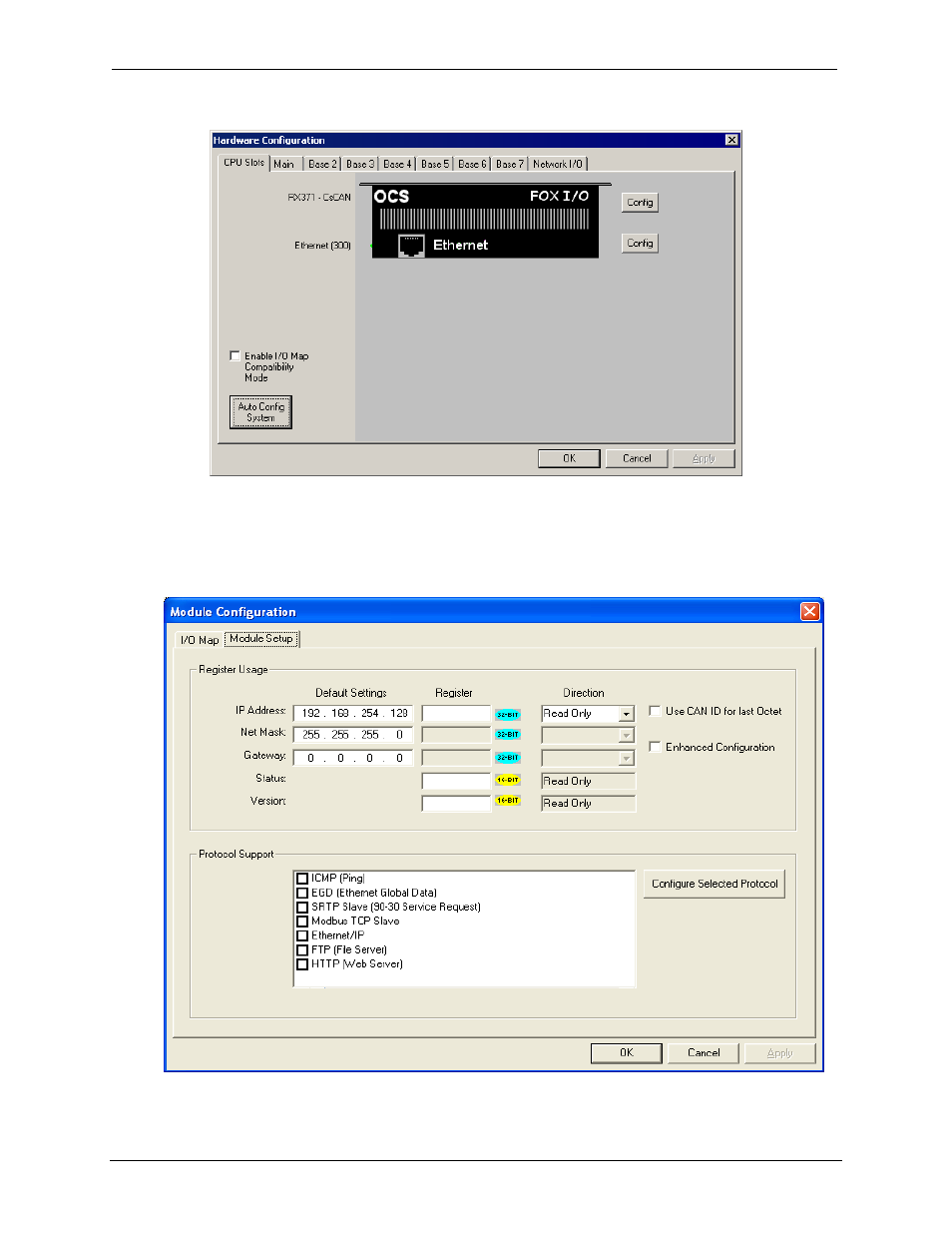

Figure 7.1: I/O Configuration Dialog
3. Click the Config button to the right of the Ethernet Module, and then select the Module Setup
tab, revealing the Ethernet Module Configuration dialog as shown in figure 7.2
Figure 7.2: Ethernet Module Configuration
