APPENDIX “A” - INSTALLATION & INPUT CONFIGURATION SWITCH SET-UP
Before installing the Gemini 5200 into the panel, the user should first become
familiar with the unit. It may also be desirable to program the unit for the
application at hand (Refer to the “Programming and Applications” sections).
Once the unit is programmed, the settings will be saved in memory. The Program
Disable “PGM. DIS.” terminal should be connected to “COMM.” to prevent
accidental or unauthorized programming changes.
Installation Environment
The GEM5200 should be installed in a location that does not exceed the
maximum operating temperature and provides good air circulation. Placing the
unit near devices that generate excessive heat should be avoided.
The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.
-30-

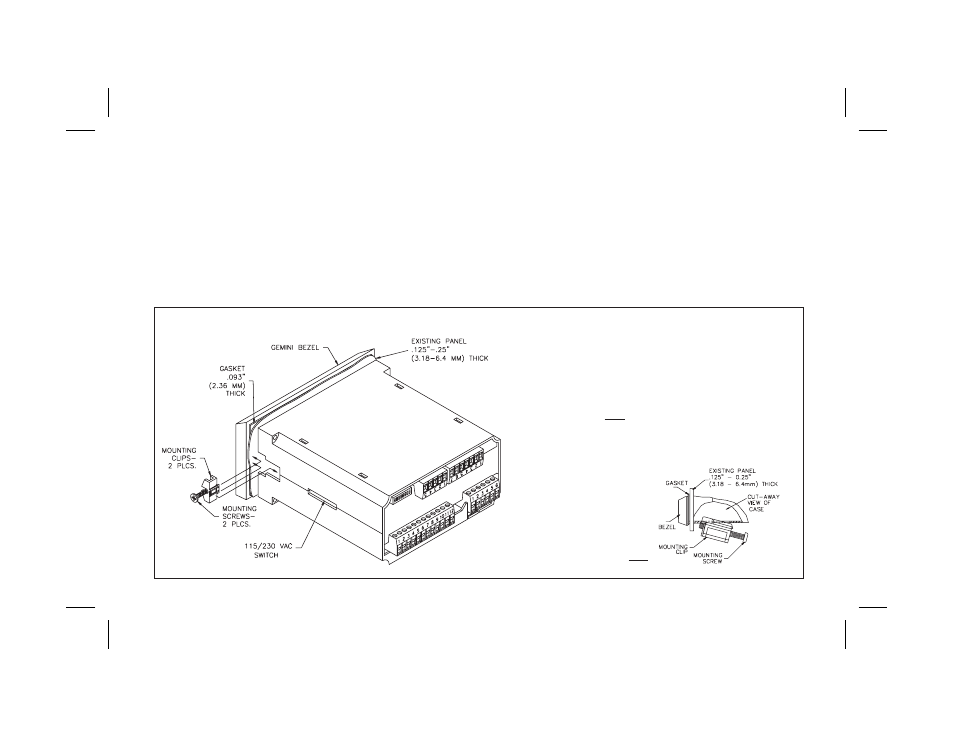

PANEL MOUNTING {Note: See Appendix “B” for Dimensions} The Gemini 5200 is intended to be mounted into an enclosed panel with
a gasket to provide a water-tight seal. The unit meets NEMA 4/IP65
requirements for indoor use when properly installed. Two mounting clips
and screws are provided for easy installation. Consideration should be
given to the thickness of the panel. A panel which is too thin may distort
and not provide a water-tight seal. (Recommended minimum panel
thickness is 1/8".)
After the panel cut-out has been completed and deburred, remove the
backing from the adhesive side of the gasket, and carefully apply the
gasket to the panel. DO NOT APPLY THE ADHESIVE SIDE OF THE
GASKET TO THE COUNTER BEZEL. Insert the unit into the panel.
Install the screws into the narrow ends of the mounting clips as shown in
the drawing to the left. Thread the screws into the clips until the pointed
end just protrudes through the other side.
Install each of the two mounting
clips by inserting the wide lip of the
clips into the wide end of the holes
located on either side of the case.
Tighten the screws evenly,
applying uniform compression,
thus providing a water-tight seal.
Caution: Only minimum pressure is
required to seal panel. Do NOT
over tighten mounting screws.
