GENERAL DESCRIPTION
The G3 proprietary expansion slot provides a high speed, parallel architecture
that extends the functionality and flexibility of the G3 series HMI. This
approach allows the G3 series to evolve concurrently with the latest advances in
communications and standards, without sacrificing performance. This high
bandwidth channel has significantly greater throughput when compared to the
traditional (external) serial gateway approach.
The G3CN option card is easily installed by removing the rear cover of your
G3 operator interface, attaching the card using three screws and connecting a
single cable. Adding this card gives the operator interface a CANopen
communications port. It is built with digital isolation to protect the operator
interface from the CANopen bus and vice versa. It provides the ability to
communicate to any high speed CANopen device. The G3CN option board has
a termination resistor built-in, and is selectable through a jumper setting. A
connector housing is provided to function as a strain relief for the wires that
terminate into the five position connector. The connector is pluggable for easy
removal of the G3 operator interface from the CANopen bus, without disturbing
communications with other devices on the bus.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
CONTENTS OF PACKAGE
- G3CN Option Card with pluggable connector
- Cable already attached to G3CN option card
- Hardware pack consisting of three screws and a connector housing for the
pluggable connector
- This hardware bulletin
ORDERING INFORMATION
1 Use this part number to purchase Crimson on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download from www.
redlion.net/g3.
MODEL G3CN - CANopen OPTION CARD FOR G3 OPERATOR
INTERFACE TERMINALS
Bulletin No. G3CN-E
Drawing No. LP0587
Released 03/14
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.

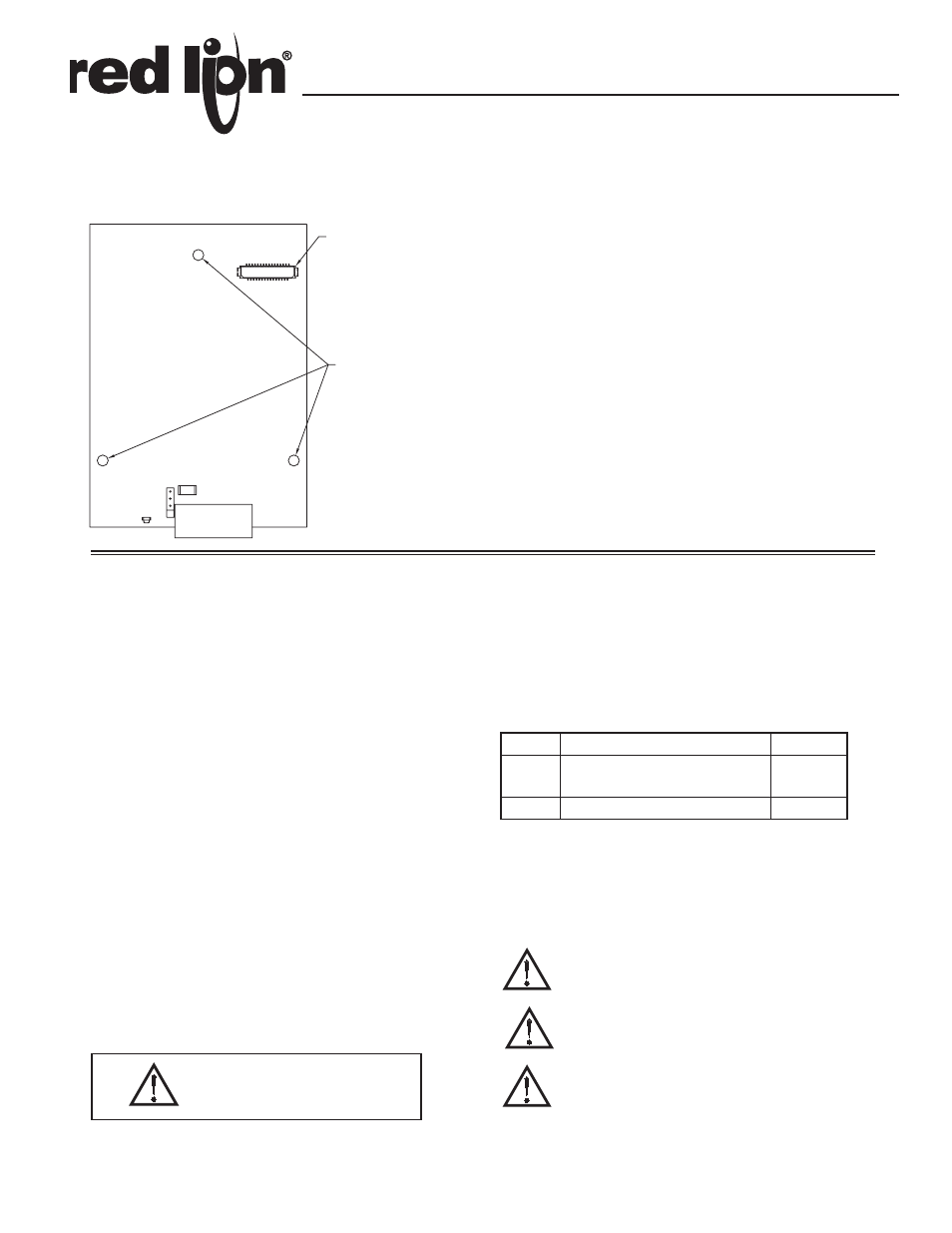

Connector
(side 2)
mounting holes, 3 plcs.
MODEL NO. DESCRIPTION PART NUMBER
G3CN G3CN0000
SFCRM2 Crimson 2.0 1 SFCRM200
 CONFIGURED USING CRIMSON SOFTWARE (VERSION 2.0 OR
LATER)
 DIGITALLY ISOLATED CANOPEN PORT CAPABLE OF
COMMUNICATING WITH ANY CANopen DEVICE
 POWERED AND CONFIGURED FROM G3 OPERATOR
INTERFACE TERMINAL
 BUILT-IN TERMINATION RESISTOR SELECTABLE THROUGH
JUMPER SETTING
 INSTALLATION AND CONNECTION HARDWARE INCLUDED
WITH CARD
CANopen option card for G3 operator
interfaces with isolated high speed
communications ports
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, HAZARDOUS LOCATIONS,
OR NON-HAZARDOUS LOCATIONS ONLY
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA
IS KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
