1
GENERAL DESCRIPTION
The G3 proprietary expansion slot provides a high speed, parallel architecture
that extends the functionality and flexibility of the G3 series HMI. This
approach allows the G3 series to evolve concurrently with the latest advances in
communications and standards, without sacrificing performance. This high
bandwidth channel has significantly greater throughput when compared to the
traditional (external) serial gateway approach.
The G3PB option card adds PROFIBUS DP connectivity to any G3 series
HMI. This allows a high speed exchange of blocks of data, at data rates up to 12
MBaud, between the hosting G3 and a Master PLC on a PROFIBUS network.
The DP suffix refers to “Decentralized Periphery”, which is used to describe
distributed I/O devices connected via a fast serial data link with a central
controller.
The card is easily installed by removing the rear cover of your G3 operator
interface, attaching the card using three screws and connecting a single cable.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
CONTENTS OF PACKAGE
- G3PB Option Card with pluggable DB9F connector
- Cable already attached to G3PB option card
- Hardware pack consisting of three screws
- This hardware bulletin
GSD FILE
The GSD file and associated bitmap are part of the Crimson 2.0 installation.
Both files can be found on your PC’s hard drive at C:\Program Files\Crimson
2.0, or on our website at http://www.redlion.net
ORDERING INFORMATION
1 Use this part number to purchase Crimson ® software on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download from www.
redlion.net/g3.
MODEL G3PB - PROFIBUS OPTION CARD FOR G3 OPERATOR
INTERFACE
TERMINALS
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.

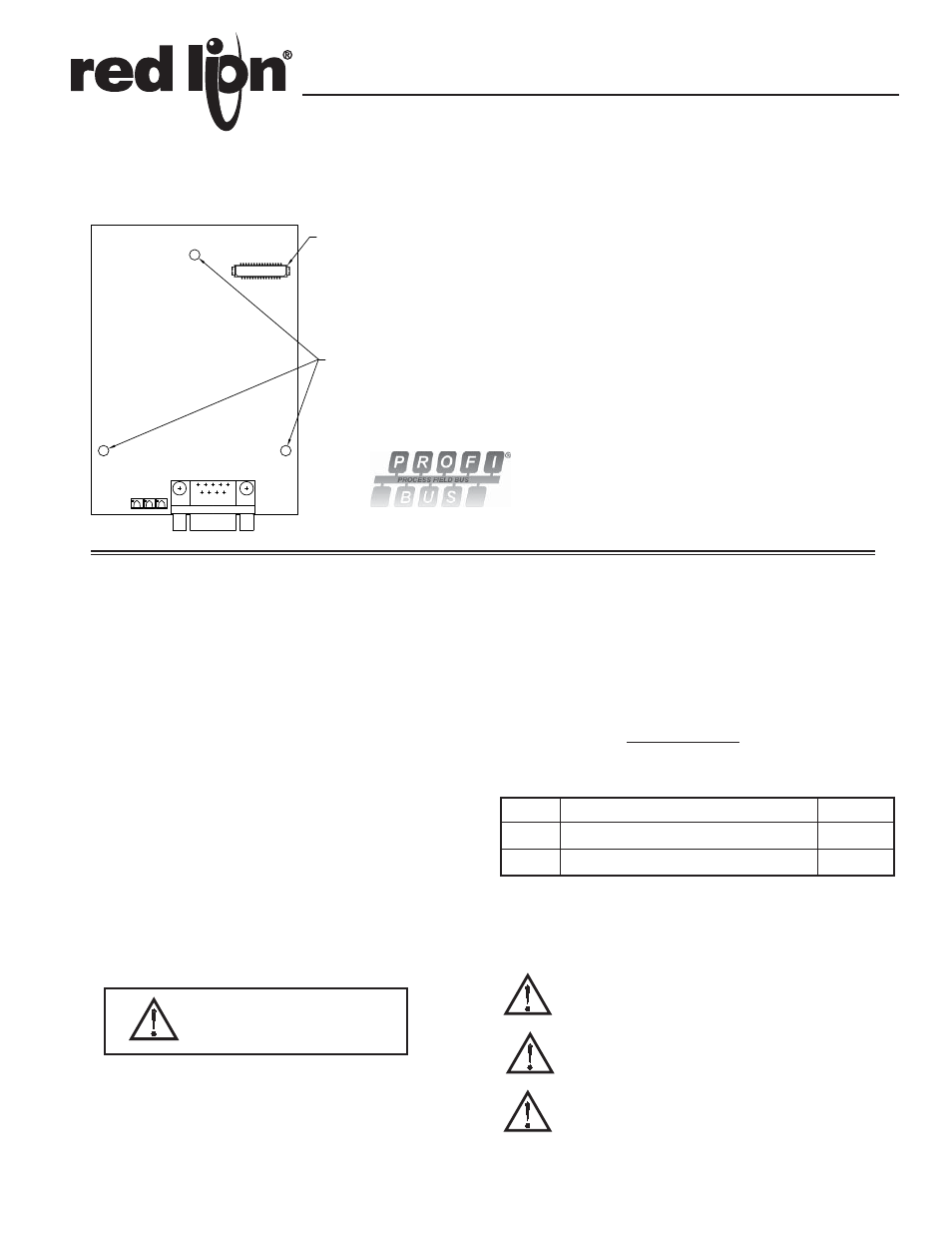

Connector
(side 2)
mounting holes, 3 plcs.
MODEL NO. DESCRIPTION PART NUMBER
G3PB G3PBDP00
SFCRM2 Crimson 2.0 1 SFCRM200
 ADDS PROFIBUS DP CONNECTIVITY TO ANY G3 OPERATOR
INTERFACE
 POWERED BY THE G3 OPERATOR INTERFACE
 INSTALLATION AND CONNECTION HARDWARE INCLUDED
WITH CARD
PROFIBUS option card for G3 operator interfaces
Bulletin No. G3PB-D
Drawing No. LP0637
Released 10/10
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, HAZARDOUS LOCATIONS,
OR NON-HAZARDOUS LOCATIONS ONLY
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA
IS KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
