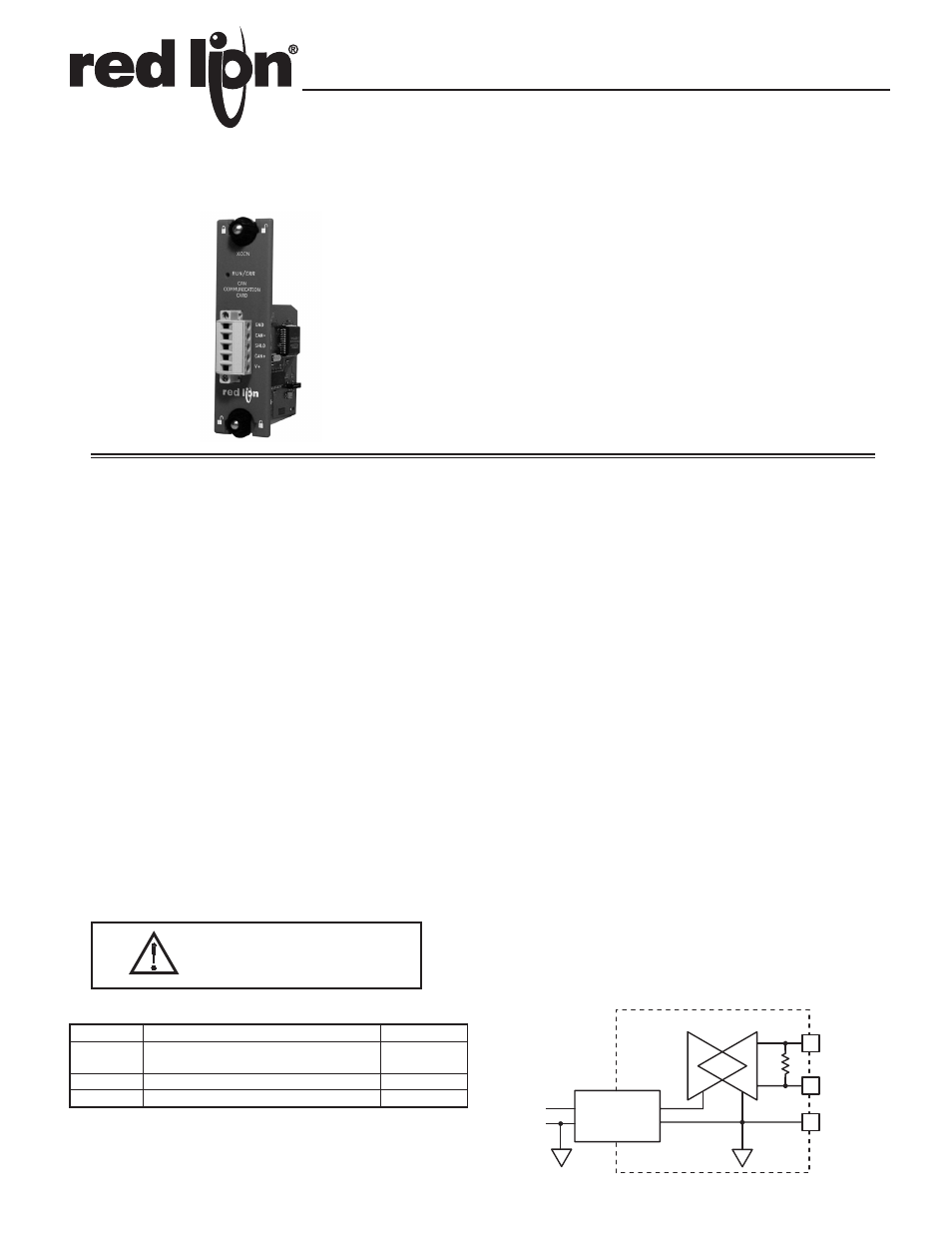

Red Lion XCCN - Manual


CONFIGURED USING CRIMSON SOFTWARE
(VERSION 2.0 OR LATER)

DIGITALLY ISOLATED CANopen PORT CAPABLE OF
COMMUNICATING WITH ANY CANopen DEVICE

EASY INSTALLATION
GENERAL DESCRIPTION
Both the Modular Controller Master (enhanced models) and Data Station Plus
contain a proprietary expansion port which provides a high speed, parallel
architecture that extends the functionality and flexibility of the platform. This
approach allows these products to evolve concurrently with the latest advances
in communications and standards, without sacrificing performance. This high
bandwidth channel has significantly greater throughput when compared to the
traditional (external) serial gateway approach.
The XCCN option card adds a CANopen communication port to the series.
This isolated card protects user equipment from potentially harmful ground
loops while providing the ability to communicate to any high speed CANopen
device. The XCCN option card has a termination resistor built-in, which is
selectable via a jumper setting. Additionally, the XCCN connector is pluggable
for easy removal of the Modular Controller Master or Data Station Plus from the
CANopen bus without disturbing communications with other devices on the bus.
The XCCN communication card is easily installed by removing the blank
expansion port cover of your Modular Controller or Data Station Plus, and
plugging the XCCN card into the expansion port. Configuration is simple using
Red Lion's free Crimson 2.0 software.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
ORDERING INFORMATION
1 Use these part numbers to purchase Crimson 2.0 on CD with a printed
manual, USB cable and RS-232 cable. Otherwise, download free of charge
from www.redlion.net.
CONTENTS OF PACKAGE
- XCCN option card
- This hardware bulletin
SPECIFICATIONS
1. POWER REQUIREMENTS: 24 V @ 50 mA max. Power is supplied to the
option card from the main board of the Modular Controller Master or Data
Station Plus.
2. COMMUNICATIONS:
CANopen Port: The CANopen port has format and baud rates that are
software programmable up to 1M baud and are digitally isolated. This port
may be configured for various CANopen protocols. Check www.redlion.net
for currently supported protocols.
Isolation from XCCN Communication ports to the Modular Controller
Master or Data Station Plus:1000 VDC for 1 minute.
3. CERTIFICATIONS AND COMPLIANCES:
Refer to main unit manual or “Agency Approvals” section of Red Lion’s
website for agency certifications.
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for Measurement,
Control and Laboratory use.
Reference Modular Controller Master or Data Station Plus unit for EMC
specifications
4. ENVIRONMENTAL CONDITIONS:
Refer to the specifications of the Modular Controller Master or Data Station
Plus you are installing this card in.
5. CONSTRUCTION: For indoor use only. Installation Category II, Pollution
Degree 2.
6. INSTALLATION REQUIREMENTS: See “Installing the XCCN Option
card” for more details.
7. WEIGHT: 2.3 oz (65.2 g)
MODEL XCCN - CANopen OPTION CARD FOR DATA STATION PLUS AND
MODULAR CONTROLLER
Bulletin No. XCCN-B
Drawing No. LP0667
Released 03/14
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL NO. DESCRIPTION PART NUMBER
XCCN XCCN0000
SFCRM2 Crimson 2.0 with G3/Data Station Manual 1 SFCRM200
SFCRM2 Crimson 2.0 with Modular Controller Manual 1 SFCRM2MC
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
1
CANopen option card for Modular Controller or
Data Station Plus TX/RX
1
2
4 CAN +
CAN -
GND
+
-
ISOLATING
DC : DC
A B
BLOCK DIAGRAM
