GENERAL DESCRIPTION

The G3GSM option card allows the user to add GSM/GPRS cellular modem

capability to their G3 operator interface terminal. GSM/GPRS is the most
prevalent cellular technology in today's markets. GPRS can be used for services
such as Wireless Application Protocol (WAP) access, Short Message Service
(SMS), and for Internet communication services such as email and World Wide
Web access. The G3GSM modem option card is quad-band, allowing it to work
in frequencies across Americas, Europe and Asia. US and Canada work in the
850/1900 MHz bands, while Europe, Middle East, Africa and most of Asia work
in the 900/1800 MHz GSM/GPRS frequencies.

The G3GSM requires the addition of a SIM (Subscriber Identity Module)

card, which is inserted into the holder prior to installation of the G3GSM card.
The SIM card securely stores the service-subscriber key (IMSI) used to identify
a subscriber, and is used to connect to the network to obtain an IP address from
the provider.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the

literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not use the controller to directly command motors, valves, or other

actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.

CONTENTS OF PACKAGE

- G3GSM Option Card
- Cable already attached to G3GSM option card
- Hardware pack consisting of three screws.
- This hardware bulletin

ORDERING INFORMATION

MODEL NO.

DESCRIPTION

PART NUMBER

G3GSM

GSM/GPRS Modem Option Card for G3 operator
interface

1

G3GSM000

ANT

Quad-band, 6 inch, direct mount GSM/GPRS
cellular antenna

2

G3QANT00

SFCRM2

Crimson 2.0

3

SFCRM200

1

Antenna is NOT included with the card. Must be purchased separately if

needed.

2

Contact your Red Lion distributor or visit www.redlion.net/g3 for complete

selection of accessories.

3

Use this part number to purchase Crimson on CD with a printed manual,

USB cable, and RS-232 cable. Otherwise, the software can be downloaded
from www.redlion.net/g3.

MODEL G3GSM - GSM/GPRS CELLULAR MODEM OPTION CARD FOR G3

OPERATOR INTERFACE TERMINALS

Bulletin No. G3GSM-B
Drawing No. LP0775
Released 10/10

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

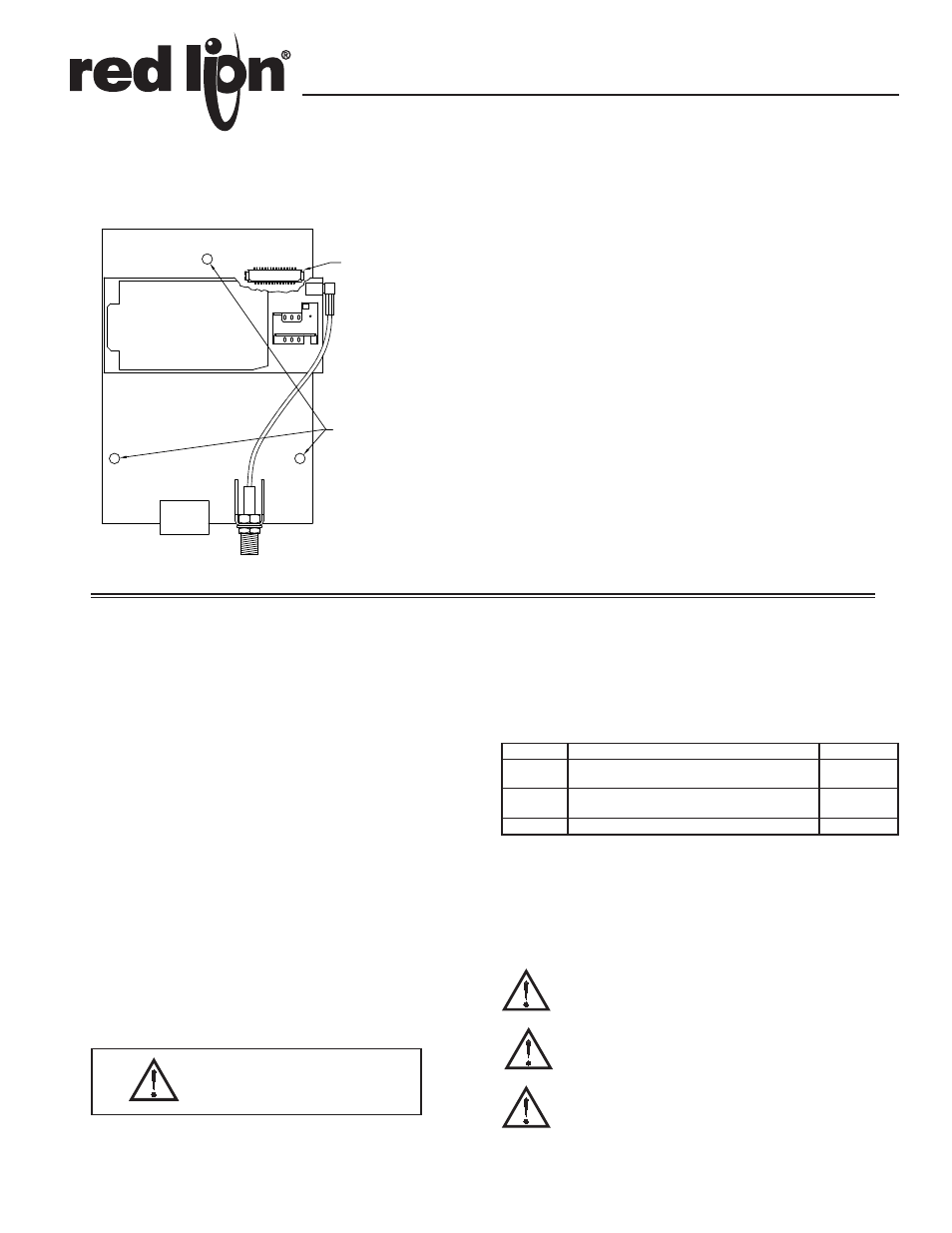

POWER

ANTENNA

(3 PLACES)

MOUNTING HOLES

CONNECTOR

(SIDE 2)

 CONFIGURED USING CRIMSON ® 2.0 SOFTWARE

 INSTALLS INSIDE A G3 OPERATOR INTERFACE TERMINAL

 INSTALLATION AND CONNECTION HARDWARE INCLUDED

WITH CARD

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2

THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, HAZARDOUS LOCATIONS,
OR NON-HAZARDOUS LOCATIONS ONLY

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA
IS KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
