DESCRIPTION
Ethernet (RJ-45) and USB panel-mount connectors are available for use in
those installations where access to HMI, Data Station Plus or Modular
Controller modules is awkward, or where easy access to Ethernet and/or USB
connections is simply desirable. These connectors are supplied with an o-ring
sealed cap that maintains their IP68 dust- and water-proof rating. The screw cap
is easily removed for quick access to the Ethernet and USB connections. All
connectors are provided with panel sealing gasket and o-ring sealed screw cap.
Standard patch cables are used to connect the device to the rear of the panel-
mount connector.

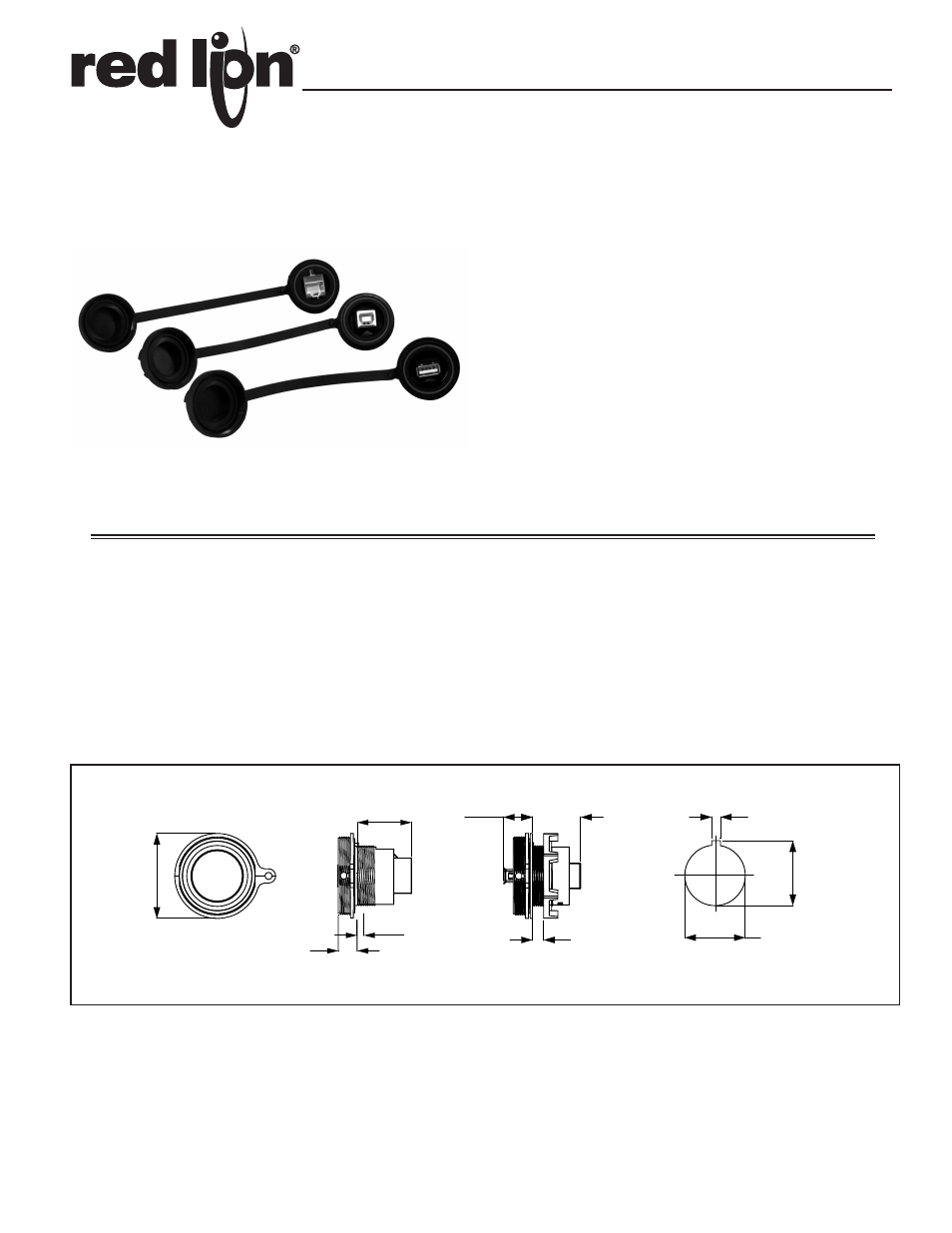

MODEL CPNL - ETHERNET AND USB PANEL-MOUNT CONNECTORS
Bulletin No. G3CPNL-A
Drawing No. LP0861
Released 08/13
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
 DUST- AND WATER-PROOF TO IP68 WITH SEALING CAP
ATTACHED
 CAT 5E COMPLIANT ETHERNET CONNECTION
 ETHERNET DATA RATE UP TO 100MHZ
 USB VERSION 2.0 PERFORMANCE
 USB HOT PLUGGABLE, STANDARD 4 POLE INTERFACE
Version 1: A type USB front of panel, standard B type at rear
Version 2: B type USB front of panel, standard A type at rear
Ш 1.09 (27.7)
Ш 1.07 (27.18)
0.13 (3.18)
0.12 (3.05)
1.14
1.13 (Ш38.1)
(21.6)
(12.9)
(8.45)
0.2 (5.2)
0.03 (0.8)
(24.5)
0.96
Ш1.5
0.33
Max Panel
Min Panel
0.85 0.51
(28.83
)
(28.7)
0.2 (5.2)
0.03 (0.8)
Max Panel
Min Panel
ETHERNET USB
DIMENSIONS In inches (mm)
