Red Lion XCDN User Manual
General description, Safety summary, Ordering information
CONFIGURED USING CRIMSON SOFTWARE (VERSION 2.0 OR
LATER)
DIGITALLY ISOLATED DeviceNet PORT CAPABLE OF
COMMUNICATING WITH ANY DeviceNet MASTER
EASY INSTALLATION
GENERAL DESCRIPTION
Both the Modular Controller Master (enhanced models) and Data Station
Plus contain a proprietary expansion port which provides a high speed, parallel
architecture that extends the functionality and flexibility of the platform. This
approach allows these products to evolve concurrently with the latest advances
in communications and standards, without sacrificing performance. This high
bandwidth channel has significantly greater throughput when compared to the
traditional (external) serial gateway approach.
The XCDN option card adds a DeviceNet slave communication port to the
series. This isolated card protects user equipment from potentially harmful
ground loops while providing the ability to communicate to any high speed
DeviceNet master. Additionally, the XCDN connector is pluggable for easy
removal of the Modular Controller Master or Data Station Plus from the
DeviceNet bus without disturbing communications with other devices on the
bus.
The XCDN communication card is easily installed by removing the blank
expansion port cover of your Modular Controller or Data Station Plus, and
plugging the XCDN card into the expansion port. Configuration is simple using
Red Lion's free Crimson 2.0 software.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
ORDERING INFORMATION
1
Use these part numbers to purchase Crimson 2.0 on CD with a printed
manual, USB cable and RS-232 cable. Otherwise, download free of charge
from www.redlion.net.
CONTENTS OF PACKAGE
- XCDN option card
- This hardware bulletin
SPECIFICATIONS
1. POWER REQUIREMENTS: 24 V @ 50 mA max. Power is supplied to the
option card from the main board of the Modular Controller Master or Data
Station Plus.
2. COMMUNICATIONS:
DeviceNet Port: The DeviceNet port has format and baud rates that are
software programmable up to 500K baud and are digitally isolated. This port
may be configured for various DeviceNet protocols. Check www.redlion.net
for currently supported protocols.
Isolation from XCDN Communication ports Modular Controller Master
or Data Station Plus: 1000 VDC for 1 minute.
3. CERTIFICATIONS AND COMPLIANCES:
Refer to main unit manual or “Agency Approvals” section of Red Lion’s
website for agency certifications.
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for Measurement,
Control and Laboratory use.
Reference Modular Controller Master or Data Station Plus unit for EMC
specifications
4. ENVIRONMENTAL CONDITIONS:
Refer to the specifications of the Modular Controller Master or Data Station
Plus you are installing this card in.
5. CONSTRUCTION: For indoor use only. Installation Category II, Pollution
Degree 2.
6. INSTALLATION REQUIREMENTS: See “Installing the XCDN Option
card” for more details.
7. WEIGHT: 2.3 oz (65.2 g)

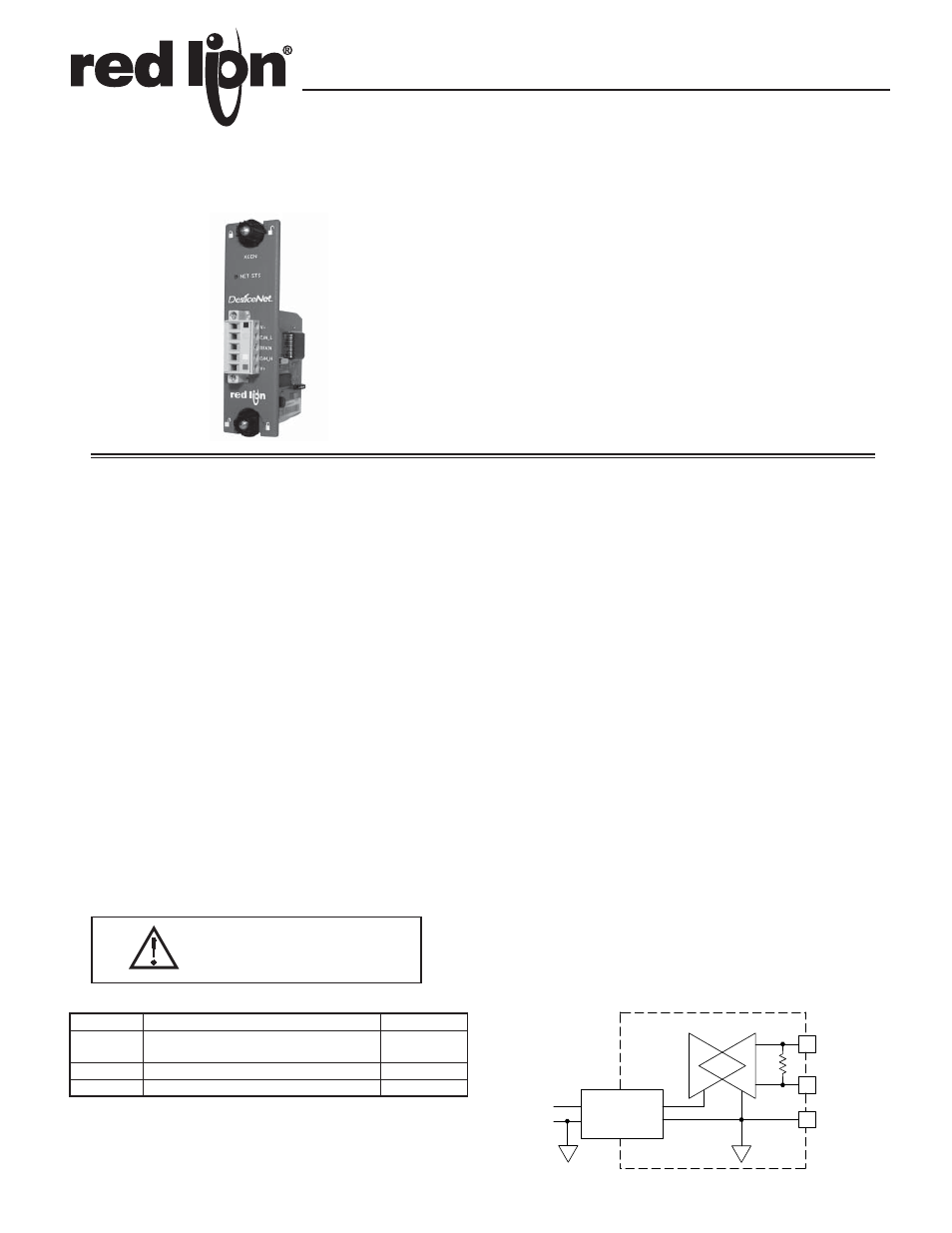

MODEL XCDN - DeviceNet OPTION CARD FOR DATA STATION PLUS AND
MODULAR
CONTROLLER
Bulletin No. XCDN-A
Drawing No. LP0668
Released 01/10
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL NO.
DESCRIPTION
PART NUMBER
XCDN
XCDN0000
SFCRM2
Crimson 2.0 with G3/Data Station Manual
1
SFCRM200
SFCRM2
Crimson 2.0 with Modular Controller Manual
1
SFCRM2MC
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
1
DeviceNet option card for Modular Controller
or Data Station Plus
TX/RX
1
2
4
CAN_H
CAN_L
V -
+
-
ISOLATING
DC : DC
A
B
BLOCK DIAGRAM
