Red Lion G3QANT - Manual

1
DESCRIPTION
For use with the G3GSM or XCGSM Cellular Modem Option Cards, this
antenna mounts directly to the connector on the option card itself. In most cases,
this antenna will provide a strong and continuous cellular signal. For
installations where cell signal is weak or intermittent, a remotely-located panel-
mount antenna is available.
SPECIFICIATIONS
1. FREQUENCY: Quad-band 850 MHz, 900 MHz, 1.8 GHz and 1.9 GHz
operation
2. RADIATION PATTERN: Omni directional
3. MOUNTING METHOD: 90º swivel mount
4. CONNECTOR: SMA connector
5. PEAK GAIN: 0dBi gain
6. IMPEDANCE: 50 Ohm
7. HOUSING: Polycarbonate housing
MODEL G3QANT - DIRECT-MOUNT AND PANEL-MOUNT GSM/GPRS
MULTI-BAND ANTENNAS
Bulletin No. ANTEN-X
Drawing No. LP0857
Effective 11/10
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBER
G3QANT
Direct-mount GSM/GPRS Antenna G3QANT00
Panel-mount GSM/GPRS Antenna G3QANTPM

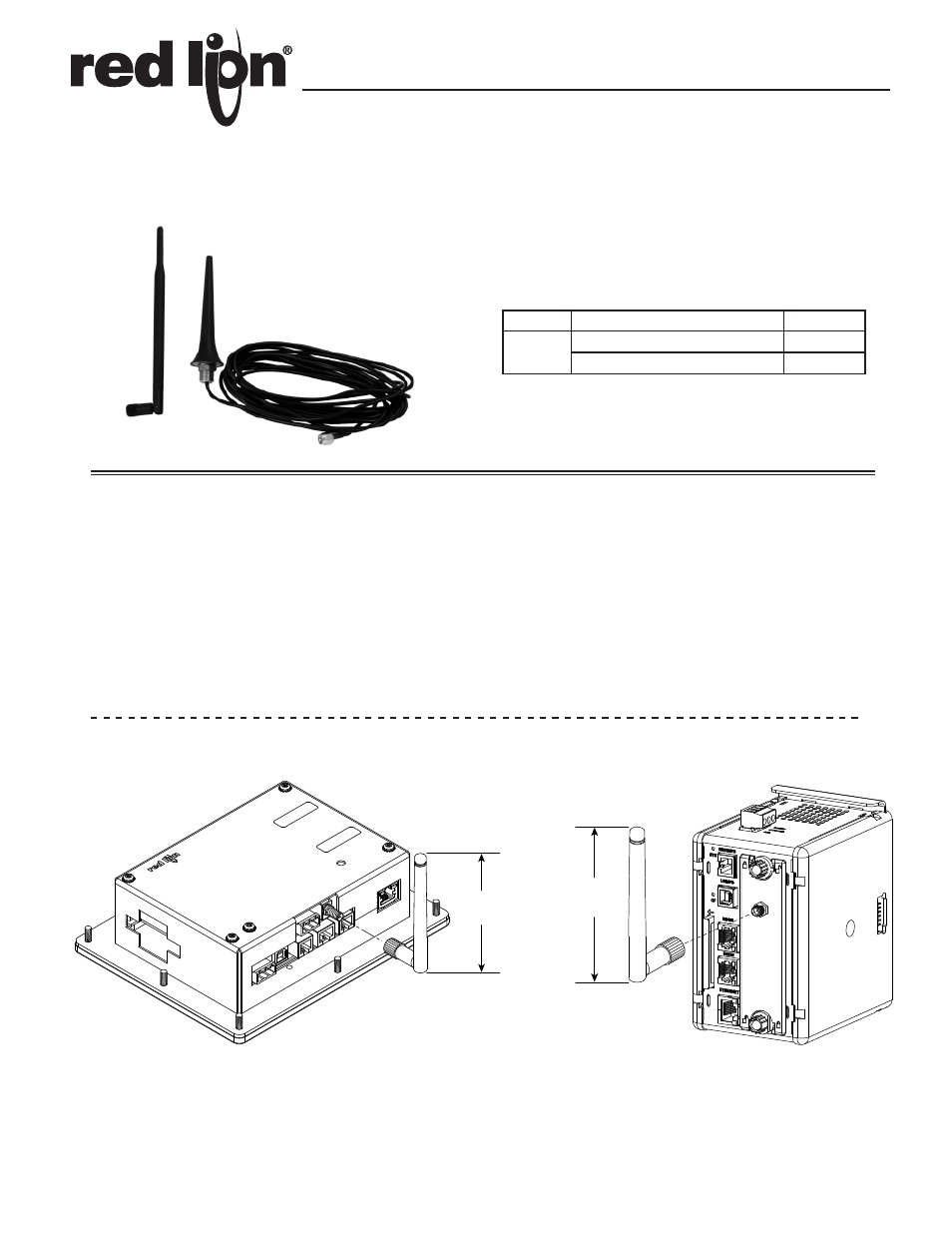

G3QANT00 - DIRECT-MOUNT GSM/GPRS ANTENNA
3.43”
(87 mm)
3.43”
(87 mm)
INSTALLATION
