5.

In the Available LDEVs table, select the LDEV that you want to be the P-VOL and click Add.
The LDEV moves to the Selected LDEVs table.

6.

Click Next.

7.

In the Select Secondary Volumes window, pair the LDEV to the P-VOL LDEV. Repeat this step
until all LDEVs are paired with a P-VOL LDEV:

1.

Select the S-VOL LDEV ID from the Available LDEVs table.

2.

(If you specified multiple P-VOLs) From the Selected Pairs table, select the LDEV ID for the
P-VOL to which you want the S-VOL to be paired, and click Set.

NOTE:

If you do not select a P-VOL, the selected S-VOL is paired to P-VOLs in the order

they are listed in the table.

8.

Sort the Available LDEVs and Selected Pairs tables according to the capacity you select in the
Capacity list.

9.

You can do the following from this window:

Correct mirror unit numbers by selecting the line in the Selected Pairs table and clicking
Edit Mirror Unit.

Remove a configuration. To do this, select the line you want to remove from the Selected
Pairs table and click Remove.

For more information about creating unequal pair configurations and removing configurations,
see

“Example 3”

.

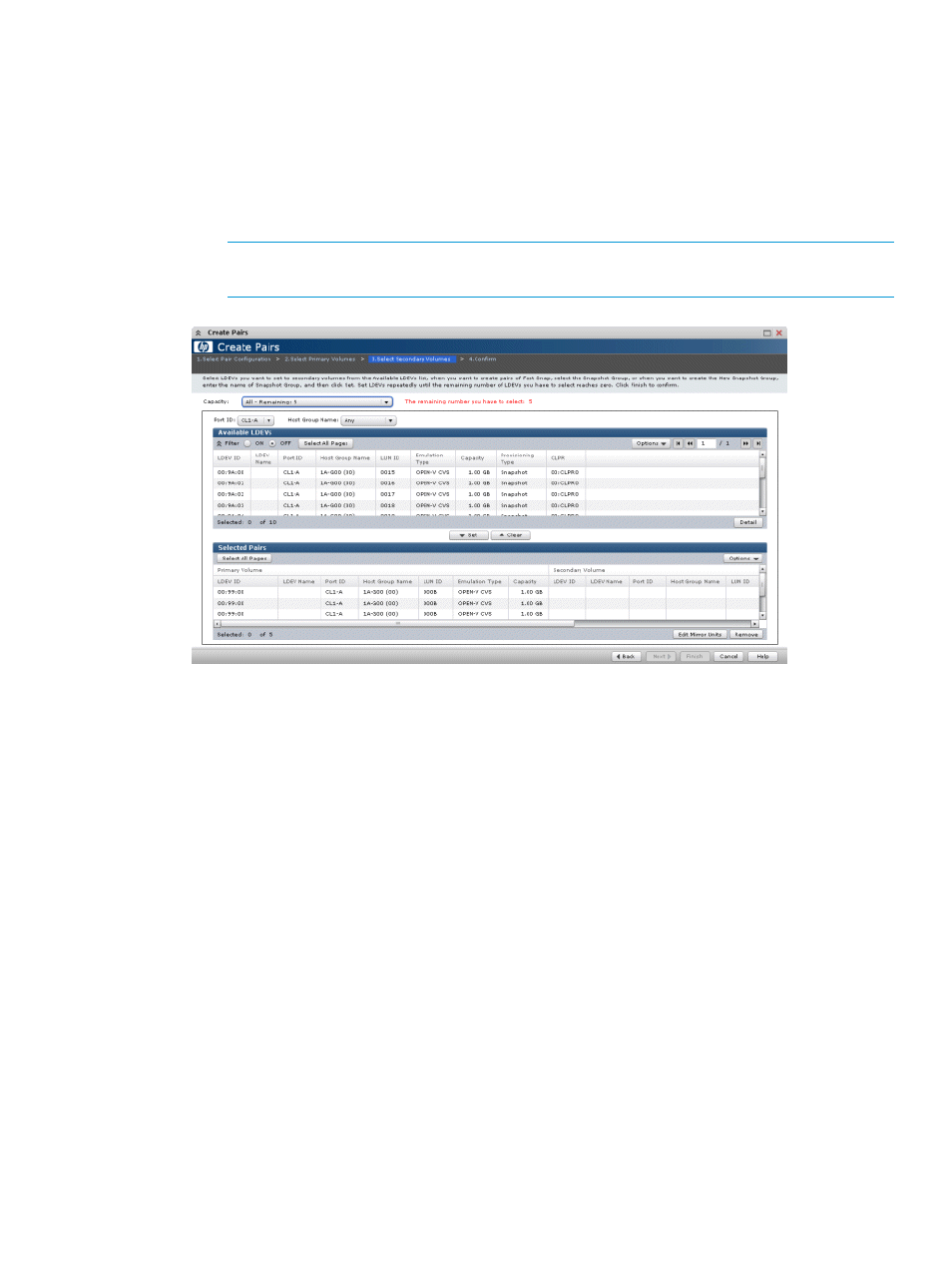

The following figure shows the right-side of the Select Secondary Volumes window.

Pair creation workflow

39
