Understanding the Storage Management Appliance Software

11

Storage Management Appliance Software V2.0 User Guide

Navigating the User Interface

The Storage Management Appliance provides a centralized point for managing

and monitoring storage elements. The user interface is divided into two

panes—Session and Content panes (

Figure 5

).

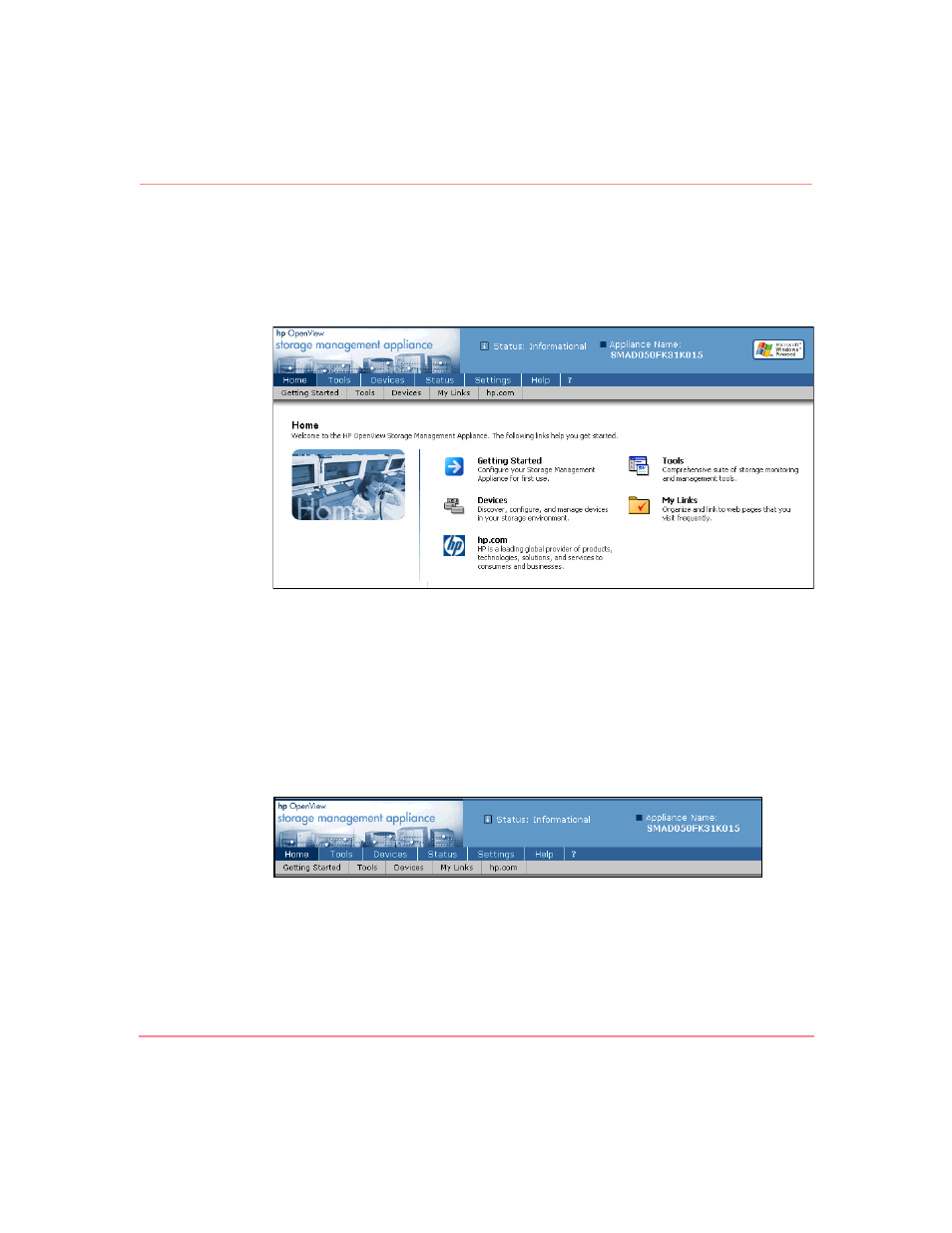

Figure 5: Storage Management Appliance Software home page

Session Pane

The Session pane is located in the upper portion of each page and consists of an

informational section and the navigation bars. The Session pane displays the

Appliance name, system status, and the navigation bars.

Figure 6: Session pane

1

Session Pane

2

Content Pane

1

2

1

Product name, system status indication,

and appliance name

2

Primary navigation bar (available from

every page)

3

Secondary navigation bar (submenus for the selected primary option)

1

2
3
