9.10 Status Output Setting
Click the “STATUS” button on the Menu screen, and the following screen appears.

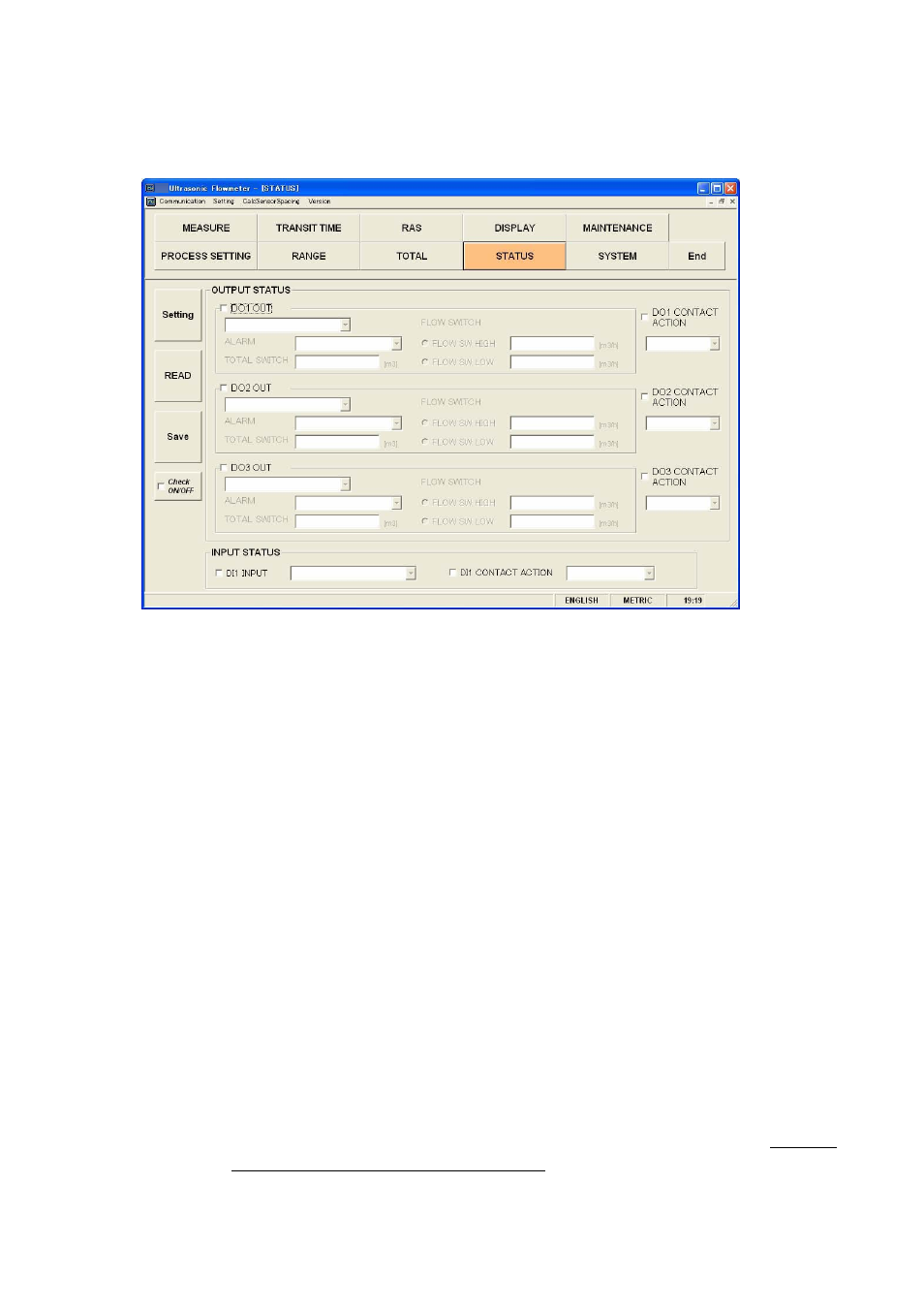

Fig. 9-17 < Status output setting screen >
To select an item to be set or read, set the relevant check box to ON ( ;). Not to select (or to reset the selection),
set the relevant check box to OFF ( †). For details of “Status output setting,” refer to Tables 9-12 and 9-13 on the
next page.
Ɣ DO1, DO2, DO3 output: Items other than alarm, flow rate switch, and total switch
Display invalid................... Alarm, flow rate switch (Flow switch High/Flow switch Low), total switch
Ɣ DO1, DO2, DO3 output: Alarm
Display
valid...................... Alarm
Display invalid................... Flow rate switch 㧔Flow switch High/Flow switch Low㧕, total switch
Ɣ DO1, DO2, DO3 output: Flow rate switch
Display valid...................... Flow rate switch 㧔Flow switch High/Flow switch Low㧕
Display invalid................... Alarm, total switch
Ɣ DO1, DO2, DO3 output: Total switch
Display valid...................... Total switch
Display invalid................... Alarm, flow rate switch (Flow switch High/Flow switch Low)
[Setting]....................... Sends the setting of the selected item (check box set to ON ( ;)), reflecting the response
value on the setting.
[READ] ....................... Reads the setting of the selected item (check box set to ON ( ;)), reflecting the response
value on the setting.
[Save] .......................... Reflects the setting sent by pressing the [Setting] button on the flow transmitter. Be sure to
press the [Save] button if the setting is changed.
