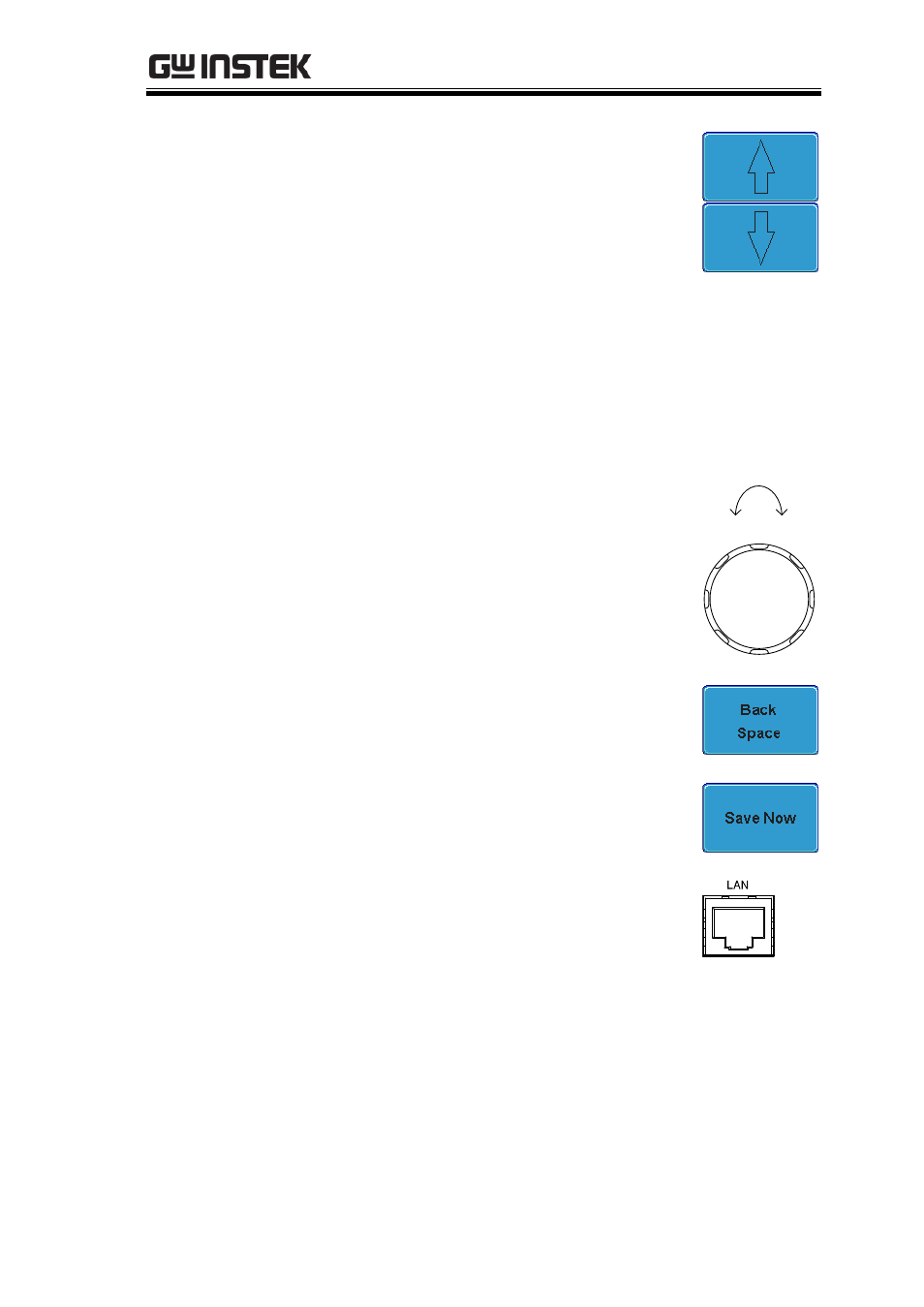

background image

INTERFACE OVERVIEW

9

5. Use the Up and Down arrows on

the side menu to navigate each
Ethernet configuration item.

Items

MAC Address, Instrument Name,
User Password, Instrument IP
Address, Domain Name, DNS IP
Address, Gateway IP Address,
Subnet Mask
Note: HTTP Port is fixed at 80.

6. Use the Variable knob to highlight

a character and use the Select key
to choose a character.

VARIABLE

Left

Right

Press Backspace to delete a
character.

7. Press Save Now to save the settings.

8. Connect the Ethernet cable to the

rear panel of the GDS-3000.
