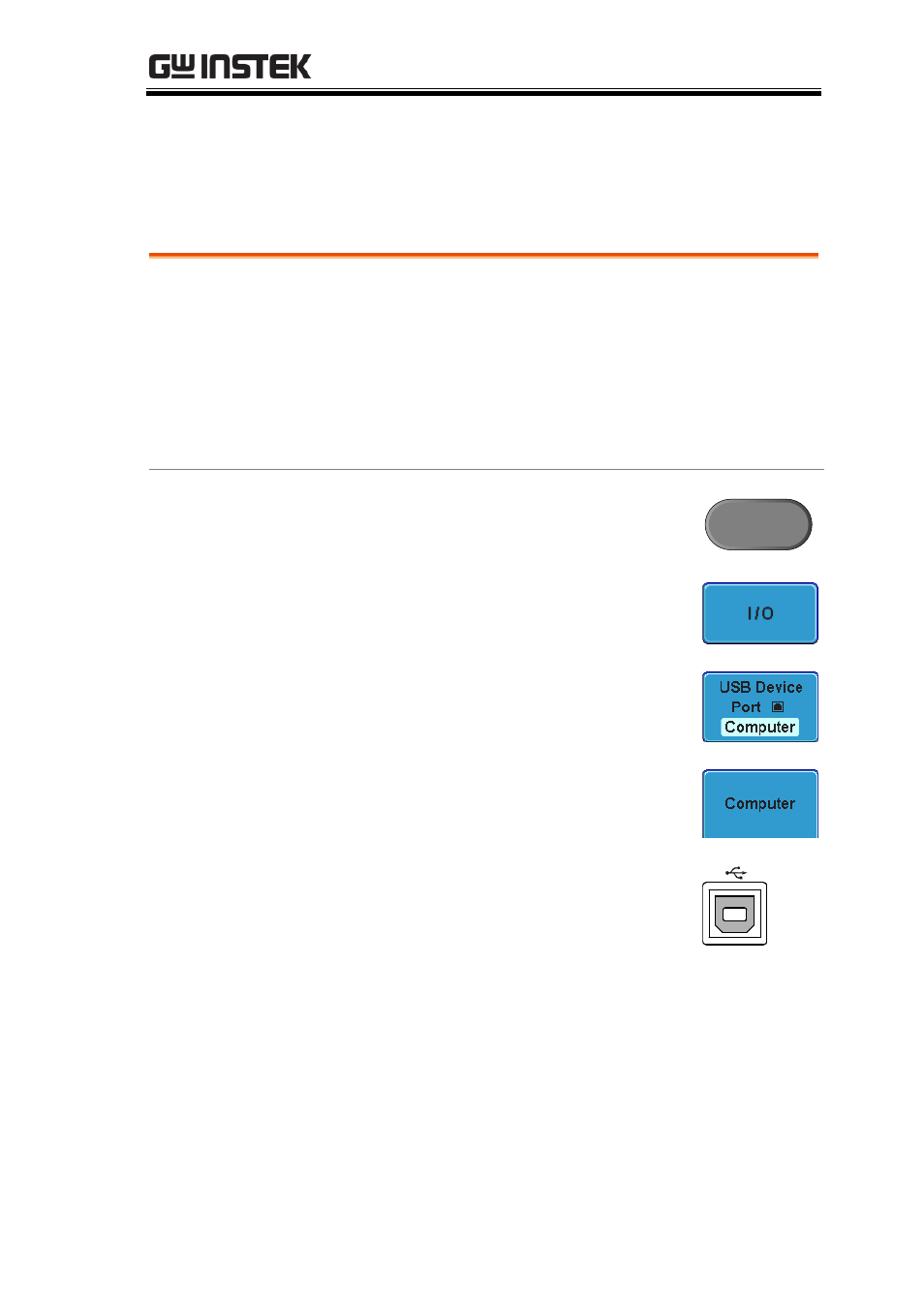

background image

INTERFACE OVERVIEW

5

Interface Configuration

Configure USB Interface

USB
configuration

PC side connector

Type A, host

GDS-3000 side
connector

Type B, slave

Speed

1.1/2.0 (Full speed)

USB Class

CDC (communications device
class)

Panel operation

1. Press the Utility key.

Utility

2. Press I/O from the bottom menu.

3. Press USB Device Port from the

side menu and choose Computer.

4. Press Computer from the side

menu.

5. Connect the USB cable to the rear

panel slave port.

6. When the PC asks for the USB driver, select

dso_vpo.inf downloadable from GW website,
www.gwinstek.com, the GDS-3000 product
corner. The driver file automatically sets the
GDS-3000 as a serial COM port.
