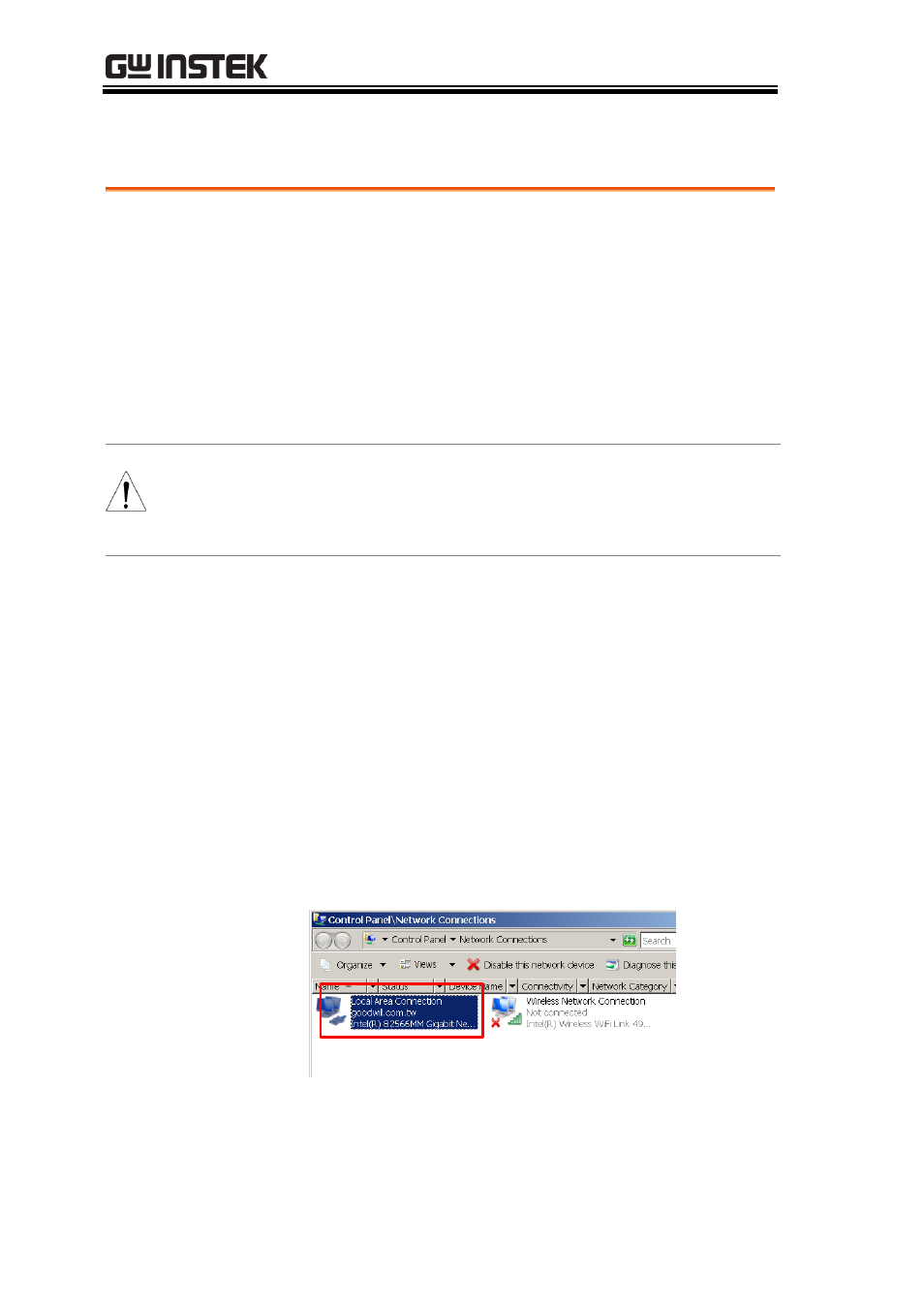

background image

GDS-3000 Programming Manual

12

Using the Ethernet Interface

Background

The following example will show you how to use
the Ethernet interface to access the scope from a
browser and how to setup the scope as a socket
server for remote control using the National
Instruments Measurement and Automation
Explorer (NI MAX) software. When using the
MAX software the scope is setup to communicate
with the software over a specific port.

Note

For further information about National
Instruments and the NI MAX software, please see
the NI website at www.ni.com.

Panel operation

1. Ensure that your PC and the scope are

connected to the same LAN.

2. Go to Network Connections in the Windows

Control Panel. For example:

Control Panel>Network and Sharing>Manage
Network Connections.

3. Double click on the Local Area Connection icon

that is used by the PC/DSO.
