bsr Bootstrap router
flow-count Show flowcache counters
hw-resource PIM hw resources
interface PIM interface
neighbor PIM neighbor states
resource PIM resources
rp-set List of rendezvous point (RP) candidates
traffic Active multicast traffic
PIM Sparse
Brocade devices support Protocol Independent Multicast (PIM) Sparse version 2. PIM Sparse provides
multicasting that is especially suitable for widely distributed multicast environments. The Brocade
implementation is based on RFC 2362.
In a PIM Sparse network, a PIM Sparse device that is connected to a host that wants to receive
information for a multicast group must explicitly send a join request on behalf of the receiver (host).
PIM Sparse devices are organized into domains. A PIM Sparse domain is a contiguous set of devices
that all implement PIM and are configured to operate within a common boundary.

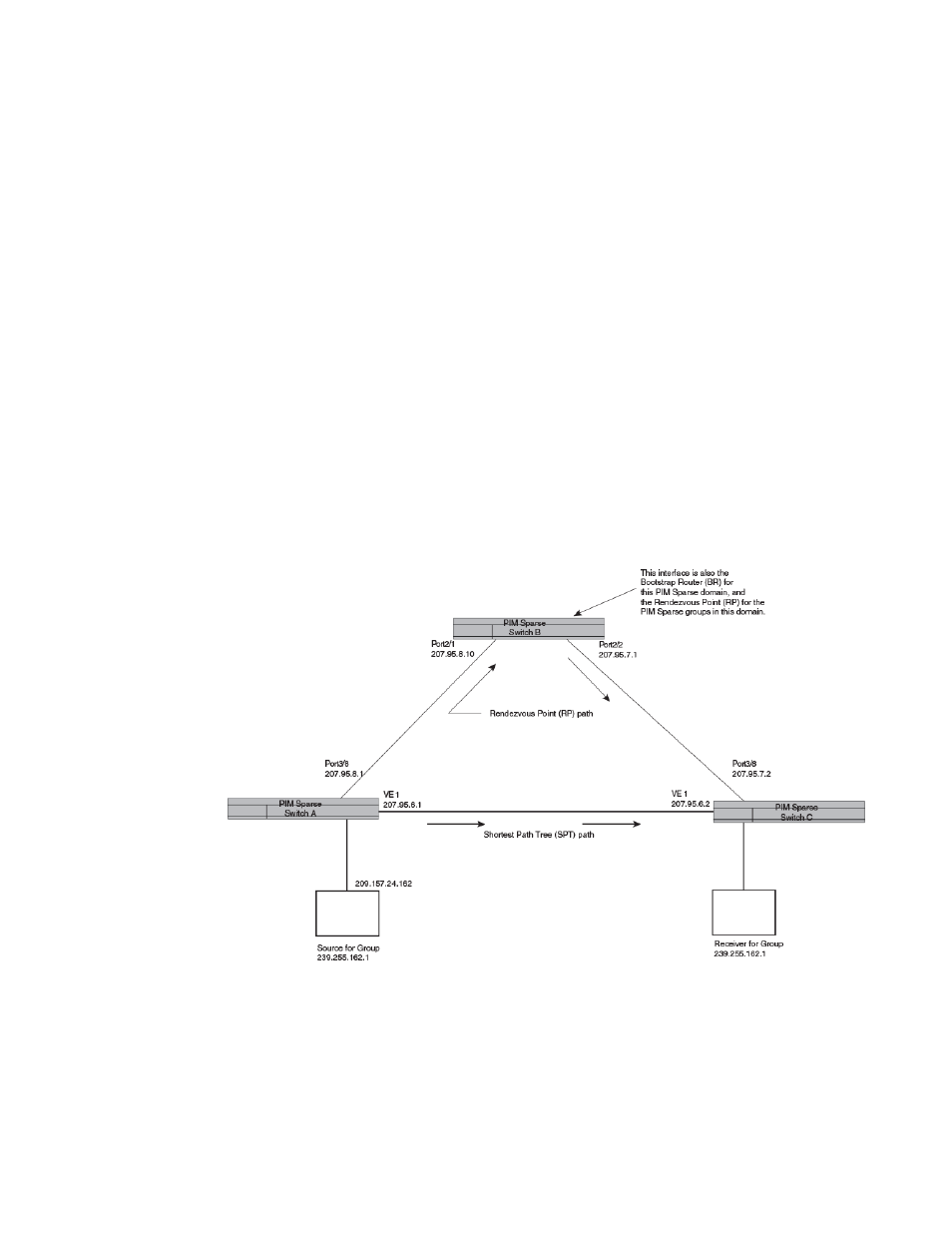

Figure 5 shows a
simple example of a PIM Sparse domain. This example shows three devices configured as PIM Sparse
devices. The configuration is described in detail following the figure.
FIGURE 5 Example PIM Sparse domain
PIM Sparse device types
Devices that are configured with PIM Sparse interfaces also can be configured to fill one or more of the
following roles:
PIM Sparse
