<7. OPERATION FOR THE BRAIN TERMINAL (BT200)>
7-4
IM 01F06A00-01EN

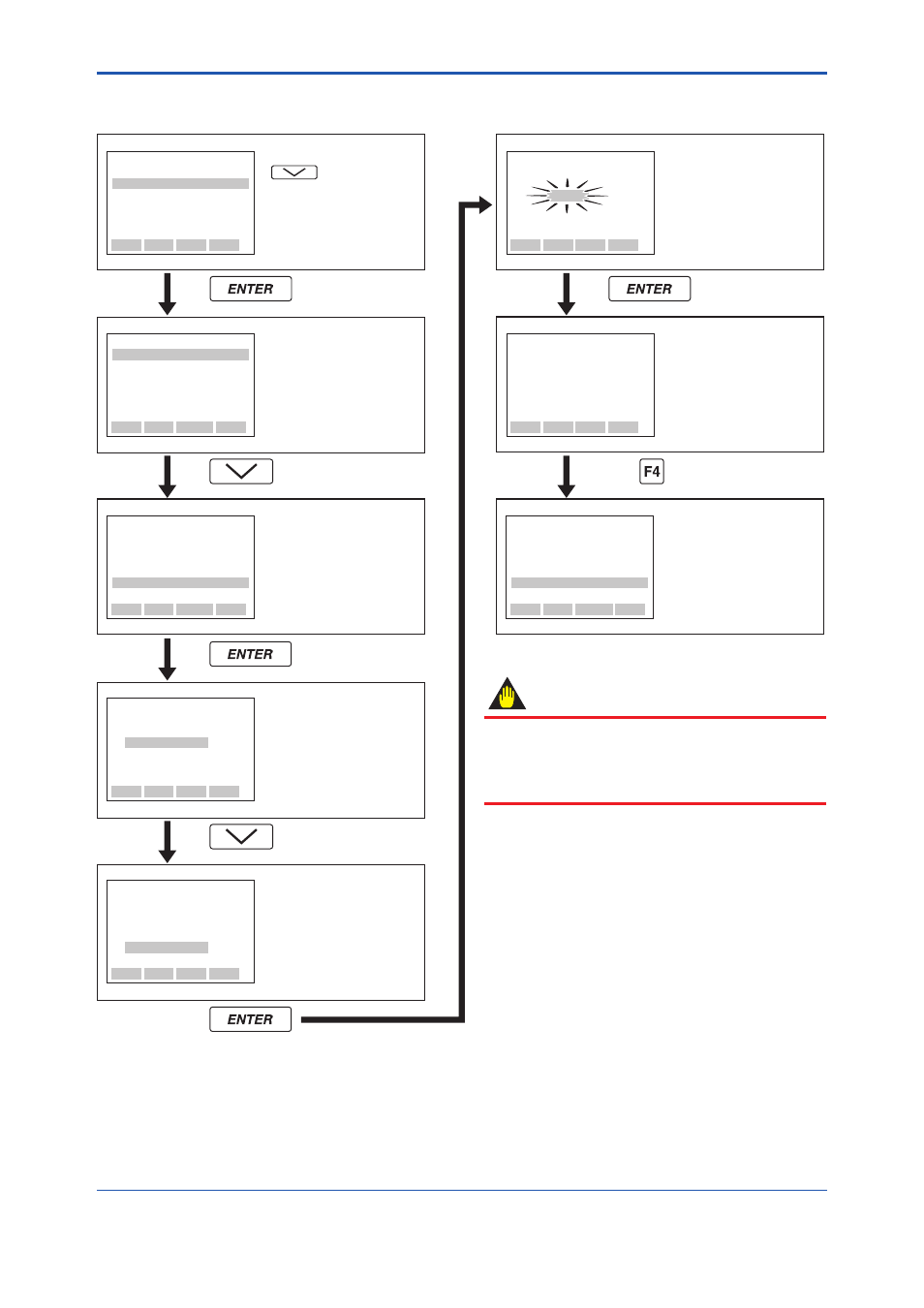

(2) Setting Output
Example: Change the pulse output to alarm output
F0705.ai
Enter menu item, and press
“ ” key.
Move the inverse video bar
to “B : EASY SETUP”.
Item B menu is displayed.
Move the inverse video bar
to “B20 : CONTACT OUT”.
Pressing “ENTER”, cause
the data setup screen to be
displayed.
If the security screen
appears,
enter the security code.
Move the inverse video bar
to “ALARM”.
2 Times
4 Times
Pressing the enter key,
inverse video bar is flashed.
The data setting can be
completed.
If data setting is missing,
press “F3” key and rewrite
the data.
Setting is completed.
The screen returns to the
preceding screen when the
“F4” (ESC) key is pressed.
MENU
A:DISPLAY
B:EASY SETUP
C:BASIC SETUP
D:AUX. SETUP
E:METER SETUP
H:ADJUST
HOME SET ADJ ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
SCALED PULSE
DATA DIAG PRNT ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
SCALED PULSE
DATA DIAG PRNT ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
ALARM
DATA DIAG PRNT ESC
SET
B20:CONTACT OUT
SCALED PULSE
< OFF >
< SCALED PULSE >
ESC
SET
B20:CONTACT OUT
SCALED PULSE
< FREQUENCY >
< ALARM >
ESC
SET
B20:CONTACT OUT
SCALED PULSE
ALARM
Print off
F2:printer on
FEED POFF NO
SET
B20:CONTACT OUT
ALARM
FEED NO OK
IMPORTANT
After setting a parameter, keep the power on for
at least 30 seconds.
If the power of fl owmeter is turned off, a
parameter setting is released.
