3.1.9. Typical Connections to Bushing Mount CT’s on Delta Transformer

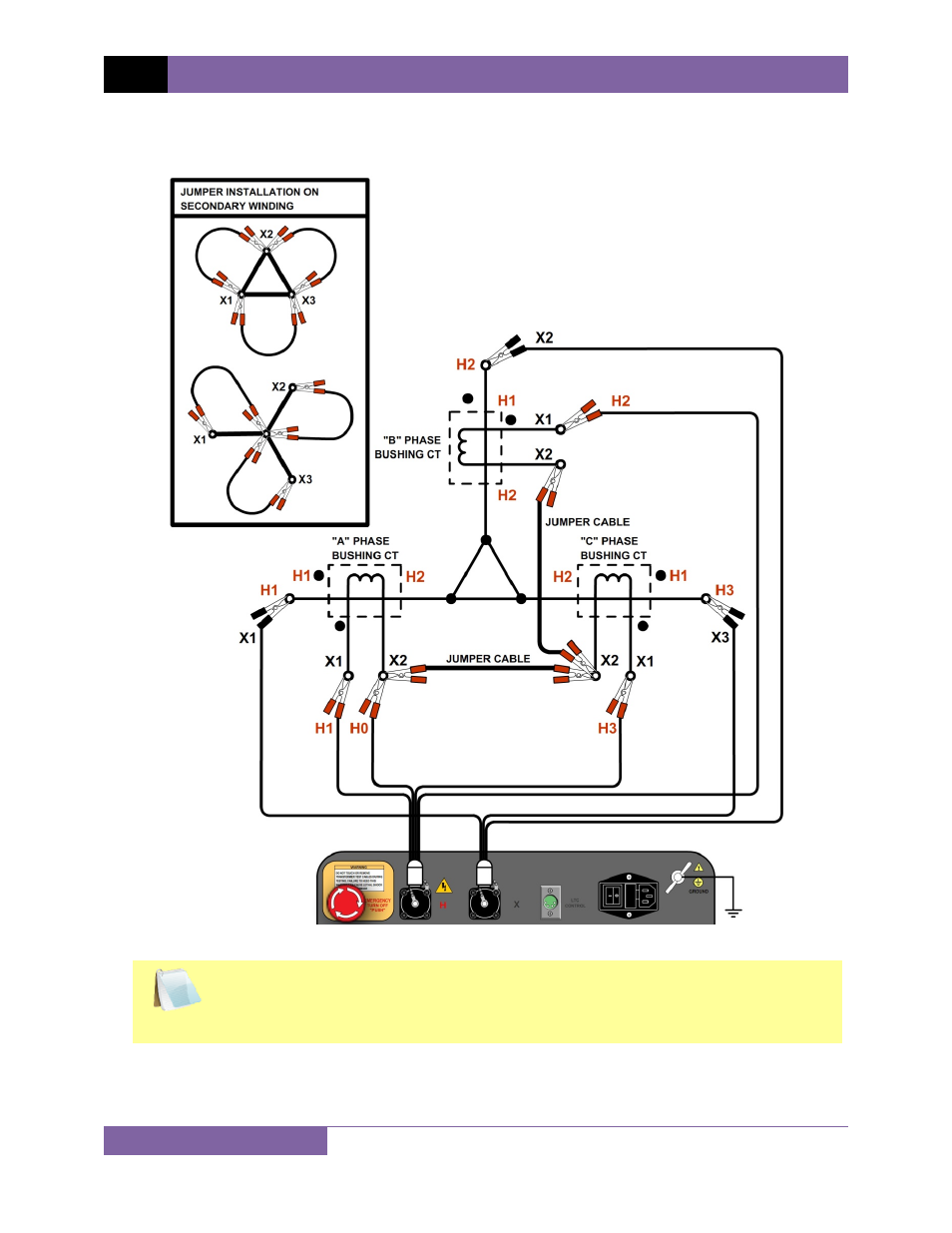

Figure 14. Typical Connections to Bushing Mount CT's on Delta Transformer
NOTE
The CT turns-ratio is obtained by performing a Ynd11 test.
