75

12. Precautions for Use

The user connector comes with a mating 16-pin plug.
Connector pins 1 to 15 can be used. Pin 16 is connected to a shield wire and cannot be used as a signal wire.
Use a cable with an outer diameter of

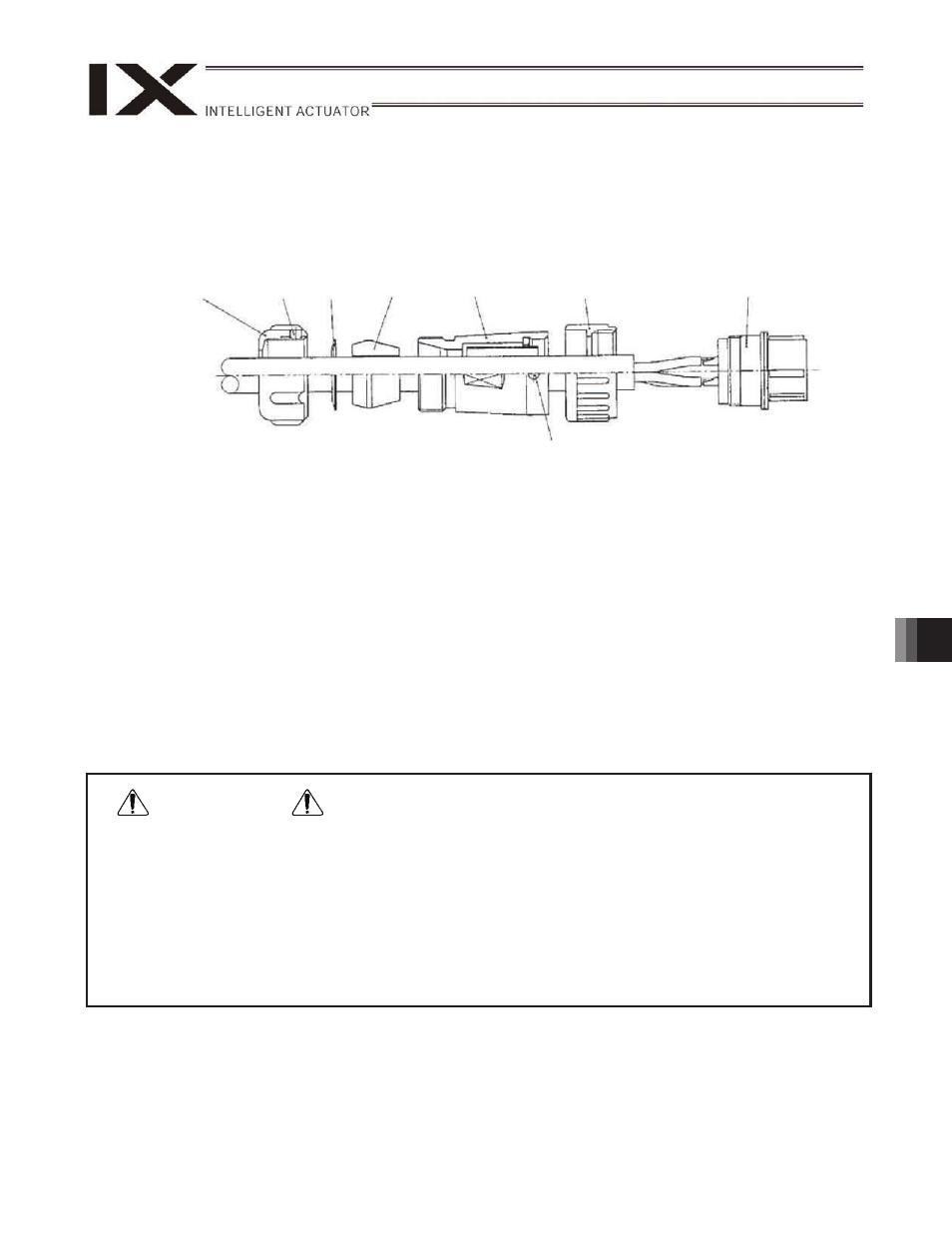

‡13.1 to 15.0. The wiring method for the supplied connector is shown

below.

[1]: Screw the barrel into the end bell and secure with setscrew A.
[2]: Push the cable gasket and washer into the end bell and screw in the clamp nut by holding the end bell in

position.

[3]: Move the cable back and forth and to the left and right to ensure smooth movement, tighten the clamp nut

again to the specified torque, and secure with screw B.

~ Tightening torque for each screw

x End bell:

10 kgf-cm to 15 kgf-cm

x Clamp nut:

15 kgf-cm to 20 kfg-cm

x Setscrew A, B:

2 kgf-cm to 3 kgf-cm

If the waterproof user connector and user piping joint are not used, put the supplied cap and blind plug to seal
the openings, respectively. If not, water and dust will enter.

x Before commencing wiring/piping work, turn off the power to the controller and the power/air supplies to the

robot. Failure to do so may cause the robot to malfunction.

x Use cables and tubes within their specifications. Failure to do so may result in fire or short circuit due to an

overheated cable, or may cause air leaks.

x Connect the shielded cable to the hood. Otherwise, the robot may malfunction due to noise.

x If the user connector is not used, put the cap to seal the opening. If not, water and dust will enter.

x Tighten the connector to the specified torque.

x If the outer diameter is smaller than the one specified for the applicable cable, use tape, etc., to adjust the

outer diameter before installing.

Clamp nut

Setscrew B Washer

Cable
gasket

End bell

Coupling nut

Barrel

Setscrew A

Caution

Warning
