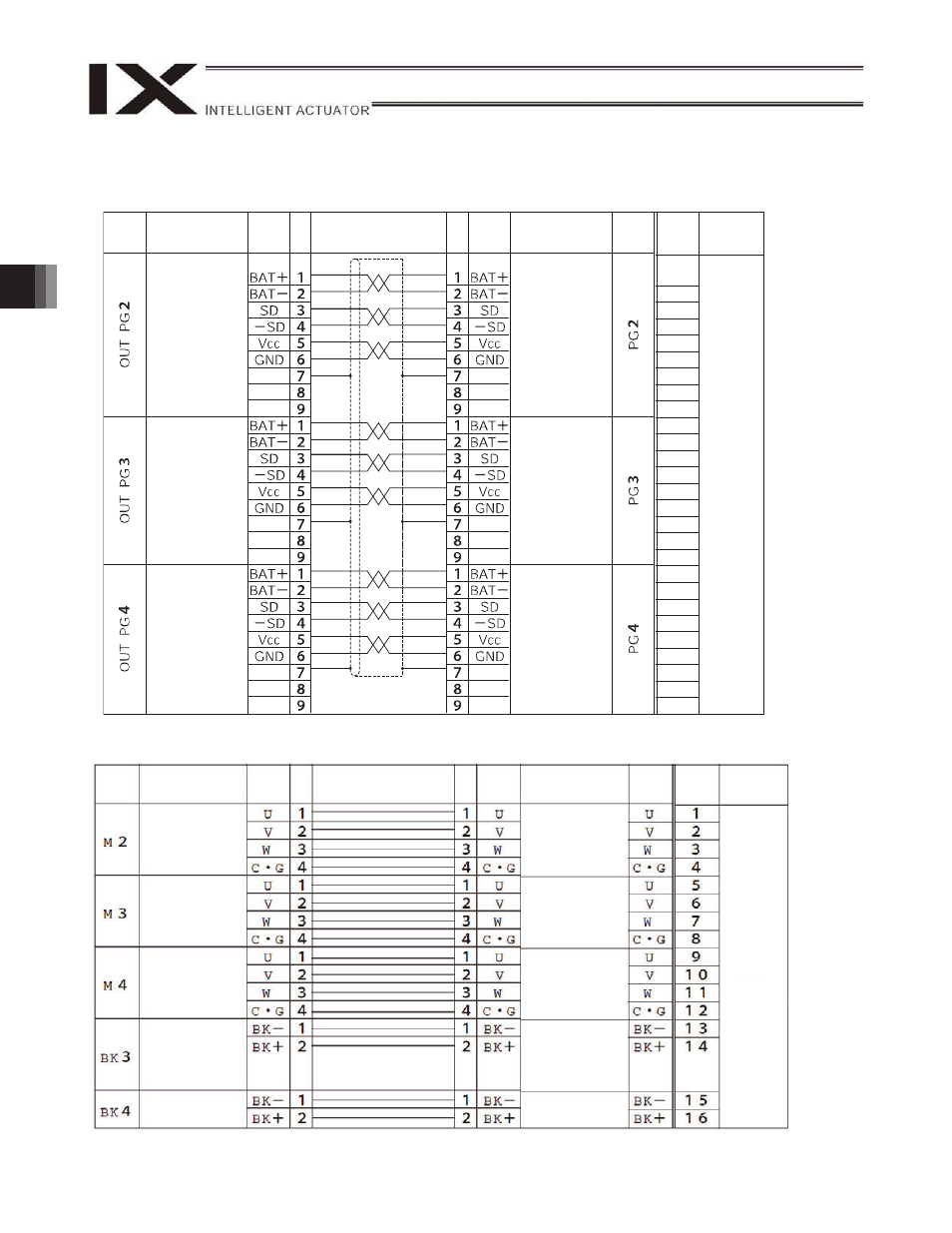

4. W

iring Diagram

IX-NNW2515H/3515H
(1) PG cables (inside robot)

DWG No. 1068795*

Base end

Arm end

(2) M cables (inside robot)

DWG No. 1068794*

Base end

Arm end

Tube

symbol

Connector

Signal Pin

No.

Connection

ID No.

Cable

Mini Universal
MATE-N-LOK
plug housing
172169-1 (by
Tyco Electronics
AMP)

Shield

Double-brazed
crimp socket
DF11-8DS-2C (by
Hirose Electric)

Same as above

Flexible

cable

10p x

AWG26

Shielded

cable

Shield

Pin
No.

Connector

Signal

Tube

symbol

Same as above

Same as above

Same as above

Shield

1R/sky blue

Green

Mini Universal
MATE-N-LOK panel
installation socket
housing 172159-1
(by Tyco Electronics
AMP)

Flexible

cable

16 x

AWG18

Mini Universal
MATE-N-LOK plug
housing 172167-1
(by Tyco
Electronics AMP)

Same as above

Same as above

Mini Universal
MATE-N-LOK plug
housing 172165-1
(by Tyco
Electronics AMP)

Same as above

Same as above

Same as above

Same as above

Mini Universal
MATE-N-LOK panel
installation socket
housing 172157-1
(by Tyco Electronics
AMP)

Shield

Shield

Shield

1B/sky blue

1R/pink

1B/pink

1R/grass green

1B/grass green

1R/orange

Green

1B/orange

1R/gray

1B/gray

2R/sky blue

2B/sky blue

2R/pink
2B/pink

2R/grass green

2B/grass green

2R/orange

2B/orange

Green

Tube

symbol

Connector

Signal Pin

No.

Connection

ID No.

Cable

Pin
No.

Connector

Signal

Tube

symbol
