71

12. Precautions for Use

Quick joint

‡4

(red)

ALM (indicator)

Quick joint

‡4

(black)

Spacer for user part installation

Quick joint

‡4

(white)

BK SW
Brake-release switch

User connector

M cable

Brake power cable

T-slot for peripheral
installation (M3, M4)

Air tubes
(

‡

4 x 3 pcs.)

U cable
(outside robot)

PG cable
(outside robot)

BK power cable (outside robot)

Panel Rear

Panel

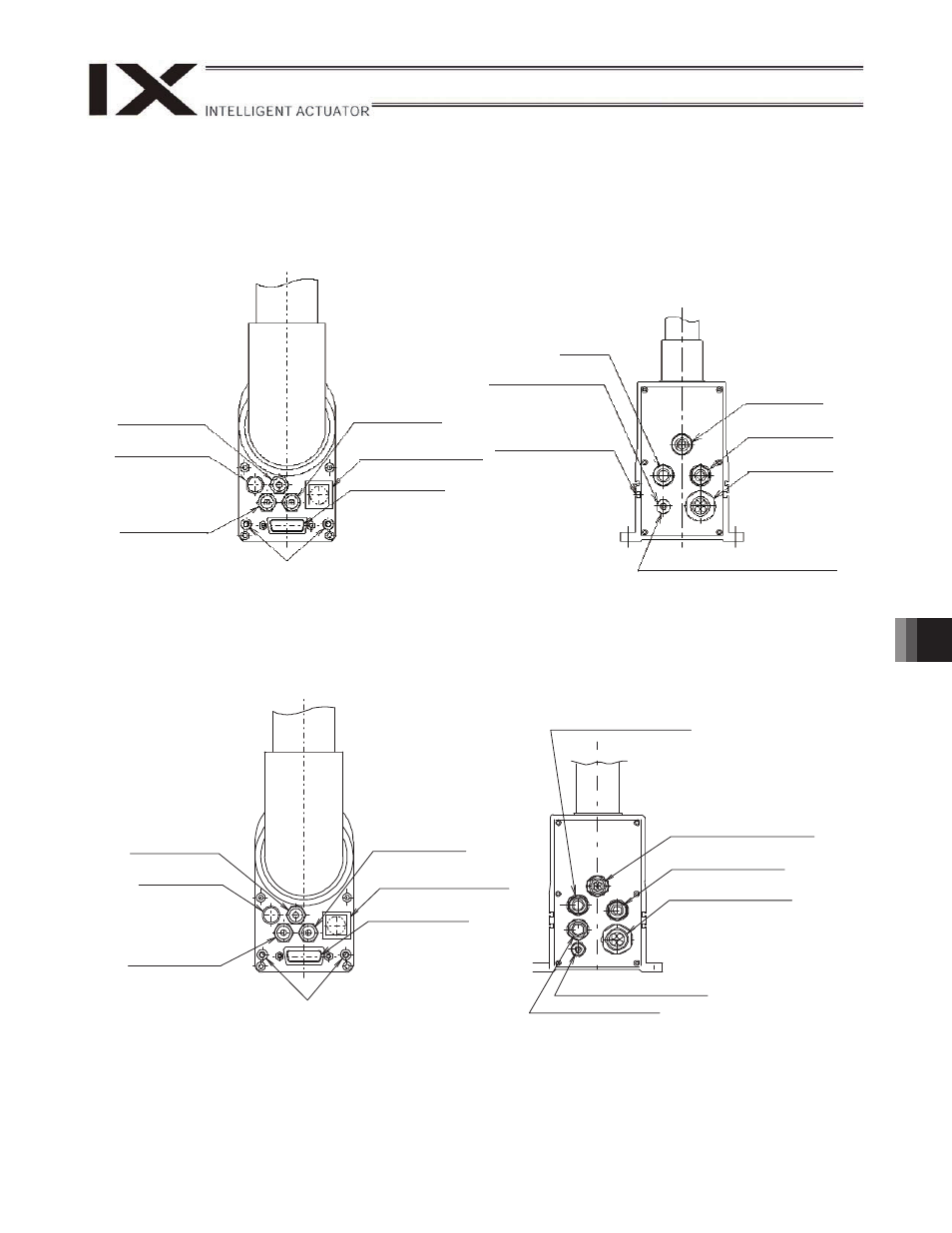

12.5 User Wiring and Piping

The robot comes with standard cables and tubes that the user can use in a desired wiring/piping configuration.

12.5.1 IX-NNN2515H/3515H,

IX-NNC2515H/3515H

IX-NNN2515H/3515H

IX-NNC2515H/3515H

Suction pipe joint
(Applicable tube: Outer
diameter

‡12)

Air tubes (

‡

4 x 3 pcs.)

U cable (outside robot)

PG cable (outside robot)

BK power cable (outside robot)

M cable (outside robot)

Quick joint

‡4

(red)

ALM (indicator)

Quick joint

‡4

(black)

Quick joint

‡4

(white)

BK SW
Brake-release switch

User connector

Spacer for user part installation

Panel

Rear Panel
