APPENDIX I: REMOTE OPERATOR'S PANEL

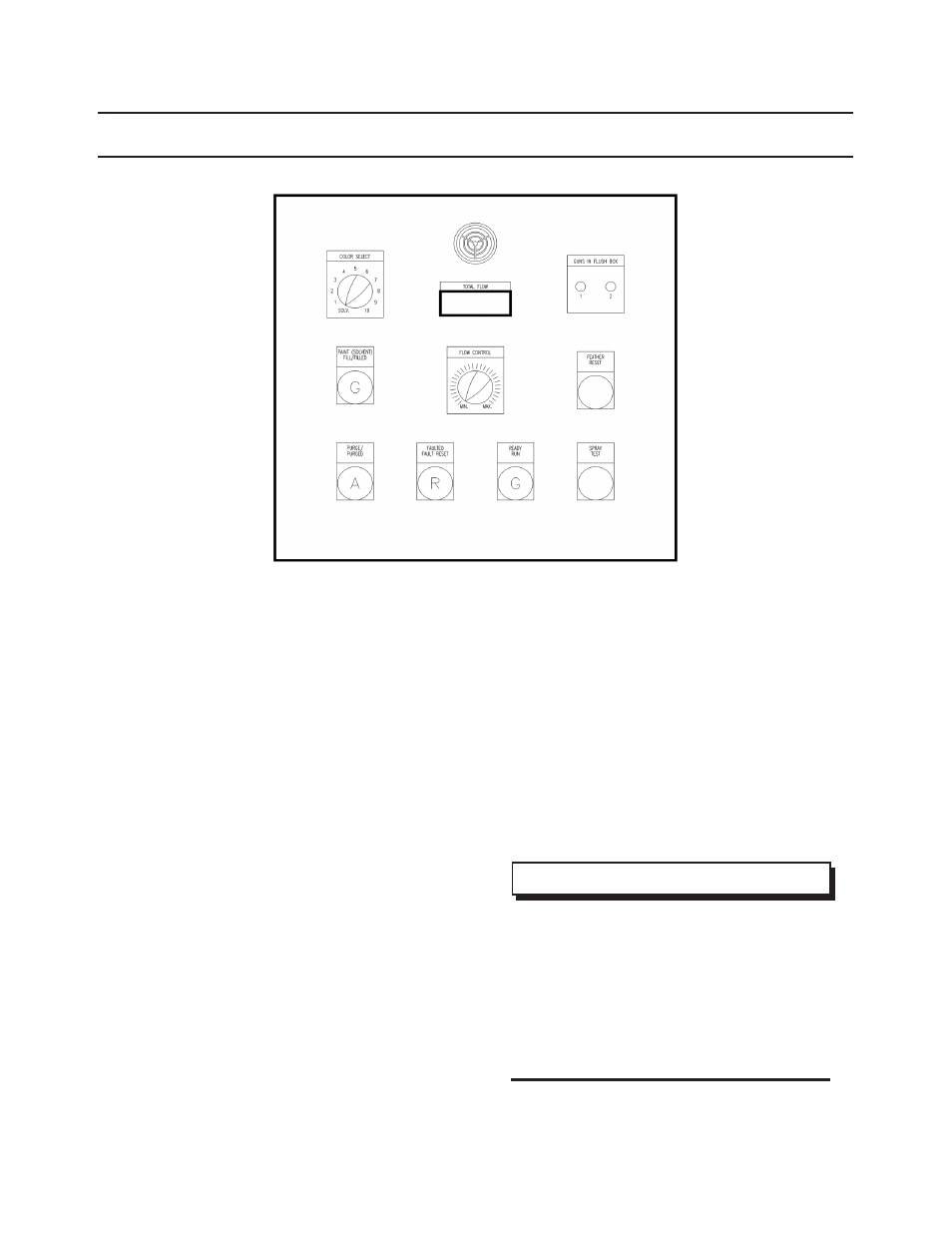

The Remote Operator’s Panel (shown above)
operates in the following manner:
Color Select – This is an eleven position selector
switch that allows the operator to select the next
color to be loaded. If the most counterclockwise
position is selected (Solv.) and the Paint (Solvent)
Fill button is pushed, the normal load sequence
occurs and solvent is loaded into the fluid system
as if it is was a color.
Paint (Solvent) Fill/Filled – This is a green illumi-
nated pushbutton. When pushed, the paint load
sequence runs (as programmed from the “Load”
user interface screen). The green indicator lamp
flashes as the sequence is occurring and stays lit
solid when the sequence has completed, indicating
to the operator that the system is ready.
If there is already a color loaded (ie. one of the color
valve outputs is already on) when this button is
pushed, the system will execute a flush sequence,
followed by a load sequence.
Purge/Purged – This is an amber illuminated
pushbutton. When pushed, a purge sequence is
initiated (as programmed from the “Purge” user
interface screen). While the purge sequence is
occurring, this indicator lamp flashes. It remains
on solid when the purge sequence is complete,
indicating to the operator that the purge is com-
plete. This indicator will be turned off if a “Paint
(Solvent) Fill sequence has been initiated or a
color is loaded.
>
If both the green Paint (Solvent) Fill/
Filled lamp and the amber Purge/Purged
lamps are flashing simultaneously, this
indicates that no sequence has been
downloaded to the color change sequencer
since the last time power was applied to the
system. This can be corrected by loading
a job from the user interface screen.
NOTE
