There are four function buttons defined while
editing alarm configuration data:
F1: Modify - This button toggels an off state
(disabled) to an on state (enabled).
F5: Send to RCS-2 - This button takes the data
displayed on the current screen and sends it to the
interface card where it is then stored in non-volatile
memory. Any changes made to the pa-rameters
on this screen will be lost if the screen is exited
prior to sending it to the interface card using this
button.
F9: Read In File - This button allows the operator
to load alarm configurations from any media.
F10: Save To File - This button allows the oper-
ator to save alarm configurations to any writeable
media. All configurations are saved in a file named
alarmcfg.par.
F7: Digital and Analog I/O
The following 3 screens allow the operator to
examine all digital and analog inputs and outputs
as well as force most of them for debug and trou-
bleshooting purposes.
Note that there are more signals than there is
room for on one screen so operator must scroll
down to see additional outputs.
Option 1 - Gun (Digital) Inputs and Outputs
(For detailed explanations for each of these inputs
and outputs, see the "I/O Descriptions" in the
"Installation" section.)
INPUTS:
Fast Fill
Channel Fill
Feather Set
Run
Halt/Reset
Trigger 1
Motor Amp Enable
Trigger 2
Trigger 3
Trigger 4
Volume Fill
Push Out
OUTPUTS:
Gun Fault
Gun Run
Spray Shutdown
Flush Request
Motor On
Gun Ready

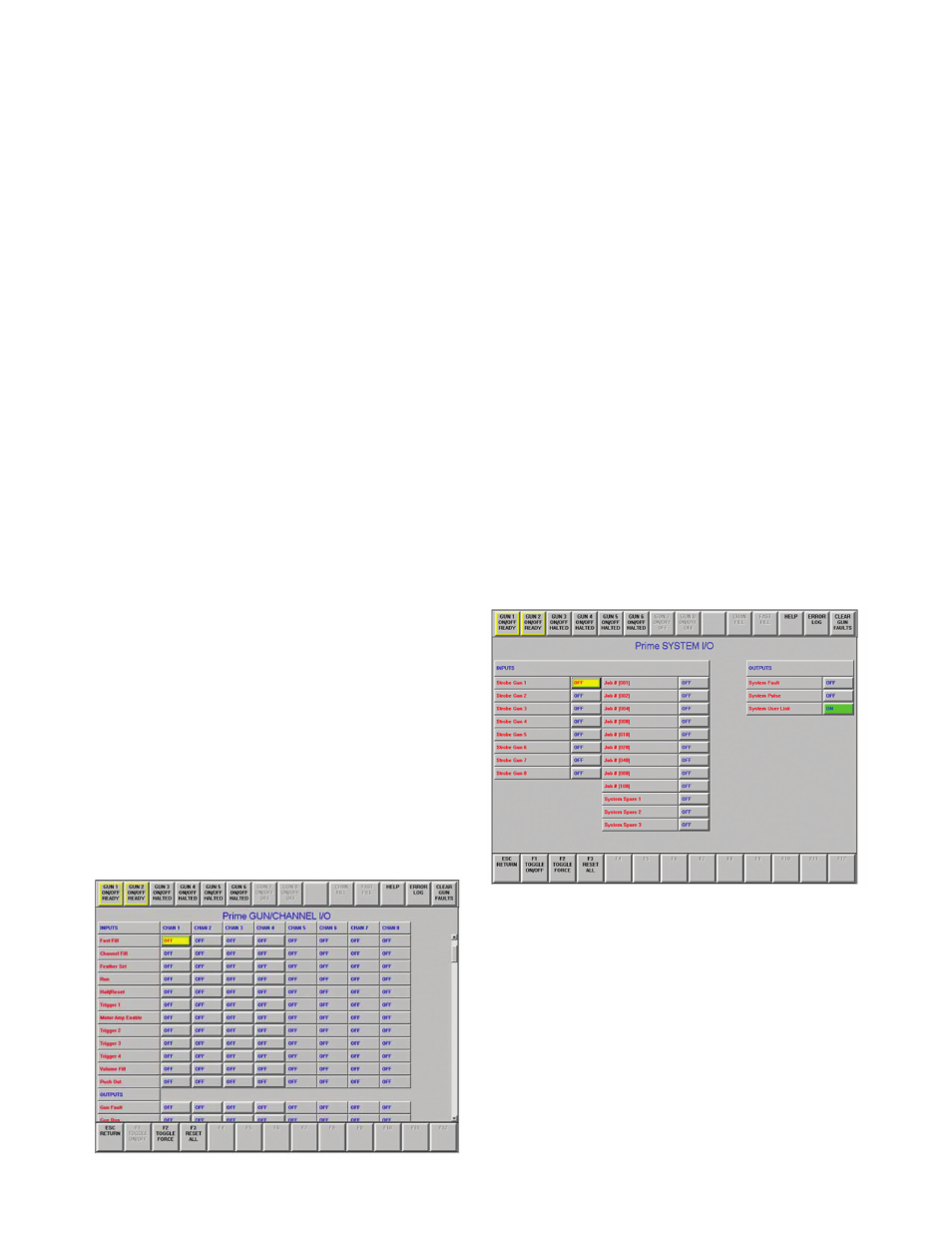

Option 2 - System Inputs and Outputs
