Auto Reset
This allows the user to enable or disable the auto
fault reset feature. While enabled, anytime a gun
fault occurs, it can be automatically reset by simply
turning off the gun trigger signal and turning it back
on. (This allows a handgun operator the ability to
reset a fault without returning to a control panel.)
Note: All trigger signals for that gun must remain
off for at least 0.5 second to cause a reset.
There are six function buttons defined for use from
the Gun Parameters Screen:
F1: Modify - This button allows the user to step
through the possible options for this parameter or
presents a numeric keypad if a numerical value
is required.
F2: Previous Gun – This button opens the
Gun Configuration screen for the previous gun.
Note that any data changed on this screen prior
to pushing this button will be lost if F5 (Send to
RCS-2) is not used.
F3: Next Gun – This button opens the Gun Con-
figuration screen for the next gun. Note that any
data changed on this screen prior to pushing this
button will be lost if F5 (Send to RCS-2) is not used.
F5: Send to RCS-2 - This button takes the data
displayed on the current screen and sends it to the
interface card where it is then stored in non-volatile
memory. Any changes made to the parameters on
this screen will be lost if the screen is exited prior
to sending it to the interface card using this button.
F9: Read in File - This button allows operators
to load the parameters contained on this screen
from a floppy disk, internal flash memory, USB
memory, or CDRom. They are stored in a file
named gunconfig.par.
F10: Save to File -This button allows oeprators to
save the parameters on this screen to a floppy disk,
internal flash memory, USB memory, or CDROM.
They are stored in a file named gun-config.par.
F3: Config Channel
When F3 is selected from the Main Screen, the
operator will be prompted to select the gun num-
ber they wish to examine or edit parameters for
(and if it is a two channel gun whether they wish
to access the master or the slave channel for that

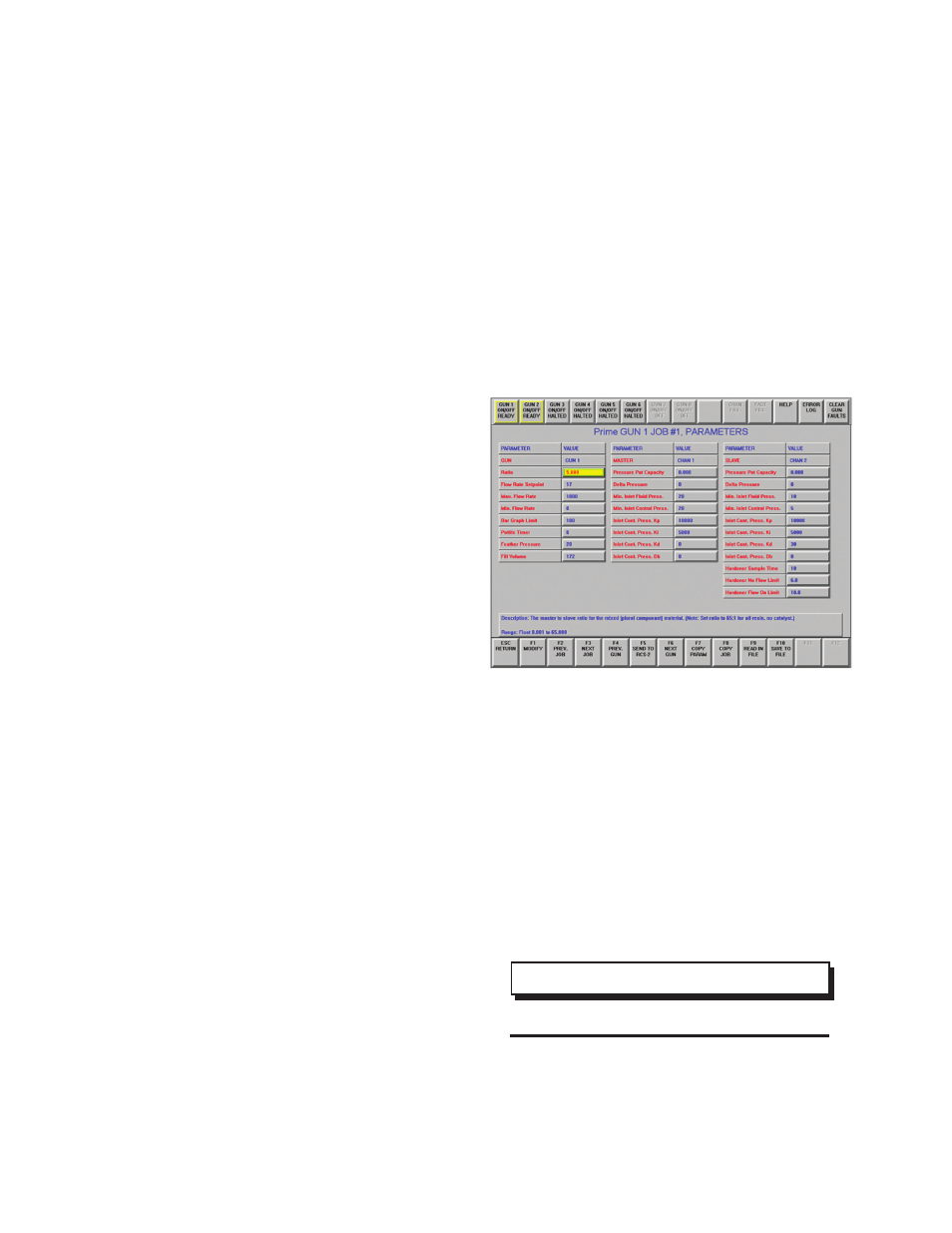

gun). At that time, the following screen will appear:
Fill Enable
Allowable settings for this parameter are: Yes
or No.
This parameter allows the operator to enable or
disable the channel fill button on the top of the
Main Screen. This allows a supervisor to prevent
a gun from being put into channel fill mode without
the operator knowing the password. (This prevents
an applicator that is being used in production from
applying the wrong flow rate or ratio of material.)
>
This setting has no effect on Fast Fill.
NOTE
