Ransburg, Appendix e: channel and gun i/o terminals – Ransburg RCS 2 Ratio Control System User Manual
Page 58

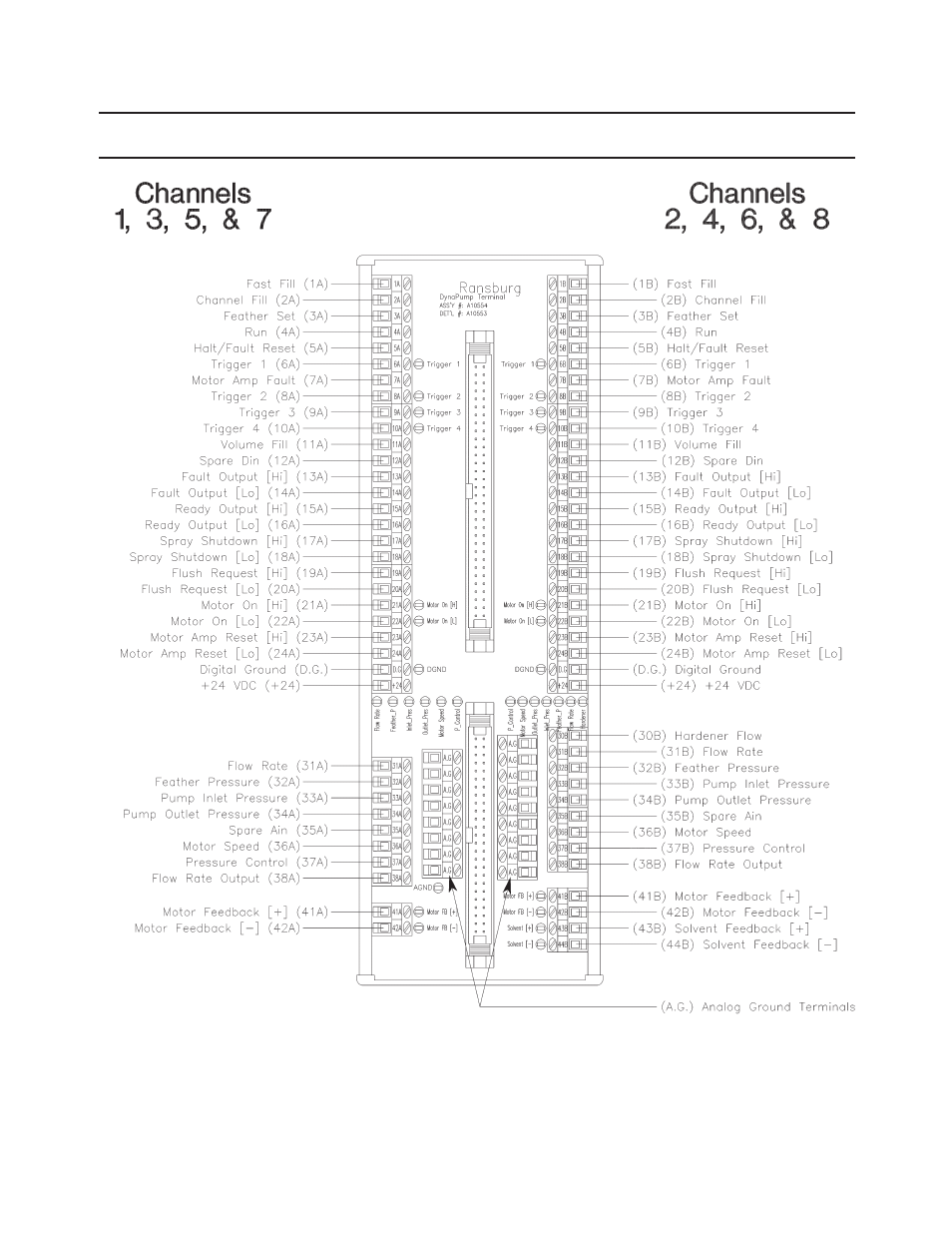

APPENDIX E: CHANNEL AND GUN I/O TERMINALS
Notes:
1. Do not use more than 2 wires in each terminal or an unreliable connection will exist. If more than 2
connections are required, use an external terminal block or a butt splice.
2. Do not supply 24 volts to the +24 terminals on this board! The +24 terminals on this board should only
be used to supply voltage to other terminals on this board that are to be pulled high.
RCS-2 User Manual - Appendix
55
LN-9407-00.2
