22
8175
ENGLISH
INSTALLATION
8175
4-20 mA
24 V=
- +
- + 24 V I/O4 I/O3 I/O2 I/O1 GND2 I2 I1 U1 GND1
24 VDC PE 4-20 mA
0/4-20 mA
0-10 V
- +
4 3 2 1
(*)

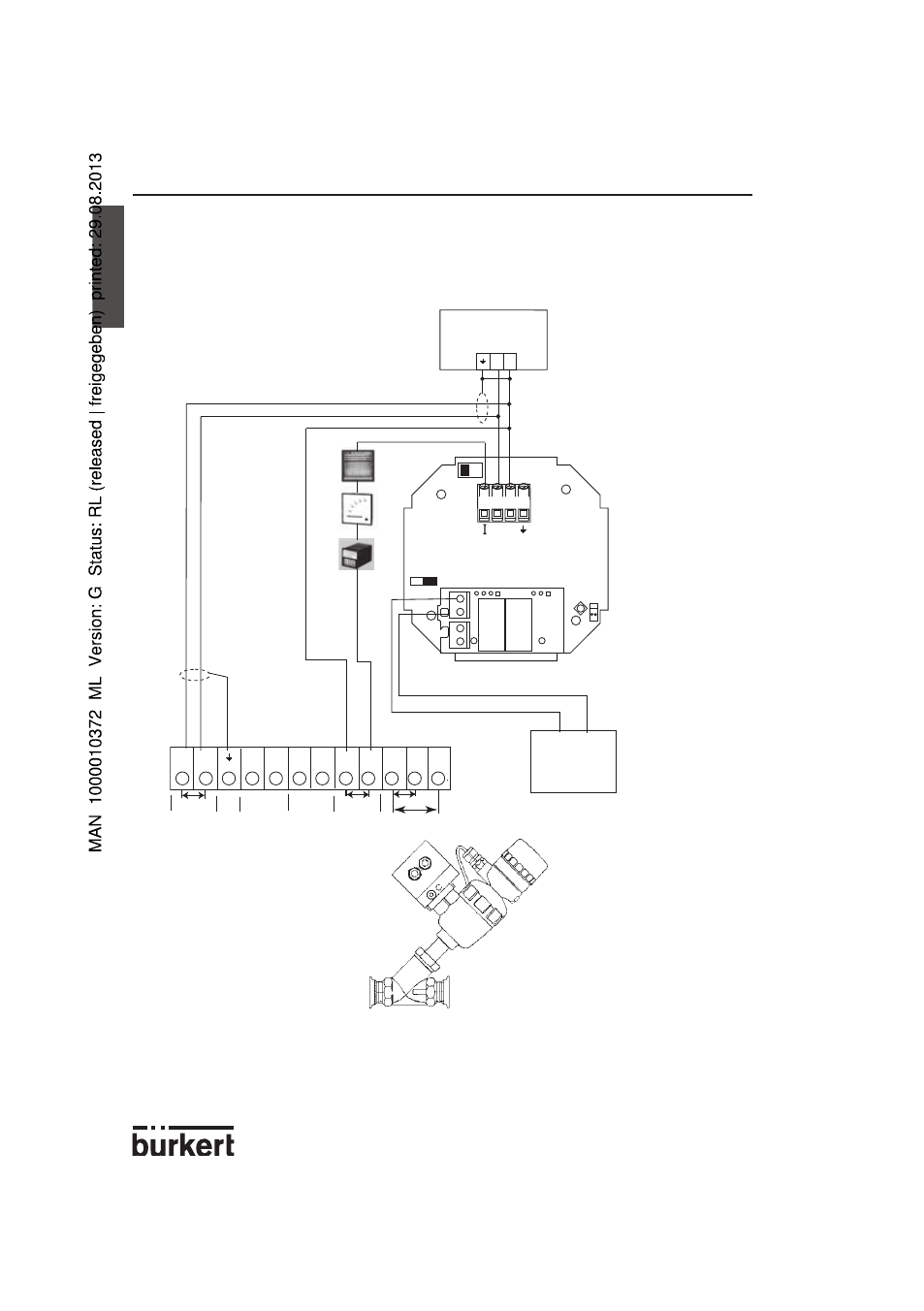

Connection example between the 8175 level transmitter 18-32VDC and the 1067 positio-
ner mounted on an angle seat valve 2632.
Continuous pneumatic level control
PLC
POSITIONER 1067
(*) If direct earthing is impossible,
connect a 100 nF/50 V-condensa-
tor between the negative terminal
of the power supply and the earth.
