10.3 Detectors

10.3.1 Door and window contacts

Door and window contacts monitor the opening of doors
and windows. To activate the entry/exit delay time, at least
one contact should be mounted on the main entrance
door on which a control unit is also mounted.

For transparency reasons, no more than ten door/window
contacts should be used per alarm zone. If the magnet of
the reed contact of the detector is removed, the switch
contact is opened and the alarm zone is interrupted.
Please read the instructions for your door/window
contacts.

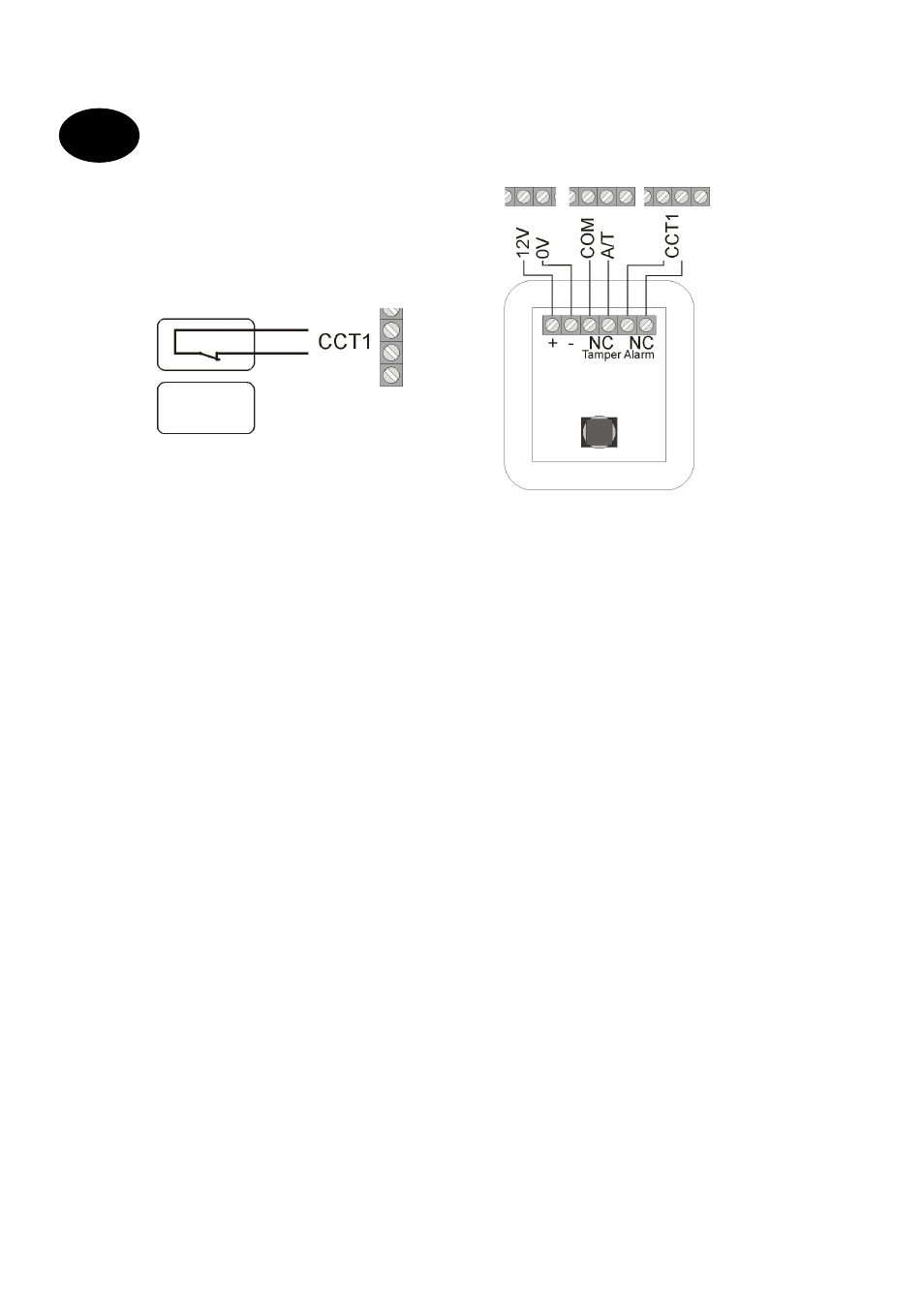

Connection example:








10.3.2 Infrared sensitivity detector

Infrared sensitivity detectors detect the infrared heat
movement of living creatures and must not be used
indoors. For transparency reasons, avoid using motion
sensors with door/window contacts in a zone.

Connection example:

Reed

Magnet
