11

UK

1

Connection of 230V mains supply with primary fuse (T 250V 250mA).

2

230V AC / 12V DC transformer.

3

Terminal connector strip for siren, flashlight, programmable output, loudspeaker, 12V DC power supply
and alarm zones.

4

Tamper contact of alarm panel housing.

5

Terminal connector strip for standby battery.

6

Terminal connector strip for control units.

7

Terminal connector strip for extra transistor outputs or the optional relay module.

8

Room for 12V standby battery (7Ah) and cabling.



Note for 230 V connection

Do not switch on the mains power yet!

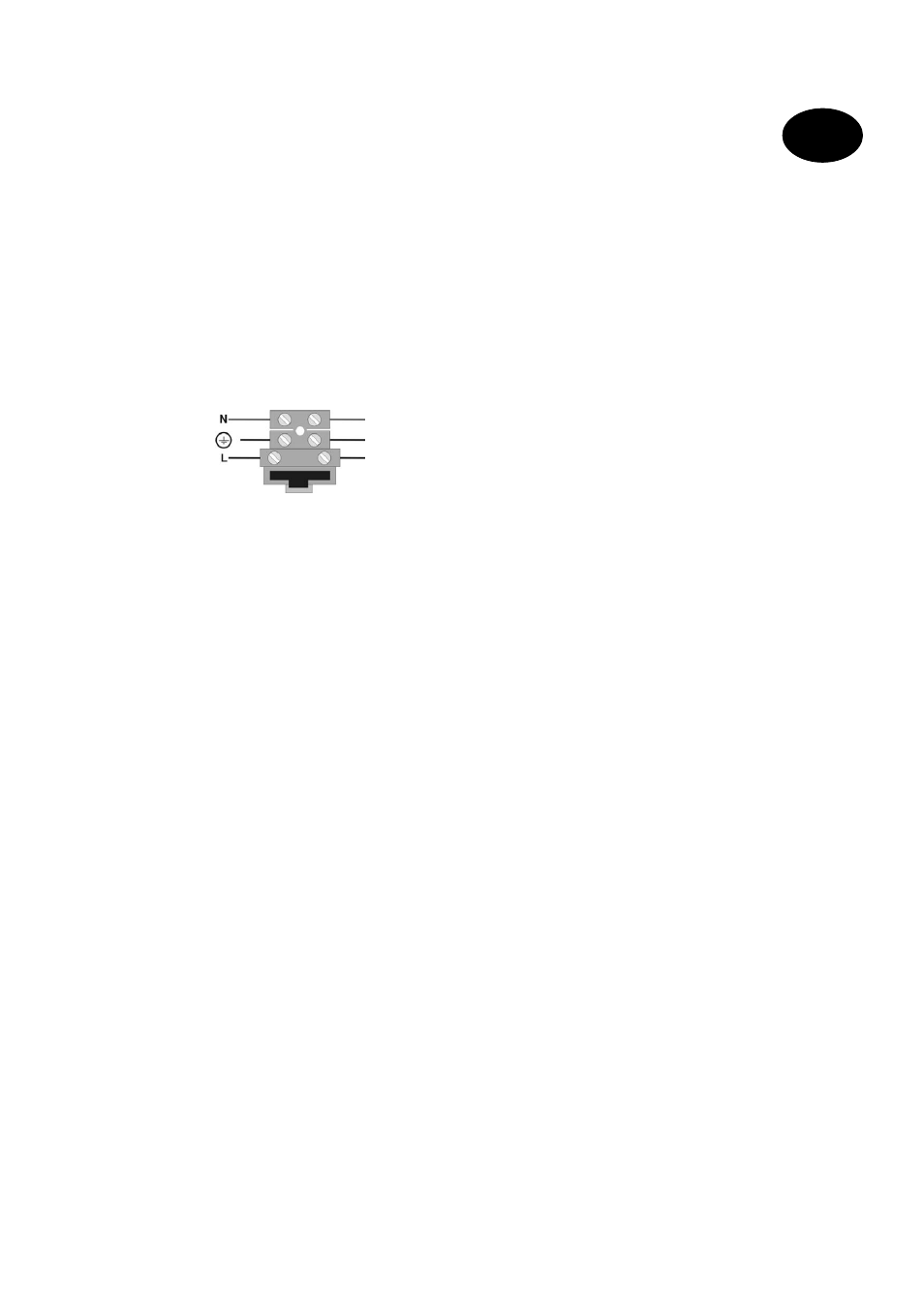

Connect the mains power to the terminal connector strip as follows:

n

Phase (black)

ground (green/yellow)
