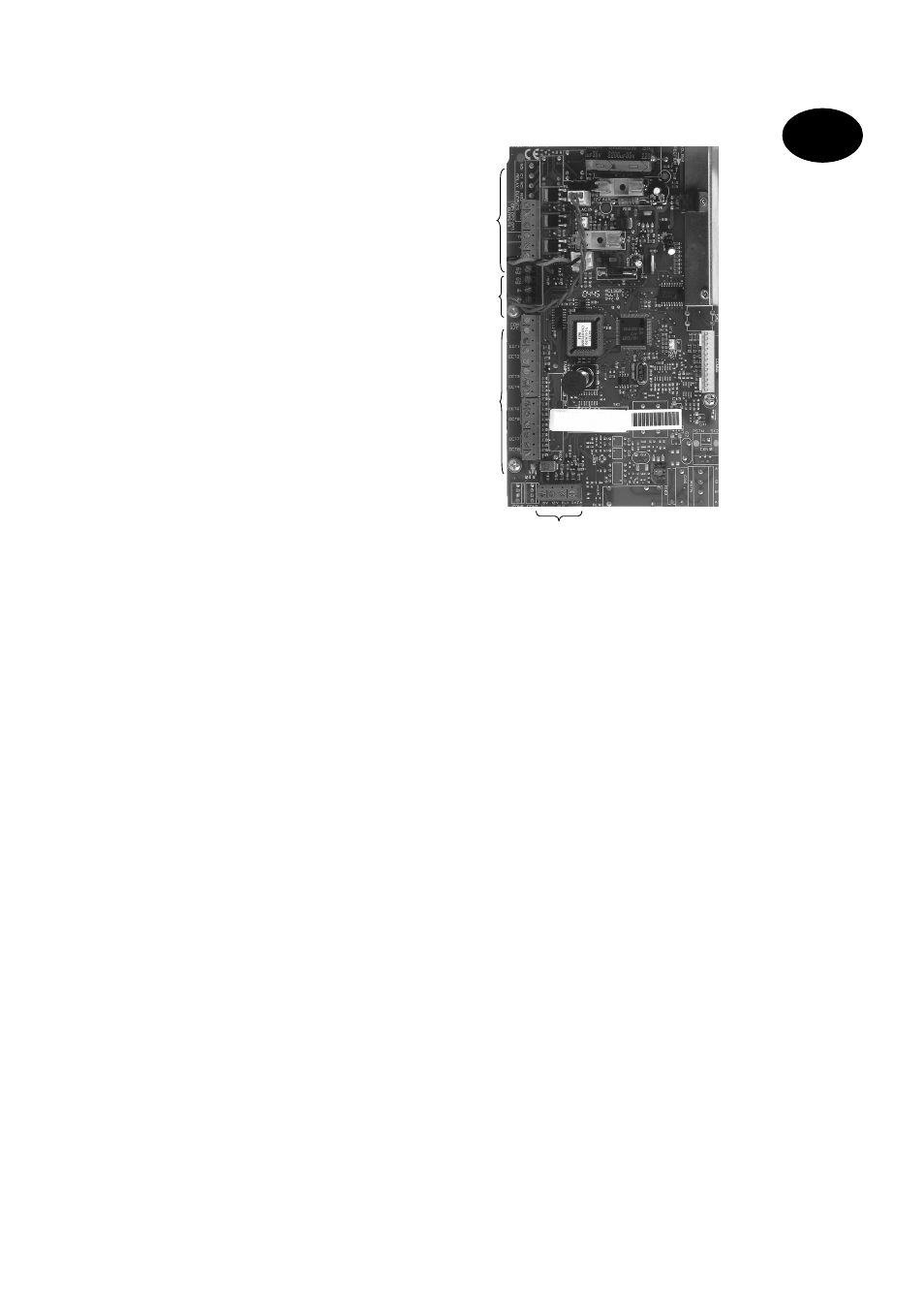

10 Notes on wiring

10.1 Alarm

centre

Terminal connector strip for tamper and alarm

zones.


COM A/T: Connections for detector tampering

CCT 1…8: Connections for alarm zones 1–8

Terminal connector strip for 12V DC power supply of
external equipment (e.g., detectors)

AUX:

+12V permanent voltage for detectors

0V:

0V ground

Terminal connector strip for loudspeaker, progr. outputs and
siren tampering.

TR: Sabotage

inputs

+ / LS:

Contact for optional 16 Ohm
loudspeaker

OP1, OP2, OP3:

Contact for Open Collector Transistor
output (e.g. as trigger signal of dialler)


Terminal strip for control units


12V:

12V+ permanent voltage

0V: 0V

ground

Data: Databus
Clock:

Databus



2

3

4

1

2

1

3

4
